990194 - Simplicity 26" Weed Cutter Weed Cutter Group (359601) Parts Diagram

26" Weed Cutter

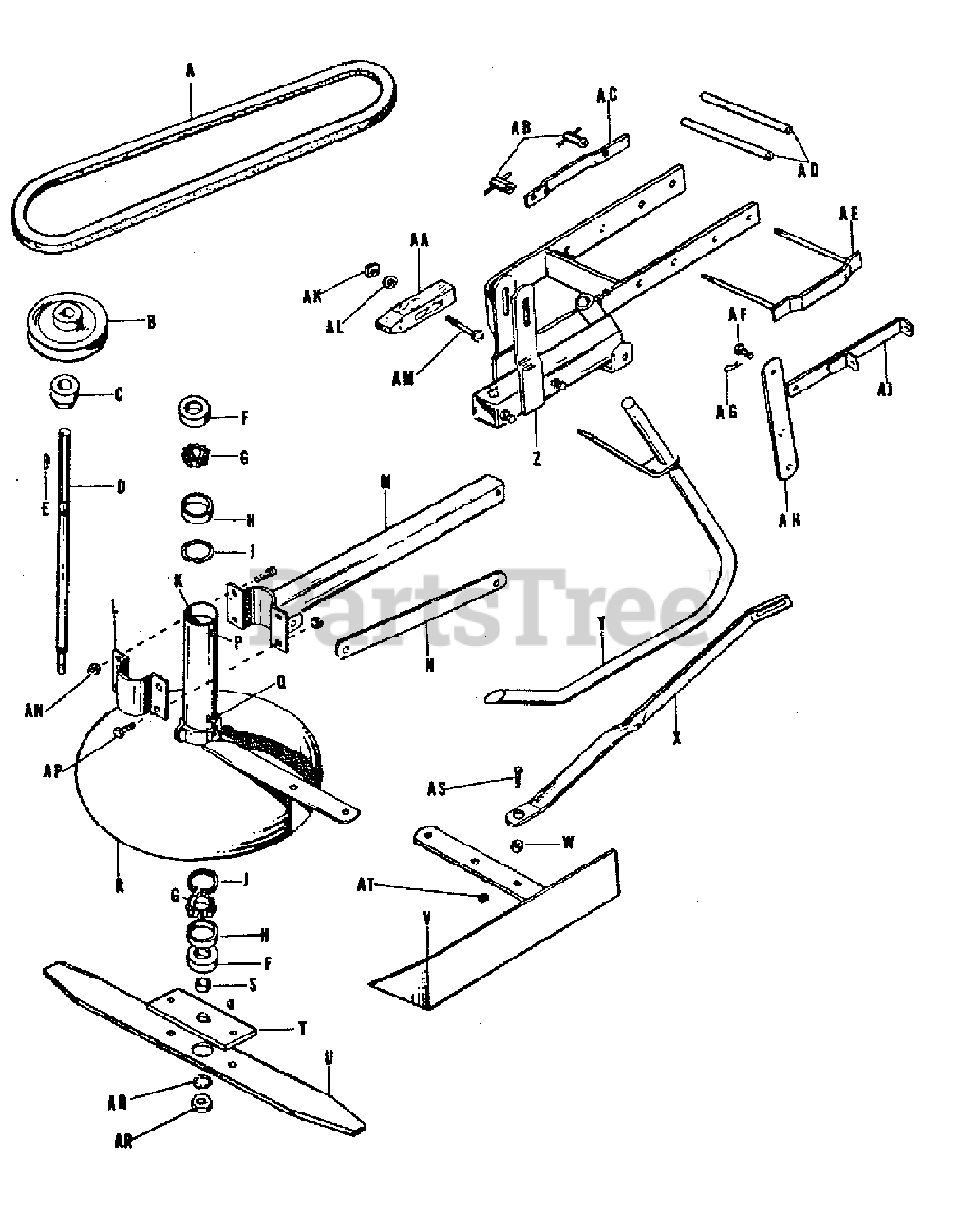

Weed Cutter Group (359601) Parts Diagram

  • Title

A

Simplicity 8091017

V-BELT, 50"

$

$

Not available

B

Simplicity 8091010

PULLEY, Arbor

$

$

Not available

C

Simplicity 8131027

COLLAR, Arbor

$

$

Not available

D

Simplicity 8092002

ARBOR

$

$

Not available

E

Simplicity 8111037

ARBOR PULLEY KIT

$

$

Not available

F

Simplicity 8061054

SEAL, Oil

$

$

Not available

G

Simplicity 8061094

BEARING, Cone

$

$

Not available

H

Simplicity 8061095

BEARING, Cup

$

$

Not available

J

Simplicity 8061052

RING, Retaining

$

$

Not available

K

Simplicity 8092003

BEARING HOUSING, Arbor

$

$

Not available

L

Simplicity 8141001

CLAMP, Bearing Housing

$

$

Not available

M

Simplicity 8092501

TUBE ASSEMBLY, Clamp

$

$

Not available

N

Simplicity 8091013

CLUTCH, Lever Link

$

$

Not available

P

Simplicity 2727001

FITTING, Grease

$

$

Not available

Q

Simplicity 2727002

FITTING, Grease

$

$

Not available

R

Simplicity 8092503

DEFLECTOR ASSEMBLY

$

$

Not available

S

Simplicity 8131028

SPACER, Arbor

$

$

Not available

T

Simplicity 8131007

FLANGE, Arbor

$

$

Not available

U

Simplicity 8092004

BLADE (26")

$

$

Not available

U

Simplicity 8142004

BLADE (20")

$

$

Not available

V

Simplicity 8092504

GUARD ASSEMBLY, Chain

$

$

Not available

W

Simplicity 1729266SM

SPACER, Brace

$17.99

$

Usually ships in 2-12 days

0

X

Simplicity 8092007

BRACE, Deflector

$

$

Not available

Y

Simplicity 8092502

SHOE ASSEMBLY

$

$

Not available

Z

Simplicity 8093501

PUSH ARM ASSEMBLY

$

$

Not available

AA

Simplicity 8091008

SHOE, Brake

$

$

Not available

AB

Simplicity 8161041

WING NUT

$0.99

$

Usually ships in 2-12 days

0

AC

Simplicity 103001

HITCH, Side Plate

$

$

Not available

AD

Simplicity 8161175

SPACER

$

$

Not available

AE

Simplicity 8162501

CLAMP ASSEMBLY, Hitch

$

$

Not available

AF

Simplicity 8091020

BOLT, Clutch Lever

$

$

Not available

AG

Simplicity 1918196SM

SPRING, Clip
(Superseded to 5025210YP)

$3.99

$

In Stock, only 2 left!

0

AH

Simplicity 110004

LEVER, Clutch

$

$

Not available

AJ

Simplicity 1729265SM

GUIDE ASSEMBLY, Clutch Rod

$41.99

$

Usually ships in 2-12 days

0

AK

Simplicity 2717003

NUT, Full Hex, 3/8"-16 NC

$

$

Not available

AL

Simplicity 2719001

WASHER, Plain, 3/8"

$

$

Not available

AM

Simplicity 702001

CARRIAGE BOLT, 3/8"-16 NC x 2" LG

$

$

Not available

AN

Simplicity 2717013

NUT, Hex Jam, 3/8"-16 NC

$

$

Not available

AP

Simplicity 2705004

CAPSCREW, 3/8"-16 NC x 3/4" LG

$

$

Not available

AQ

Simplicity 2721503

LOCKWASHER, Internal, 3/8"

$

$

Not available

AR

Simplicity 2717004

NUT, Hex Full, 5/8"-11 NC

$

$

Not available

AS

Simplicity 2705007

CAPSCREW, 5/16"-18 NC x 2" LG

$

$

Not available

AT

Simplicity 2717001

NUT, Hex Full, 5/16"-18 NC

$

$

Not available
