990205 - Simplicity Cultivator For Use With Two Wheel Tractors Cultivator Group (3604I01) Parts Diagram

Cultivator For Use With Two Wheel Tractors

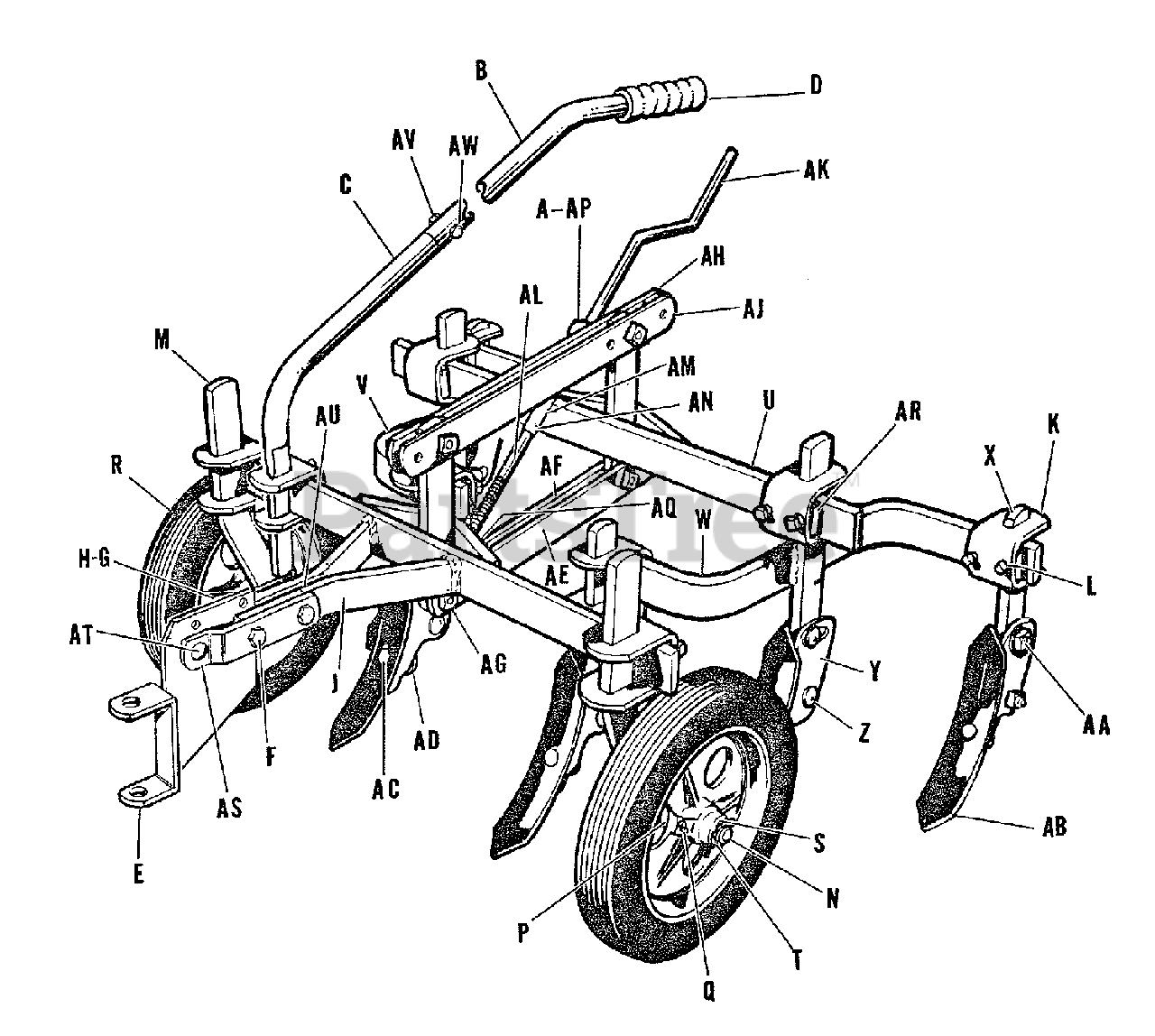

Cultivator Group (3604I01) Parts Diagram

  • Title

A

Simplicity 2722006

PIN, Cotter, 1/8" Diameter x 1" LG

$

$

Not available

B

Simplicity 117005

HANDLE, Control, Upper

$

$

Not available

C

Simplicity 117006

HANDLE, Control, Lower

$

$

Not available

D

Simplicity 2153043

GRIP, Handle

$

$

Not available

E

Simplicity 117011

END ASSEMBLY, Drawbar

$

$

Not available

F

Simplicity 702006

BOLT, Carriage, 3/8"-16 NC x 1-3/4" LG

$

$

Not available

G

Simplicity 2720002

WASHER, Lock, 3/8"

$

$

Not available

H

Simplicity 2717003

NUT, Hex, Full, 3/8"-16 NC

$

$

Not available

J

Simplicity 117012

DRAWBAR ASSEMBLY

$

$

Not available

K

Simplicity 8271023

CLAMP, Shank

$

$

Not available

L

Simplicity 2713004

SCREW, Set, Cup Point, Square Head, 3/8"-16 NC x 1" LG

$

$

Not available

M

Simplicity 112057

STANDARD, Wheel

$

$

Not available

N

Simplicity 112058

SPINDLE, Wheel

$

$

Not available

P

Simplicity 2717018

NUT, Ham, Hex, 5/8"-11 NC

$

$

Not available

Q

Simplicity 2727002

FITTING, Grease

$

$

Not available

R

Simplicity 8271506

WHEEL, Complete

$

$

Not available

S

Simplicity 2860164SM

WASHER

$4.49

$

In Stock, only 3 left!

0

T

Simplicity 2722006

PIN, Cotter, 1/8" Diameter x 1" LG

$

$

Not available

U

Simplicity 8272502

TOOL BAR ASSEMBLY

$

$

Not available

V

Simplicity 7273503

FRAME ASSEMBLY, Tool, R.H.

$

$

Not available

W

Simplicity 7273504

FRAME ASSEMBLY, Tool, L.H.

$

$

Not available

X

Simplicity 7271018

STANDARD, Tool, Short

$

$

Not available

Y

Simplicity 7271503

TOOL HOLDER ASSEMBLY

$

$

Not available

Z

Simplicity 2703002

BOLT, Carriage, 3/8"-16 NC x 1-1/4" LG

$

$

Not available

AA

Simplicity 2719001

WASHER, Plain, 3/8"

$

$

Not available

AB

Simplicity 8271014

STEEL, Cultivator

$

$

Not available

AC

Simplicity 704001

BOLT, Plow, 3/8-16 x 2-1/4"

$4.49

$

In Stock, only 2 left!

0

AD

Simplicity 2719001

WASHER, Plain, 3/8"

$

$

Not available

AE

Simplicity 8272002

BAR, Parrallel, R.H.

$

$

Not available

AF

Simplicity 7272003

BAR, Parrallel, L.H.

$

$

Not available

AG

Simplicity 2705016

SCREW, Cap, Hex, 3/8"-16 NC x 1-1/4" LG

$

$

Not available

AH

Simplicity 117007

BAR, Parallel, R.H.

$

$

Not available

AJ

Simplicity 117008

BAR, Parallel, L.H.

$

$

Not available

AK

Simplicity 8272008

SCREW, Upper

$

$

Not available

AL

Simplicity 8271004

SCREW, Lower

$

$

Not available

AM

Simplicity 8271017

COUPLING, Screw

$

$

Not available

AN

Simplicity 724003

RIVET, Round Head

$

$

Not available

AP

Simplicity 8271021

NUT, Adjusting, Upper

$

$

Not available

AQ

Simplicity 8271022

NUT, Adjusting, Lower

$

$

Not available

AR

Simplicity 8201073

NUT, Special

$

$

Not available

AS

Simplicity 117014

EXTENSION, Draw Bar

$

$

Not available

AT

Simplicity 2702004

BOLT, Carriage, 3/8"-16 NC x 1-1/4" LG

$

$

Not available

AU

Simplicity 119045

WASHER

$

$

Not available

AV

Simplicity 2717011

NUT, Hex, Jam, 5/16-18 NC

$

$

Not available

AW

Simplicity 2705019

CAPSCREW, Hex, Head, 5/16-18 NC x 1-1/4" LG

$

$

Not available
