990207 - Simplicity 32" Mower Deck for Landlord Model 725 Mowers 32" ROTARY MOWER Parts Diagram

32" Mower Deck for Landlord Model 725 Mowers

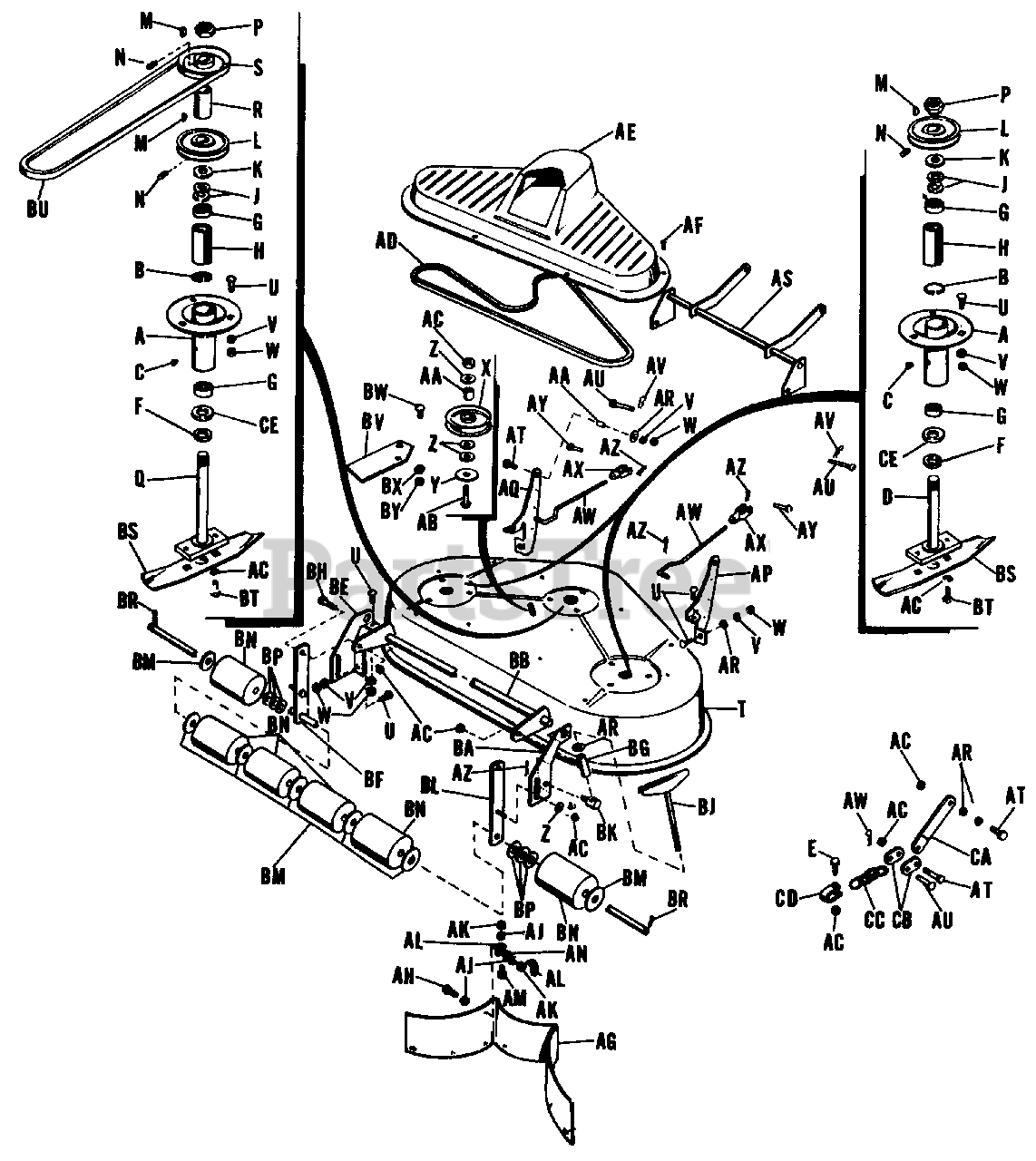

32" ROTARY MOWER Parts Diagram

  • Title

A

Simplicity 2108203

Tube Assembly, Arbor

$

$

Not available

B

Simplicity 2108134

Ring, Backing

$

$

Not available

C

Simplicity 726001

Plug, Pine

$

$

Not available

D

Simplicity 2108250SM

Arbor, Assembly

$115.99

$

Usually ships in 2-12 days

0

E

Simplicity 2705009

Screw, Cap, Hex., 3/8"-16 NC x 1 1/2" lg.

$

$

Not available

F

Simplicity 2108181

Washer

$

$

Not available

G

Simplicity 2108202SM

Bearing, Single Row, Radial

$11.99

$

In Stock, Qty 20+

0

H

Snapper 2108201SM

Spacer

$19.99

$

In Stock, only 2 left!

0

J

Simplicity 2108181

Washer

$

$

Not available

K

Simplicity 2108139

Flinger

$

$

Not available

L

Simplicity 2108142

Pulley

$

$

Not available

M

Simplicity 2725006

Key, Woodruff #61 3/16" x 5/8" dia.

$

$

Not available

N

Simplicity 2713504

Screw, Set, Cup Point Socket Head, 5/16"-18 NC x 3/8" lg.

$

$

Not available

P

Simplicity 2717517

Nut, Hex., Jam, 3/4"-16 NF

$

$

Not available

Q

Simplicity 2108251

Arbor Assembly Drive

$

$

Not available

R

Simplicity 108145

Spacer

$

$

Not available

S

Simplicity 2108246SM

Pulley, Cross Drive

$76.99

$

Usually ships in 2-12 days

0

T

Simplicity 2108147

Housing

$

$

Not available

U

Simplicity 2703004

Bolt, Carriage, 3/8"-16 NC x 3/4" lg. Short Square Neck

$

$

Not available

V

Simplicity 2720002

Washer, Lock, 3/8" Std.

$

$

Not available

W

Simplicity 2717003

Nut, Hex., Full, 3/8"-16 NC

$

$

Not available

X

Simplicity 2108149

Pulley, Idler

$

$

Not available

Y

Simplicity 108150

Washer

$

$

Not available

Z

Simplicity 2719002

Washer, Plain, 5/16" Std.

$

$

Not available

AA

Simplicity 2154177SM

Spacer

$39.99

$

In Stock, only 4 left!

0

AB

Simplicity 2703002

Bolt, Carriage, 3/8"-16 NC x 1 1/4" lg. Short Square Neck

$

$

Not available

AC

Simplicity 2720002

Washer, Lock, 3/8" Std.

$

$

Not available

AD

Simplicity 2108151

Belt, "V"

$

$

Not available

AE

Simplicity 108152

Cover, Housing

$

$

Not available

AF

Simplicity 2714007

Screw, Recessed Hex. Head Self Tap, 1/4"-20 NC x 3/8" lg.

$

$

Not available

AG

Simplicity 108187

Baffle, Mower

$

$

Not available

AH

Simplicity 2714012

Screw, Recessed Hex. Head Self Tap, 1/4" "-20 NC x 7/8" " lg.

$

$

Not available

AJ

Simplicity 2720003

Washer, Lock 1/4 " Std.

$

$

Not available

AK

Simplicity 2717005

Nut, Hex., Full, I/4 "-20 NC

$

$

Not available

AL

Simplicity 2108186SM

Clip, Baffle

$12.99

$

In Stock, only 1 left!

0

AM

Simplicity 2715018

Screw, Cap, Hex., 1/4"-20 NC x 5/8" lg.

$

$

Not available

AN

Simplicity 2719006

Washer, Plain, 1/4" Std.

$

$

Not available

AP

Simplicity 108153

Bracket, Front, RH

$

$

Not available

AQ

Simplicity 108154

Bracket, Front, LH

$

$

Not available

AR

Simplicity 2719001

Washer, Plain 3/8" Std.

$

$

Not available

AS

Simplicity 108194

Hitch Assembly, Mower

$

$

Not available

AT

Simplicity 2705005

Screw, Cap, Hex., 3/8"-16 NC x 1" lg.

$

$

Not available

AU

Simplicity 1708298SM

Pin, 3/8" dia. x 1" lg., Round Head Rivet

$

$

Not available

AV

Simplicity 1918196SM

Clip, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, only 3 left!

0

AW

Simplicity 108156

Rod, Height Adjustment

$

$

Not available

AX

Simplicity 2108157SM

Clevis, Adjustment

$24.99

$

Usually ships in 2-12 days

0

AY

Simplicity 2108158

Pin Clevis

$

$

Not available

AZ

Simplicity 2722001

Pin Cotter, 3/32" dia. x 3/4" lg. w/Ext. Prong

$

$

Not available

BA

Simplicity 108159

Bracket, Roller, RH

$

$

Not available

BB

Simplicity 108160

Lever Assembly, Rear

$

$

Not available

BE

Simplicity 108163

Bracket, Roller, LH

$

$

Not available

BF

Simplicity 108254

Bar and Shaft Assembly

$

$

Not available

BG

Simplicity 2108166SM

Socket Assembly, Crank

$30.99

$

Usually ships in 2-12 days

0

BH

Simplicity 2705031

Screw, Cap, Hex., 3/8"-16 NC x 7/8" lg.

$

$

Not available

BJ

Simplicity 2108169

Screw Assembly, Adjustment

$

$

Not available

BK

Simplicity 108172

Pivot

$

$

Not available

BL

Simplicity 2108164

Bar Assembly, Roller

$

$

Not available

BM

Simplicity 2116001

Washer, # 12 Ga. (.109") x 1 7/8" x 2" lg.

$

$

Not available

BN

Simplicity 2108178

Roller

$

$

Not available

BP

Simplicity 2860164SM

Washer (as required)

$4.49

$

In Stock, Qty 5

0

BR

Simplicity 2722011

Pin, Cotter, 3/16" x 1" lg., w/Ext. Prong

$

$

Not available

BS

Simplicity 2108297ASM

Blade

$23.99

$

Usually ships in 2-12 days

0

BT

Simplicity 2715024

Screw Cap, 3/8"-16 x 5/8" lg.

$

$

Not available

BU

Simplicity 2108248SM

Belt, "V", Cross Drive

$31.99

$

In Stock, only 1 left!

0

BV

Simplicity 108193

Deflector

$

$

Not available

BW

Simplicity 2703005

Bolt, Carriage, 5/16"-18 NC x 3/4" lg., Short Square Neck

$

$

Not available

BX

Simplicity 2720001

Washer, Locks 5/16" Std.

$

$

Not available

BY

Simplicity 2717001

Nut, Hex., Full, 5/16"-18 NC

$

$

Not available

CA

Simplicity 108198

Lever, Mower Lift

$

$

Not available

CB

Simplicity 108199

Link Mower Lift

$

$

Not available

CC

Simplicity 2107031SM

Chain
(Superseded to 2107031ASM)

$7.49

$

In Stock, only 2 left!

0

CD

Simplicity 108200

Clip, Chain

$

$

Not available

CE

Simplicity 2108257SM

Washer

$6.99

$

In Stock, only 2 left!

0
