990210 - Simplicity 46" Sickle Bar Frame Group (3364I03) Parts Diagram

46" Sickle Bar

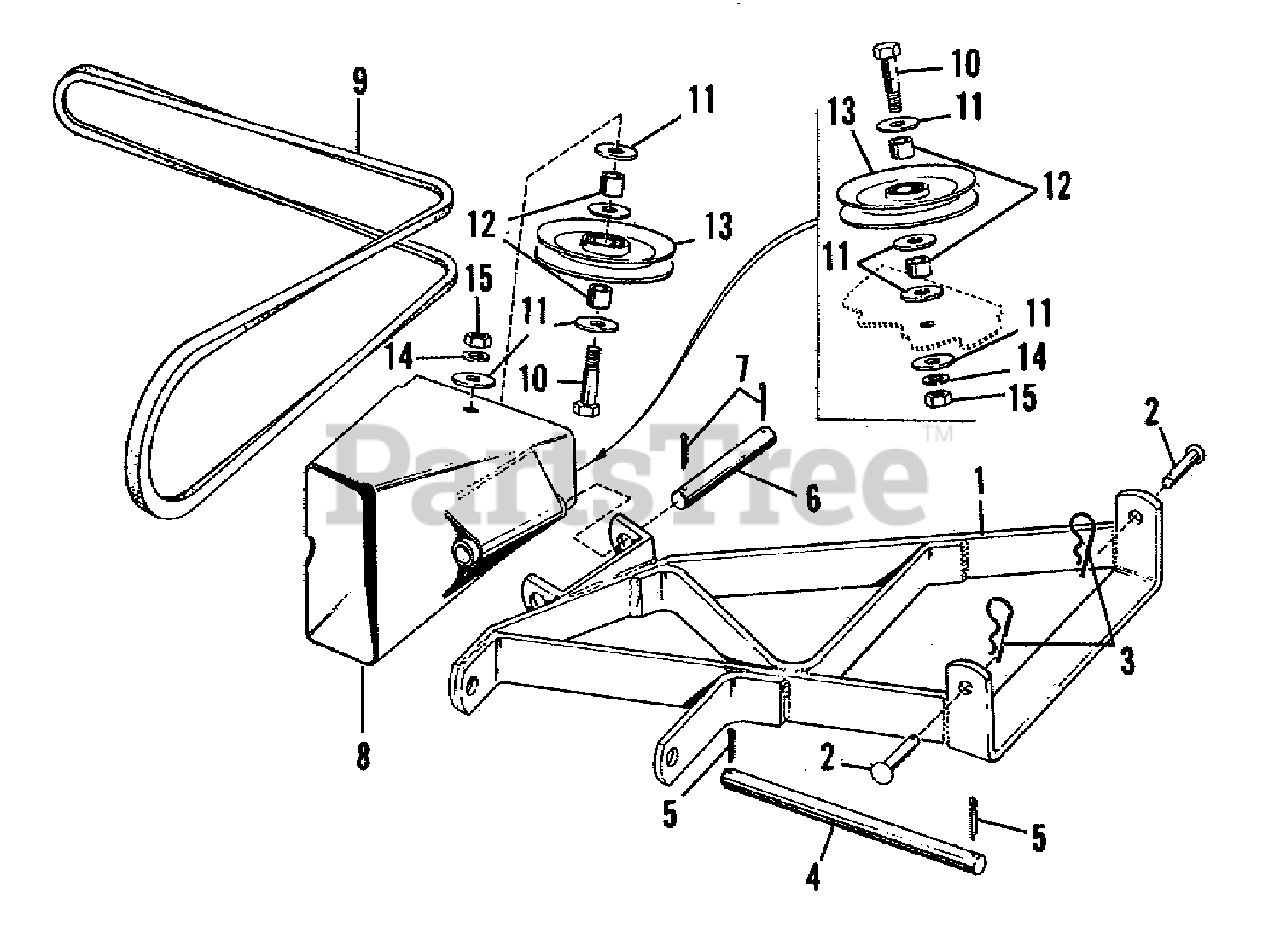

Frame Group (3364I03) Parts Diagram

  • Title

1

Simplicity 101008

FRAME ASSEMBLY

$

$

Not available

2

Simplicity 2118053SM

PIN
(Superseded to 704241)

$9.99

$

Usually ships in 2-12 days

0

3

Simplicity 1918196SM

CLIP, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, only 2 left!

0

4

Simplicity 101015

SHAFT, Hinge

$

$

Not available

5

Simplicity 2722011

PIN, Cotter, 3/16" x 1"

$

$

Not available

6

Simplicity 101059

SHAFT, Idler Pulley Bracket

$

$

Not available

7

Simplicity 2722011

PIN, Cotter, 3/16" x 1"

$

$

Not available

8

Simplicity 101054

GUARD ASSEMBLY, Belt

$

$

Not available

9

Simplicity 2101007

BELT, "V"

$

$

Not available

10

Simplicity 2705010

CAPSCRW, Hex Head, 3/8"-16 x 1-3/4" Lg.

$

$

Not available

11

Simplicity 2719002

WASHER, Plain, 5/16"

$

$

Not available

12

Simplicity 2154177SM

SPACER

$39.99

$

In Stock, only 4 left!

0

13

Simplicity 2101060

PULLEY, Idler (w/Ball Bearing)

$

$

Not available

14

Simplicity 2720002

WASHER, Lock, 3/8"

$

$

Not available

15

Simplicity 2717003

NUT, Hex, Full, 3/8"-16

$

$

Not available
