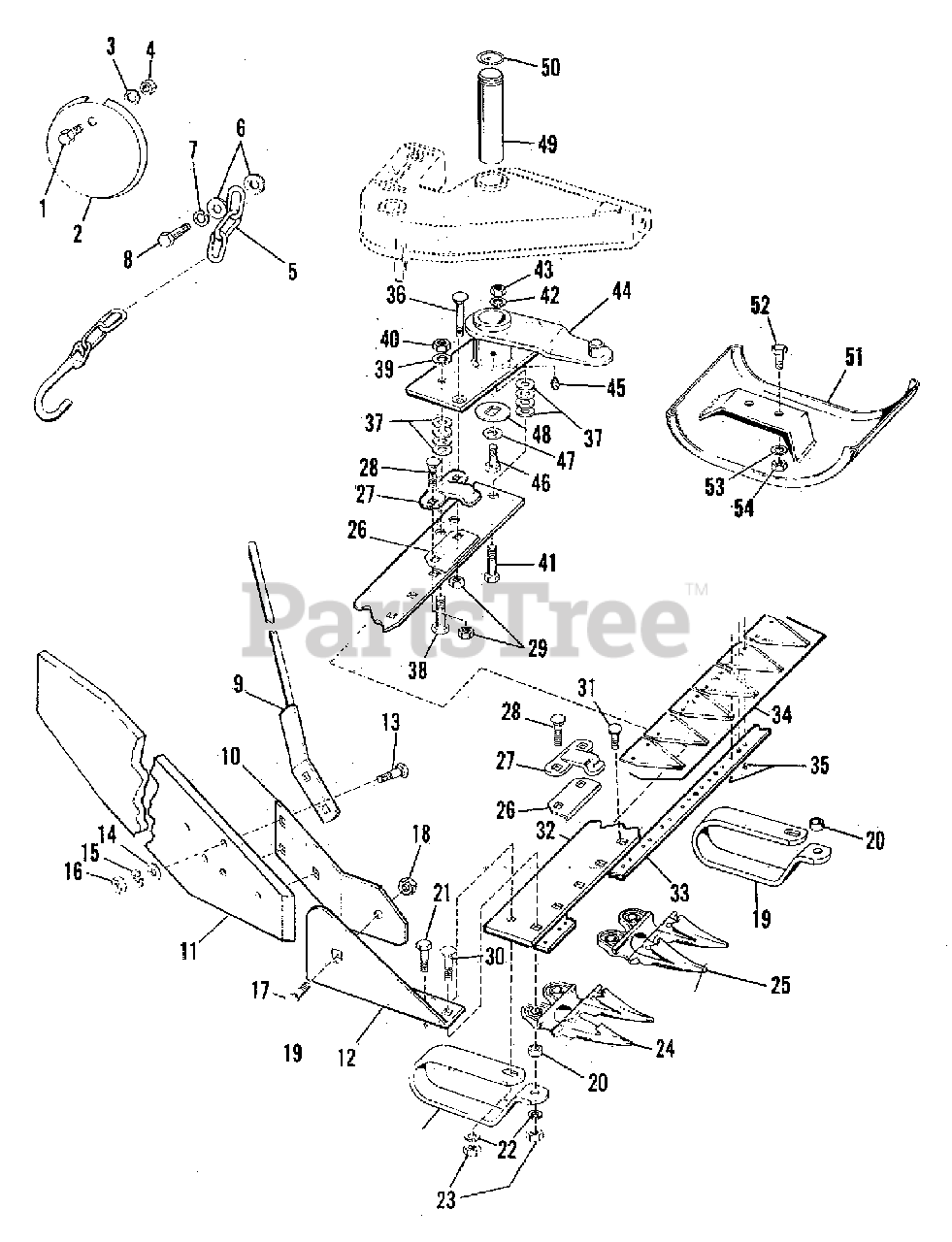

990210 - Simplicity 46" Sickle Bar Sickle Group (3364I01) Parts Diagram

46" Sickle Bar

Sickle Group (3364I01) Parts Diagram

  • Title

1

Simplicity 2705005

CAPSCREW, Hex Head, 3/8"-16 x 1" Lg.

$

$

Not available

2

Simplicity 101082

GUARD, Clutch Pedal

$

$

Not available

3

Simplicity 2720002

WASHER, Lock, 3/8"

$

$

Not available

4

Simplicity 2717003

NUT, Hex, Full, 3/8"-16

$

$

Not available

5

Simplicity 101085

CHAIN ASSEMBLY, Transport

$

$

Not available

6

Simplicity 2719001

WASHER, Plain, 3/8"

$

$

Not available

7

Simplicity 2720002

WASHER, Lock, 3/8"

$

$

Not available

8

Simplicity 2705016

CAPSCREW, Hex Head, 3/8"-16 x 1-1/4" Lg.

$

$

Not available

9

Simplicity 101079

DIVIDER ROD ASSEMBLY

$

$

Not available

10

Simplicity 101077

SUPPORT, Divider Board

$

$

Not available

11

Simplicity 101078

BOARD, Divider

$

$

Not available

12

Simplicity 101075

BRACKET

$

$

Not available

13

Simplicity 2702005

BOLT, Carriage, 3/8"-16 x 1-1/2" Lg.

$

$

Not available

14

Simplicity 2719001

WASHER, Plain, 3/8"

$

$

Not available

15

Simplicity 2720002

WASHER, Lock, 3/8"

$

$

Not available

16

Simplicity 2717003

NUT, Hex, Full, 3/8"-16

$

$

Not available

17

Simplicity 2702002

BOLT, Carriage, 3/8"-16 x 1" Lg.

$

$

Not available

18

Simplicity 2717504

NUT, Hex, Full, Elastic Stop Nut, 3/8"-16

$

$

Not available

19

Simplicity 101076

SHOE

$

$

Not available

20

Simplicity 2153073

SPACER

$

$

Not available

21

Simplicity 2705016

CAPSCREW, Hex Head, 3/8"-16 x 1-1/4" Lg.

$

$

Not available

22

Simplicity 2720002

WASHER, Lock, 3/8"

$

$

Not available

23

Simplicity 2717003

NUT, Hex, Full, 3/8"-16

$

$

Not available

24

Simplicity 8161138

GUARD, Right End

$

$

Not available

25

Simplicity 8161135

GUARD, Twin

$

$

Not available

26

Simplicity 8161136

PLATE, Wear

$

$

Not available

27

Simplicity 101071

CLIP, Sickle

$

$

Not available

28

Simplicity 2702004

BOLT, Carriage, 3/8"-16 x 1-1/4" Lg.

$

$

Not available

29

Simplicity 2717003

NUT, Hex, Full, 3/8"-16

$

$

Not available

30

Simplicity 702006

BOLT, Carriage, 3/8"-16 x 1-3/4" Lg.

$

$

Not available

31

Simplicity 2702002

BOLT, Carriage, 3/8"-16 x 1" Lg.

$

$

Not available

32

Simplicity 101070

BAR, Cutter

$

$

Not available

33

Simplicity 101072

SICKLE BAR, Complete

$

$

Not available

34

Simplicity 101091

COMPLETE SET OF SECTIONS

$

$

Not available

35

Simplicity 724010

RIVET, Round Head, No. 6 x 1/2" Lg.

$

$

Not available

36

Simplicity 704001

BOLT, Plow, 3/8"-16 x 1-3/4" Lg.

$4.49

$

In Stock, Qty 19

0

37

Simplicity 2719001

WASHER, Plain, 3/8"

$

$

Not available

38

Simplicity 2705009

CAPSCREW, Hex Head, 3/8"-16 x 1-1/2" Lg.

$

$

Not available

39

Simplicity 2702002

WASHER, Lock, 3/8"

$

$

Not available

40

Simplicity 2717003

NUT, Hex, Full, 3/8"-16

$

$

Not available

41

Simplicity 705039

CAPSCREW, Hex Head, 7/16"-14 x 1-1/2" Lg.

$6.99

$

In Stock, only 2 left!

0

42

Simplicity 702006

WASHER, Lock, 7/16"

$

$

Not available

43

Simplicity 2717022

NUT, Hex, Full, 7/16"-14

$

$

Not available

44

Simplicity 101043

LEVER ASSEMBLY, Cutter Bar

$

$

Not available

45

Simplicity 2727002

FITTING, Grease

$

$

Not available

46

Simplicity 2705005

CAPSCREW, Hex Head, 3/8"-16 x 1" Lg.

$

$

Not available

47

Simplicity 2719001

WASHER, Plain, 3/8"

$

$

Not available

48

Simplicity 101049

WASHER

$

$

Not available

49

Simplicity 101031

CUTTER BAR SHAFT

$

$

Not available

50

Simplicity 2154291SM

RING, Retaining

$6.99

$

Usually ships in 2-12 days

0

51

Simplicity 101066

SHOE ASSSEMBLY

$

$

Not available

52

Simplicity 2705005

CAPSCREW, Hex Head, 3/8"-16 x 1" Lg.

$

$

Not available

53

Simplicity 2720003

LOCKWASHER, 3/8"

$

$

Not available

54

Simplicity 2717003

NUT, Hex, Full, 3/8"-16

$

$

Not available
