990220 - Simplicity Mobile Generator AC Mobile Generator Parts Diagram

Mobile Generator

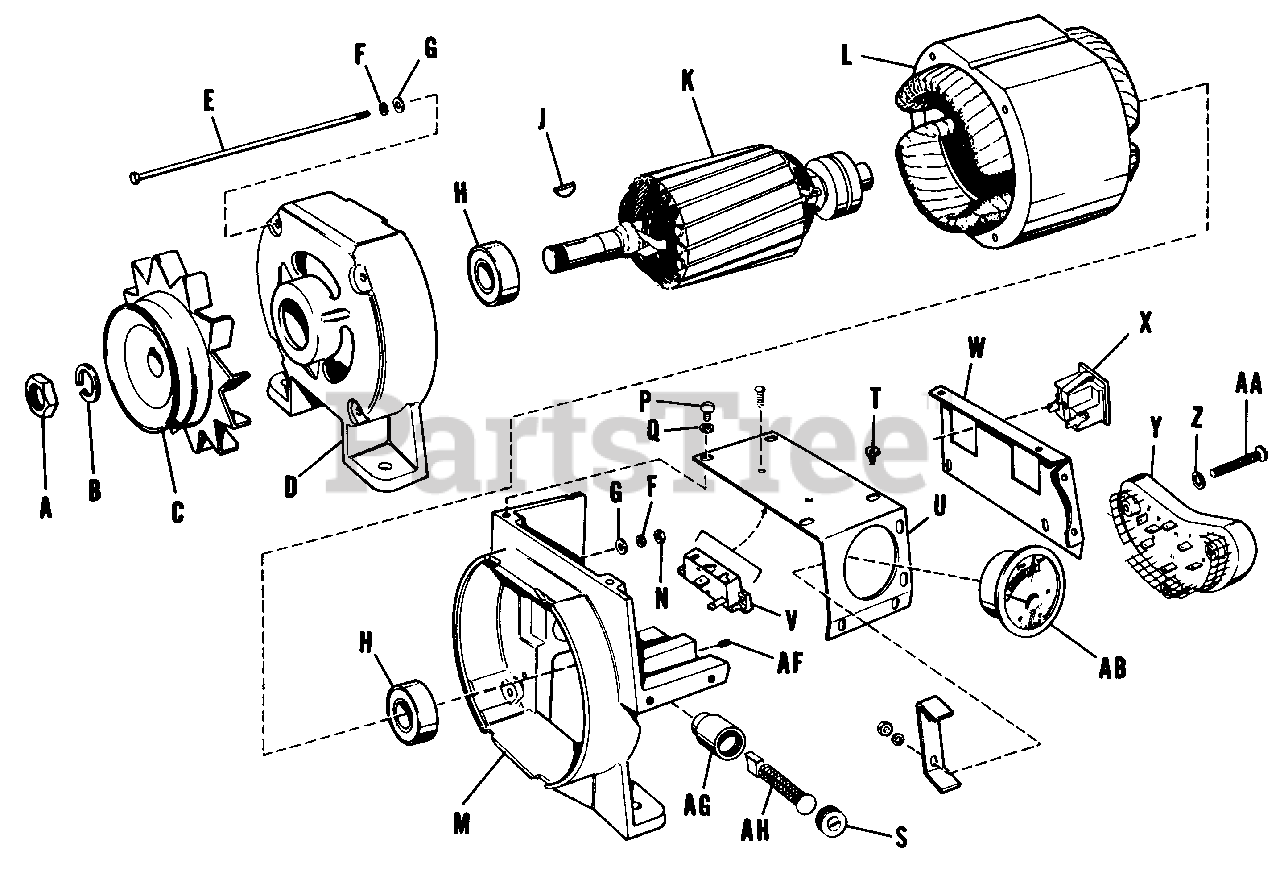

AC Mobile Generator Parts Diagram

  • Title

A

Simplicity 122096

Hex Nut

$

$

Not available

B

Simplicity 2720008

Lockwasher

$

$

Not available

C

Simplicity 122085

Fan and Pulley

$

$

Not available

D

Simplicity 122083

Front Bearing Carrier

$

$

Not available

E

Simplicity 122084

Hex Hd. Mach. Screw, 10-32 x 7 1/4" lg.

$

$

Not available

F

Simplicity 1909055SM

#10 Shakeproof Washer

$3.49

$

Usually ships in 2-12 days

0

G

Simplicity 2719008

#10 Flat Washer

$

$

Not available

H

Simplicity 122081

Bearing

$

$

Not available

J

Simplicity 2725002

#6 Woodruff Key

$

$

Not available

K

Simplicity 122082

Armature

$

$

Not available

L

Simplicity 122080

Field Assembly

$

$

Not available

M

Simplicity 122086

Rear Bearing Carrier

$

$

Not available

N

Simplicity 2717007

10-32 Hex Nut

$

$

Not available

P

Simplicity 710004

10-32 x 3/8" lg. Rd. Hd. Mach. Screw

$3.99

$

In Stock, only 1 left!

0

Q

#10 Shakeproof Washer

$

$

Not available

S

Simplicity 122092

Brush Holder Cap

$

$

Not available

T

#8 Pan Hd. Self Tapping Screw, 3/8" lg.

$

$

Not available

U

Simplicity 122087

Brush Box Cover (Top)

$

$

Not available

V

Simplicity 122089

Circuit Breaker Reset

$

$

Not available

W

Simplicity 122093

Brush Box Cover (Back)

$

$

Not available

X

Simplicity 122094

115 Volt Outlet

$

$

Not available

Y

Simplicity 122095

Rectifier Pad Assy.

$

$

Not available

Z

Simplicity 721502

1/4" Shakeproof Washer
(Superseded to 1001541MA)

$

$

Not available

AA

Simplicity 2705053

Rd. Hd. Cap Screw, 1/4"-20 x 1 3/4" lg.

$

$

Not available

AB

Simplicity 122088

Voltmeter Assy.

$

$

Not available

AF

Simplicity 122097

Allen Hd. Set Screw, 10-32 x 1/4" lg.

$

$

Not available

AG

Simplicity 122090

Brush Holder

$

$

Not available

AH

Simplicity 122091

Brush

$

$

Not available
