990221 - Simplicity Sno-Away 23" Snow Thrower TRANSMISSION, WHEELS, FRAME Parts Diagram

Sno-Away 23" Snow Thrower

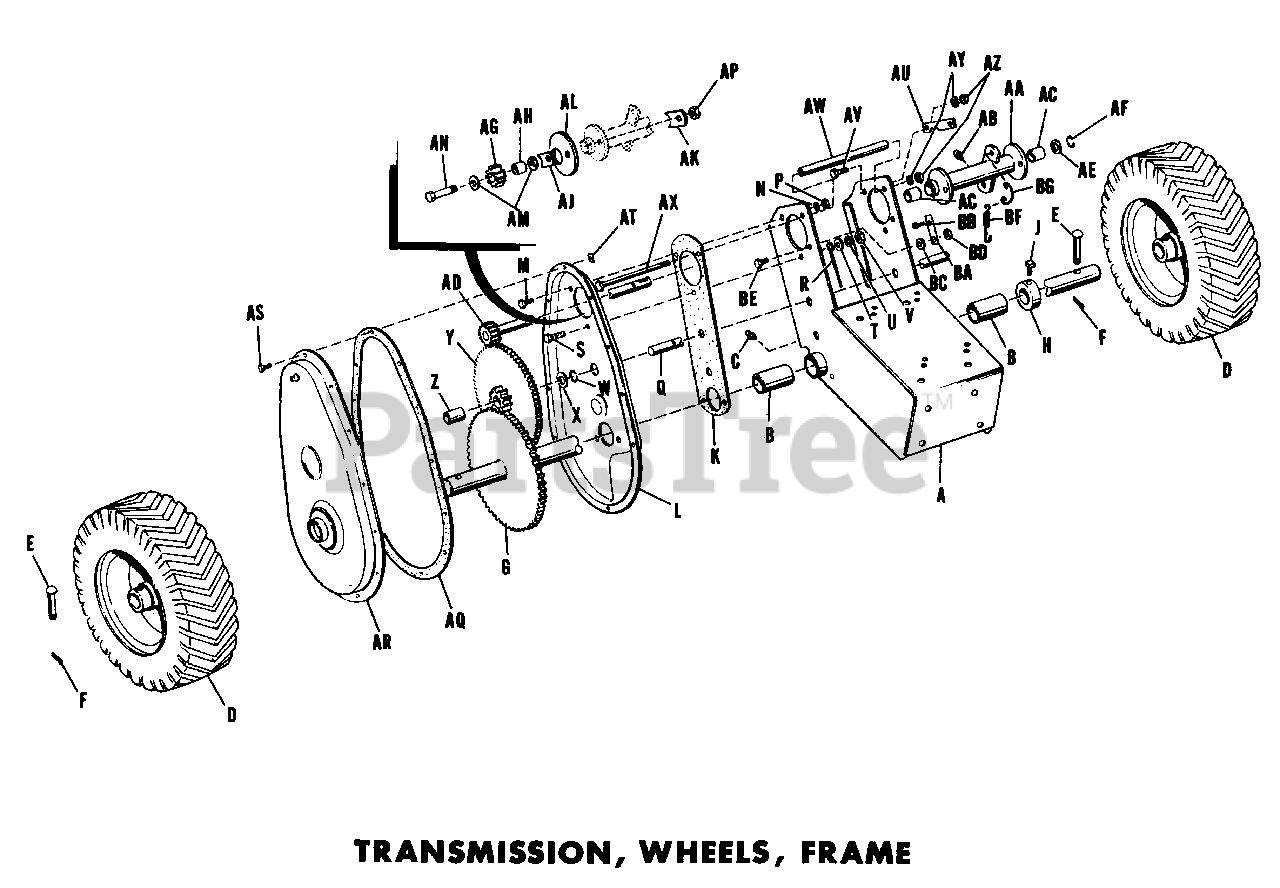

TRANSMISSION, WHEELS, FRAME Parts Diagram

  • Title

A

Simplicity 106180

Frame Assembly

$

$

Not available

B

Simplicity 153089

Bearing, Axle

$

$

Not available

C

Simplicity 2727002

Fitting, Grease

$

$

Not available

D

Simplicity 106332

Wheel & Tire Assembly

$

$

Not available

E

Simplicity 2118053SM

Pins
(Superseded to 704241)

$9.99

$

Usually ships in 2-12 days

0

F

Simplicity 2722006

Pin, Cotter, 1/8" x 1" lg.

$

$

Not available

G

Simplicity 106356

Axle & Gear Assembly

$

$

Not available

H

Simplicity 2154065SM

Collar, Set

$113.99

$

Usually ships in 2-12 days

0

J

Simplicity 2713006

Screw, Set, Square Hd., 5/16"-18 NC x 1/2"

$

$

Not available

K

Simplicity 153114

Gasket, Bearing Housing

$

$

Not available

L

Simplicity 153105

Gear Case

$

$

Not available

M

Simplicity 2715012

Capscrew, Hex, 5/16"-18 NC x 5/8 lg.

$

$

Not available

N

Simplicity 2720001

Washer, Lock, 5/16"

$

$

Not available

P

Simplicity 2717001

Nut, Hex, Full, 5/16"-18 NC

$

$

Not available

Q

Simplicity 106193

Shaft, intermediate

$

$

Not available

R

Simplicity 121044

Pin, Lock

$

$

Not available

S

Simplicity 2705005

Capscrew, Hex. , 3/8"-16 NC x 1" lg.

$

$

Not available

T

Simplicity 2719001

Washer, Plain, 3/8"

$

$

Not available

U

Simplicity 2720002

Washer, Lock, 3/8"

$

$

Not available

V

Simplicity 2717003

Nut, Hex, Full, 3/8"-16 NC

$

$

Not available

W

Simplicity 2153124SM

Ring, Retaining

$5.99

$

In Stock, Qty 20+

0

X

Simplicity 2153079

Washer

$

$

Not available

Y

Simplicity 121306

Gear Assembly, Intermediate

$

$

Not available

Z

Simplicity 2153078

Bearing, Intermediate Pinion

$

$

Not available

AA

Simplicity 106199

Housing Assembly, Bearing

$

$

Not available

AB

Simplicity 2727002

Fitting, Grease

$

$

Not available

AC

Simplicity 2156064SM

Bearing

$22.99

$

Usually ships in 2-12 days

0

AD

Simplicity 2121115SM

Shaft Assembly, Pulley

$90.99

$

Usually ships in 2-12 days

0

AE

Simplicity 2153079

Washer

$

$

Not available

AF

Simplicity 2153124SM

Ring, Retaining

$5.99

$

In Stock, Qty 20+

0

AG

Simplicity 121118

Pinion, Reverse

$

$

Not available

AH

Simplicity 121163

Spacer, Pinion

$

$

Not available

AJ

Simplicity 121107

Spacer, Reverse Pinion

$

$

Not available

AK

Simplicity 121139

Plate, Lock

$

$

Not available

AL

Simplicity 153094

Shield

$

$

Not available

AM

Simplicity 2719002

Washer, Plain, 5/16"

$

$

Not available

AN

Simplicity 715033

Bolt, Hex Head, L.H.

$372.99

$

Usually ships in 2-12 days

0

AP

Simplicity 153090

Nut, Hex, Full, L.H.

$

$

Not available

AQ

Simplicity 153115

Gasket, Gear Case

$

$

Not available

AR

Simplicity 153106

Cover Assembly, Gear Case

$

$

Not available

AS

Simplicity 2714004

Screw, Self Tapping, #10 x 3/8" lg.

$

$

Not available

AT

Simplicity 718008

Nut, Speed

$

$

Not available

AU

Simplicity 106215

Plate, Friction Stop

$

$

Not available

AV

Simplicity 2705017

Screw, Cap, Hex. , 5/16"-18 NC x 3/4" lg.

$

$

Not available

AW

Simplicity 106217

Spacer, Frame

$

$

Not available

AX

Simplicity 106216

Bolt, Frame

$

$

Not available

AY

Simplicity 2720001

Washer, Lock, 5/16"

$

$

Not available

AZ

Simplicity 2717001

Nut, Hex, Full, 5/16"-18 NC

$

$

Not available

BA

Simplicity 718021

Detent, Neutral

$

$

Not available

BB

Simplicity 714014

Screw, Self Tapping, #10 x 3/8" lg. Round Head

$

$

Not available

BC

Simplicity 2719006

Washer, Plain, 1/4"

$

$

Not available

BD

Simplicity 2717005

Nut, Hex, Full, 1/4"-20 NC

$

$

Not available

BE

Simplicity 2715018

Capscrew, Hex, 1/4"-20 NC x 5/8" lg.

$

$

Not available

BF

Simplicity 153121

Spring, Reverse Lever

$

$

Not available

BG

Simplicity 153011

Extension, Spring

$

$

Not available
