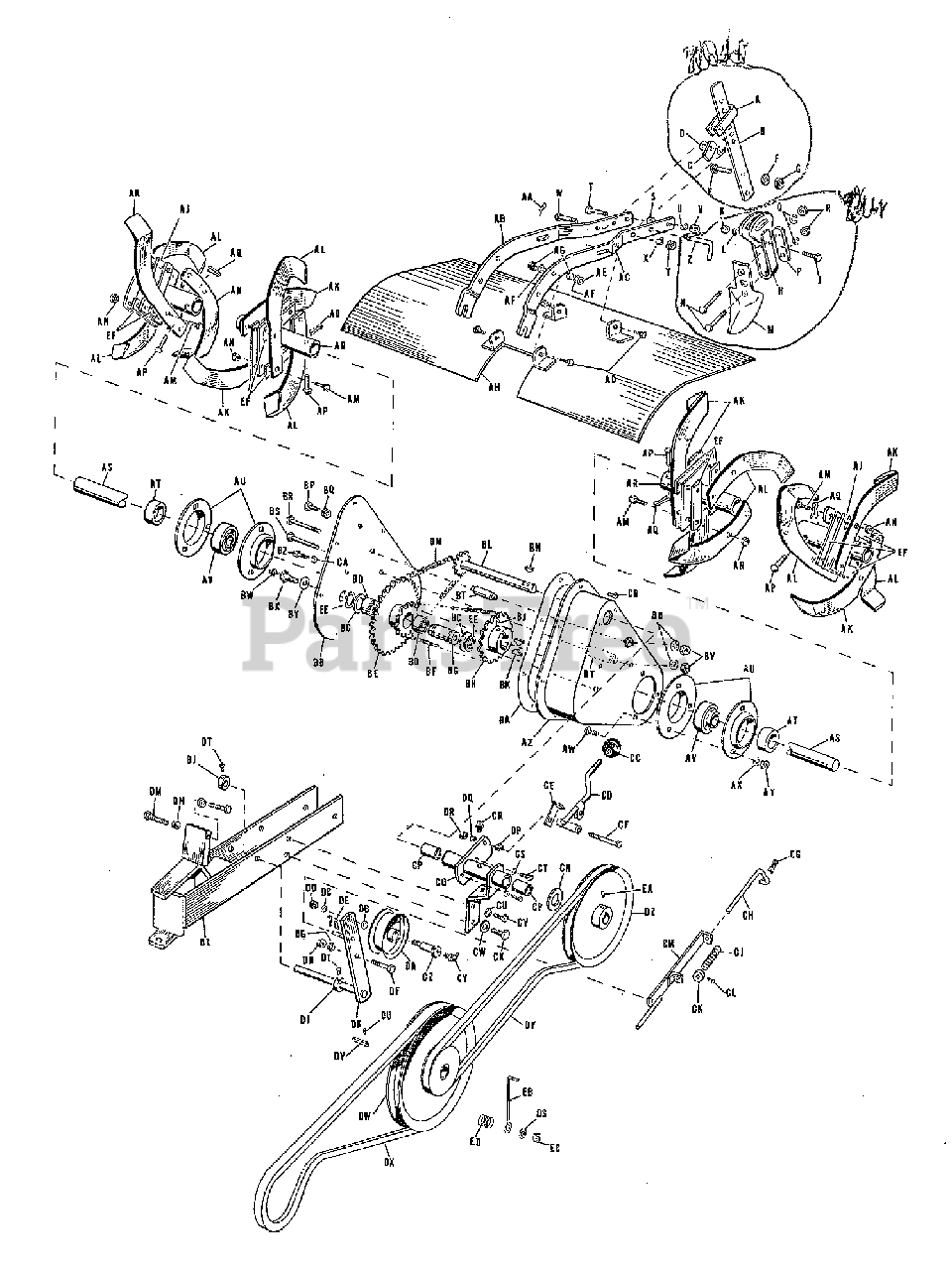

990225 - Simplicity 32" Tiller Attachment Tine Group (3608I01) Parts Diagram

32" Tiller Attachment

Tine Group (3608I01) Parts Diagram

  • Title

A

Simplicity 105091

GUIDE

$

$

Not available

B

Simplicity 105092

BAR, Depth

$

$

Not available

C

Simplicity 105090

LUG, Stop

$

$

Not available

D

Simplicity 2719003

WASHER, Plain, 7/16"

$

$

Not available

E

Simplicity 2703002

BOLT, Carriage, 3/8"-16 x 1-1/4" Lg w/Short Square Neck

$

$

Not available

F

Simplicity 2719001

WASHER, Plain, 3/8"

$

$

Not available

G

Simplicity 2717003

NUT, Hex, Full, 3/8"-16

$

$

Not available

H

Simplicity 105107

HOLDER ASSEMBLY, Tool

$

$

Not available

J

Simplicity 715009

CAPSCREW, Hex, 3/8"-16 x 1-1/2" Lg.

$242.99

$

Usually ships in 2-12 days

0

K

Simplicity 2717003

NUT, Hex, Full, 3/8"-16

$

$

Not available

L

Simplicity 2720002

WASHER, Lock, 3/8"

$

$

Not available

M

Simplicity 105093

SHOE, Depth

$

$

Not available

N

Simplicity 704003

BOLT, Plow, 3/8"-16 x 2-1/4" Lg.

$4.49

$

Usually ships in 2-12 days

0

P

Simplicity 105110

STRAP, Shoe

$

$

Not available

Q

Simplicity 2720006

WASHER, Lock, 7/16"

$

$

Not available

R

Simplicity 2717022

NUT, Hex, Full, 7/16"

$

$

Not available

S

Simplicity 105006

SPACER

$

$

Not available

T

Simplicity 2705035

CAPSCREW, Hex, 1/2"-13 x 2" Lg.

$

$

Not available

U

Simplicity 2720004

WASHER, Lock, 1/2"

$

$

Not available

V

Simplicity 2717006

NUT, Hex, Full, 1/2"-13

$

$

Not available

W

Simplicity 705027

CAPSCREW, Hex, 1/2"-13 x 2 1/4" Lg.
(Superseded to 709116)

$204.99

$

In Stock, only 2 left!

0

X

Simplicity 2720004

WASHER, Lock, 1/2"

$

$

Not available

Y

Simplicity 2717006

NUT, Hex, Full, 1/2"-13

$

$

Not available

Z

Simplicity 105004

PIN

$

$

Not available

AA

Simplicity 1918196SM

CLIP, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, only 2 left!

0

AB

Simplicity 105095

BEAM, Depth Gage, R.H.

$

$

Not available

AC

Simplicity 105094

BEAM, Depth Gage, L.H.

$

$

Not available

AD

Simplicity 2705005

CAPSCREW, Hex, 3/8"-16 x 1" Lg.

$

$

Not available

AE

Simplicity 2719001

WASHER, Plain, 3/8"

$

$

Not available

AF

Simplicity 2720002

WASHER, Lock, 3/8"

$

$

Not available

AG

Simplicity 2717003

NUT, Hex, Full, 3/8"-16

$

$

Not available

AH

Simplicity 105226

DEFLECTOR ASSEMBLY

$

$

Not available

AJ

Simplicity 105245

PLATE ASSEMBLY, Tine, Outer

$

$

Not available

AK

Simplicity 1729272SM

BLADE, R.H. Tine

$28.99

$

Usually ships in 2-12 days

0

AL

Simplicity 1729271SM

BLADE, L.H. Tine

$

$

Not available

AM

Simplicity 706014

CAPSCREW, Hex, 7/16"-20 x 1-3/4" Lg.

$3181.99

$

Usually ships in 2-12 days

0

AN

Simplicity 2717512

NUT, Hex, Full Lock, 7/16"-20 Gripco

$

$

Not available

AP

Simplicity 2105249SM

PIN, Tine, Shaft

$16.99

$

Usually ships in 2-12 days

0

AQ

Simplicity 2722009

PIN, Cotter, 1/8" x 3/4" Lg.

$

$

Not available

AR

Simplicity 105248

PLATE ASSEMBLY, Tine, Inner

$

$

Not available

AS

Simplicity 105084

SHAFT, Tine

$

$

Not available

AT

Simplicity 1729269

COLLAR, Bearing

$

$

Not available

AU

Simplicity 8151072

FLANGE, Bearing

$

$

Not available

AV

Simplicity 1729268SM

BEARING

$55.99

$

Usually ships in 2-12 days

0

AW

Simplicity 2702003

BOLT, Carriage, 3/8"-16 x 3/4" Lg.

$

$

Not available

AX

Simplicity 2720002

WASHER, Lock, 3/8"

$

$

Not available

AY

Simplicity 2717003

NUT, Hex, Full, 3/8"-16

$

$

Not available

AZ

Simplicity 105086

GUARD ASSEMBLY, Chain

$

$

Not available

BA

Snapper 2105016SM

GASKET

$

$

Not available

BB

Simplicity 105078

PLATE ASSEMBLY, Side

$

$

Not available

BC

Simplicity 2860208SM

WASHER

$4.99

$

Usually ships in 2-12 days

0

BD

Simplicity 2105195SM

BEARING, Roller

$34.99

$

In Stock, only 2 left!

0

BE

Simplicity 105193

SPROCKET ASSEMBLY

$

$

Not available

BF

Simplicity 2178174SM

CHAIN, Rotor

$86.99

$

Usually ships in 2-12 days

0

BG

Simplicity 2105192SM

SPACER, Intermediate

$110.99

$

Usually ships in 2-12 days

0

BH

Simplicity 8151022

SPROCKET, Driven

$

$

Not available

BJ

Simplicity 2713503

SETSCREW, Socket Head, 5/16"-18 x 5/16"

$

$

Not available

BK

Simplicity 2725503

KEY, Hi-Pro

$

$

Not available

BL

Simplicity 105080

SHAFT ASSEMBLY, Drive

$

$

Not available

BM

Simplicity 105055

CHAIN, Drive

$

$

Not available

BN

Simplicity 2725003

KEY, Woodruff, #9, 3/16 x 3/4"

$

$

Not available

BP

Simplicity 715013

SETSCREW, Square Head, 3/8"-24 x 3/4" Lg.

$

$

Not available

BQ

Simplicity 2717014

NUT, Hex Jam, 3/8"-24

$

$

Not available

BR

Simplicity 705033

CAPSCREW, Hex, 7/16"-14 x 4-1/2" Lg.
(Superseded to 709771)

$7.49

$

In Stock, Qty 20+

0

BS

Simplicity 705034

CAPSCREW, Hex, 7/16"-14 x 3-3/4" Lg.

$6.49

$

Usually ships in 2-12 days

0

BT

Simplicity 105085

SPACER, Guard

$

$

Not available

BU

Simplicity 721504

WASHER, Lock, 7/16" Intermediate Shakeproof

$

$

Not available

BV

Simplicity 2717022

NUT, Hex, Full, 7/16"-14

$

$

Not available

BW

Simplicity 2727002

FITTING, Grease, Alemite #1641

$

$

Not available

BX

Simplicity 105054

BOLT

$

$

Not available

BY

Simplicity 2719003

WASHER, Plain, 7/16"

$

$

Not available

BZ

Simplicity 2705004

CAPSCREW, Hex, 3/8"-16 x 3/4" Lg

$

$

Not available

CA

Simplicity 2720002

WASHER, Lock, 3/8"

$

$

Not available

CB

Simplicity 708004

SCREW, 1/4"-20 x 3/8" Hex Head, Sems w/External Lockwasher
(Superseded to 709762)

$16.99

$

Usually ships in 2-12 days

0

CC

Simplicity 1729255SM

BALL, Clutch Lever

$12.99

$

In Stock, only 1 left!

0

CD

Simplicity 8021507

CLUTCH LEVER ASSEMBLY, R.H.

$

$

Not available

CE

Simplicity 8021121

STOP, Lever

$

$

Not available

CF

Simplicity 2705036

CAPSCREW, Hex, 5/16"-18 x 2-1/2"

$

$

Not available

CG

Simplicity 2722001

PIN, Cotter, 3/32" x 3/4" Lg.

$

$

Not available

CH

Simplicity 8151050

ROD, Idler Clutch

$

$

Not available

CJ

Simplicity 1729277SM

SPRING

$6.99

$

Usually ships in 2-12 days

0

CK

Simplicity 1729276SM

COLLAR, Set

$

$

Not available

CL

Simplicity 2713001

SETSCREW, Square Head, 1/4"-20 x 3/8"

$

$

Not available

CM

Simplicity 105118

GUIDE ASSEMBLY, Rod

$

$

Not available

CN

Simplicity 1960061SM

WASHER

$7.99

$

Usually ships in 2-12 days

0

CP

Simplicity 8191044

BUSHING

$

$

Not available

CQ

Simplicity 105074

SUPPORT ASSEMBLY, Housing

$

$

Not available

CR

Simplicity 2727001

FITTING, Grease, Alemite #1792

$

$

Not available

CS

Simplicity 2720001

WASHER, Lock, 5/16"

$

$

Not available

CT

Simplicity 2705017

CAPSCREW, Hex, 5/16"-18 x 3/4"

$

$

Not available

CU

Simplicity 2721503

WASHER, Lock, 3/8" Intermediate Shakeproof

$

$

Not available

CV

Simplicity 2705031

CAPSCREW, Hex, 3/8"-16 x 7/8" Lg.

$

$

Not available

CW

Simplicity 2719003

WASHER, Plain, 7/16"

$

$

Not available

CX

Simplicity 706012

CAPSCREW, Hex, 1/2"-20 x 1-3/4"

$189.99

$

Usually ships in 2-12 days

0

CY

Simplicity 2727004

FITTING, Grease, Alemite, #1911-90 Degrees

$

$

Not available

CZ

Simplicity 8151037

PIN, Idler Pulley

$

$

Not available

DA

Simplicity 8151505

PULLEY ASSEMBLY, Idler

$

$

Not available

DB

Simplicity 2153072

WASHER

$

$

Not available

DC

Simplicity 2721506

WASHER, Lock, 1/2" Intermediate Shakeproof

$

$

Not available

DD

Simplicity 2717016

NUT, Hex Jam, 1/2"-20

$

$

Not available

DE

Simplicity 2722006

PIN, Cotter, 1/8" x 1" Lg.

$

$

Not available

DF

Simplicity 2705009

CAPSCREW, Hex, 3/8"-16 x 1-1/2"

$

$

Not available

DG

Simplicity 2720002

WASHER, Lock, 3/8"

$

$

Not available

DH

Simplicity 2717003

NUT, Hex, Full, 3/8"-16

$

$

Not available

DJ

Simplicity 1729258SM

SET COLLAR
(Superseded to 5010477YP)

$8.99

$

Usually ships in 2-12 days

0

DK

Simplicity 105099

LEVER ASSEMBLY, Idler

$

$

Not available

DL

Simplicity 105069

FRAME ASSEMBLY

$

$

Not available

DM

Simplicity 2706003

CAPSCREW, Hex, 7/16"-20 x 1-1/2"

$

$

Not available

DN

Simplicity 717009

NUT, Hex, Full, 7/16"-20

$

$

Not available

DP

Simplicity 2717011

NUT, Hex, Jam, 5/16"-18

$

$

Not available

DQ

Simplicity 2720001

WASHER, Lock, 5/16"

$

$

Not available

DR

Simplicity 2717001

NUT, Hex, Full, 5/16"-18

$

$

Not available

DS

Simplicity 2719001

WASHER, Plain, 3/8"

$

$

Not available

DT

Simplicity 2713002

SETSCREW, Square Head, 5/16"-18 x 3/8"

$

$

Not available

DU

Simplicity 2713503

SETSCREW, Socket Head, 5/16"-18 x 5/16" Lg.

$

$

Not available

DV

Simplicity 8061104

KEY

$

$

Not available

DW

Simplicity 8153505

SHEAVE ASSEMBLY, Transmission

$

$

Not available

DX

Simplicity 105067

BELT, "V", (Engine)

$

$

Not available

DY

Simplicity 105066

BELT, "V", (Tiller)

$

$

Not available

DZ

Simplicity 8151020

SHEAVE

$

$

Not available

EA

Simplicity 2713503

SETSCREW, Socket Head, 5/16-18 x 5/16" Lg.

$

$

Not available

EB

Simplicity 8161158

STOP, Belt

$

$

Not available

EC

Simplicity 2717510

NUT, Lock, Full Hex, 3/8"-16

$

$

Not available

ED

Simplicity 1729278SM

SPRING

$2.49

$

Usually ships in 2-12 days

0

EE

Simplicity 2105194

RING, Retaining

$

$

Not available

EF

Simplicity 105162

SPACER

$

$

Not available
