990227 - Simplicity 36" Lawn Roller 36" LAWN ROLLER Parts Diagram

36" Lawn Roller

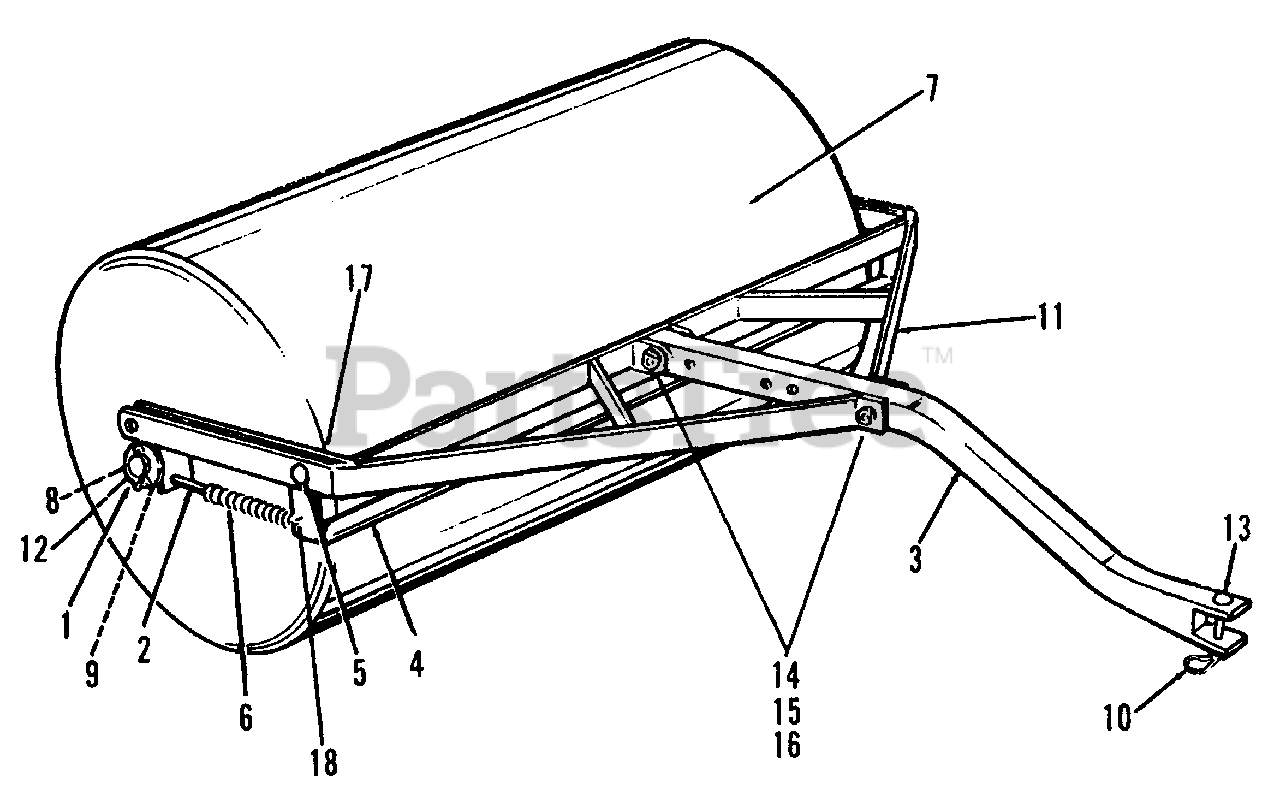

36" LAWN ROLLER Parts Diagram

  • Title

1

Simplicity 2719005

Plain Washer, 3/4"

$

$

Not available

2

Simplicity 102043

Extension Pin

$

$

Not available

3

Simplicity 2102037SM

Tongue Assembly

$

$

Not available

4

Simplicity 102068

Scraper

$

$

Not available

5

Simplicity 2102004SM

Pivot Pin

$9.49

$

In Stock, only 3 left!

0

6

Simplicity 8011158

Spring

$

$

Not available

7

Simplicity 102069

Roller

$

$

Not available

8

Simplicity 102034

Bushing

$

$

Not available

9

Simplicity 102007

Bearing Retainer

$

$

Not available

10

Simplicity 1918196SM

Spring Clip
(Superseded to 5025210YP)

$3.99

$

In Stock, only 1 left!

0

11

Simplicity 102065

Frame Assembly

$

$

Not available

12

Simplicity 2722002

Cotter Pin, 3/32" x 1" lg.

$

$

Not available

13

Simplicity 2118053SM

Pin
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

14

Simplicity 2705003

Hex Capscrew, 3/8"-16 x 2-1/4" lg.

$

$

Not available

15

Simplicity 2720002

Lock Washer, 3/8"-16

$

$

Not available

16

Simplicity 2717003

Hex Nut, Full, 3/8"-16

$

$

Not available

17

Simplicity 2722016

Cotter Pin, 3/32" x 5/8" lg.

$

$

Not available

18

Simplicity 2722004

Cotter Pin, 1/8" x 1/2" lg.

$

$

Not available
