990233 - Simplicity Super Roticul Tiller, 4hp SUPER ROTICUL MFR. NO. 233 Parts Diagram

Super Roticul Tiller, 4hp

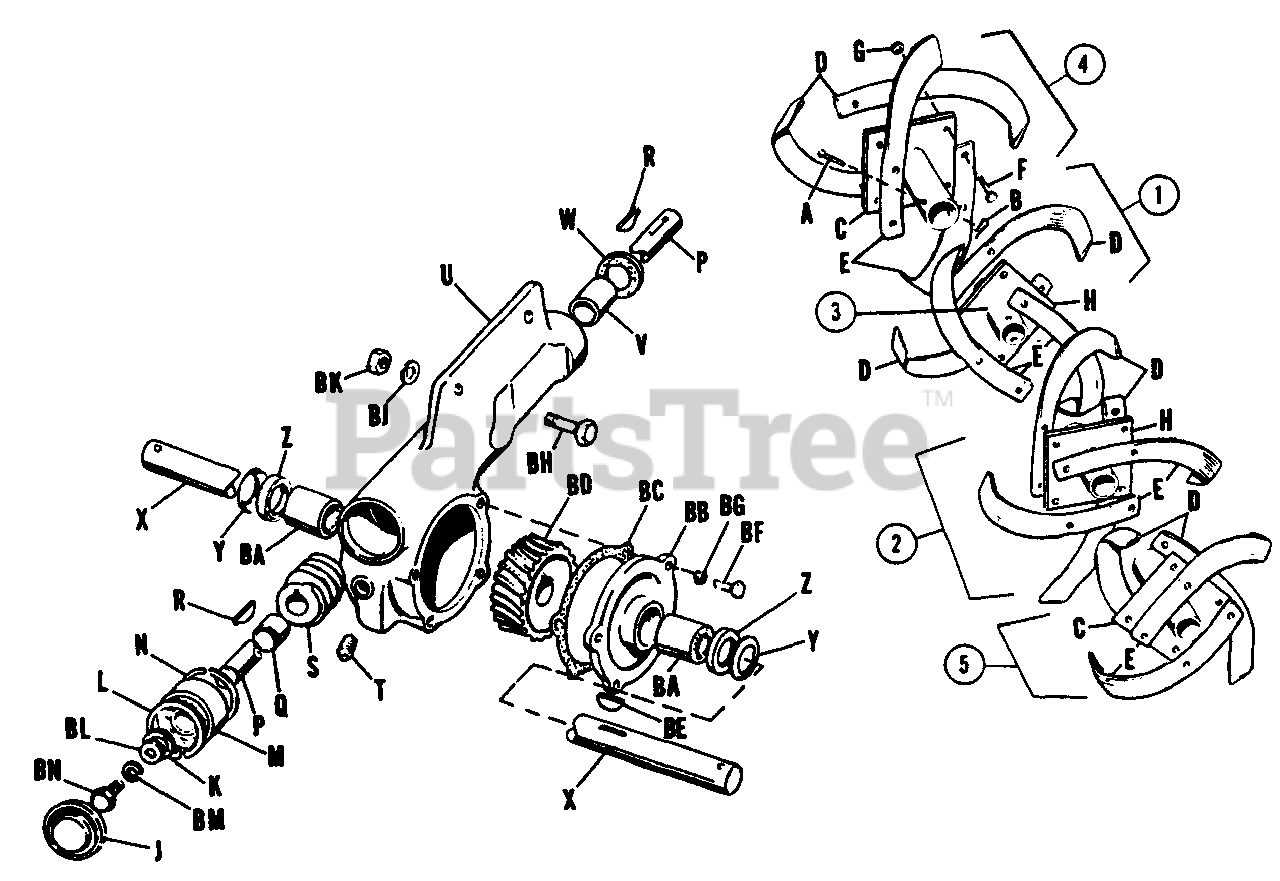

SUPER ROTICUL MFR. NO. 233 Parts Diagram

  • Title

A

Simplicity 2118053SM

Pin
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

B

Simplicity 1918196SM

Clip, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, only 1 left!

0

C

Simplicity 105221

Tine Plate Assembly, Outer

$

$

Not available

D

Simplicity 1729271SM

Tine Blade, L.H.

$

$

Not available

E

Simplicity 1729272SM

Tine Blade, R.H.

$28.99

$

Usually ships in 2-12 days

0

F

Simplicity 706009

Capscrew, Hex Hd., 7/16-20 x 1 1/4

$204.99

$

Usually ships in 2-12 days

0

G

Simplicity 2717512

Hex Nut, Full Lock, 7/16-20

$

$

Not available

H

Simplicity 118084

Tine Plate Assembly, Inner

$

$

Not available

J

Simplicity 1181-79

Cup

$

$

Not available

K

Simplicity 1181-78

Washer

$

$

Not available

L

Simplicity 1180-61

Retaining Ring

$

$

Not available

M

Simplicity 2118011SM

Ball Bearing

$

$

Not available

N

Simplicity 1180-94

Snap Ring

$

$

Not available

P

Simplicity 118177

Worm Shaft

$

$

Not available

Q

Simplicity 1180-60

Spacer

$

$

Not available

R

Simplicity 725502

Key, Hi-Pro #706

$

$

Not available

S

Simplicity 118016

Worm

$

$

Not available

T

Simplicity 2726003

Pipe Plug, 3/8" Std.

$

$

Not available

U

Simplicity 118069

Worm Drive Housing

$

$

Not available

V

Simplicity 118072

Bushing

$

$

Not available

W

Simplicity 2118117SM

Oil Seal

$13.99

$

Usually ships in 2-12 days

0

X

Simplicity 118021

Worm Gear Shaft

$

$

Not available

Y

Simplicity 2118082SM

Washer

$2.99

$

Usually ships in 2-12 days

0

Z

Simplicity 2118118SM

Oil Seal

$10.99

$

In Stock, only 1 left!

0

BA

Simplicity 2118020SM

Bearing, Needle

$31.99

$

Usually ships in 2-12 days

0

BB

Simplicity 118070

Cover

$

$

Not available

BC

Simplicity 2118024SM

Gasket

$12.99

$

In Stock, only 1 left!

0

BD

Simplicity 2118022SM

Worm Gear

$286.99

$

Usually ships in 2-12 days

0

BE

Simplicity 2725005

Key, Woodruff, 1/4" x 3/4"

$

$

Not available

BF

Simplicity 2715018

Capscrew, Hex Hd., 1/4-20 x 5/8"

$

$

Not available

BG

Simplicity 2720003

Lock Washer, 1/4"

$

$

Not available

BH

Simplicity 2715015

Capscrew, Hex Hd., 3/8-16 x 1 1/4"

$

$

Not available

BJ

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

BK

Simplicity 2717003

Hex Nut, Full, 3/8"-16

$

$

Not available

BL

Simplicity 2719002

Washer, Plain, 5/16"

$

$

Not available

BM

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

BN

Simplicity 2715004

Capscrew, Hex Hd., 3/8-16 x 3/4"

$

$

Not available
