990233 - Simplicity Super Roticul Tiller, 4hp SUPER ROTICUL MFR. NO. 233 - Diagram 2 Parts Diagram

Super Roticul Tiller, 4hp

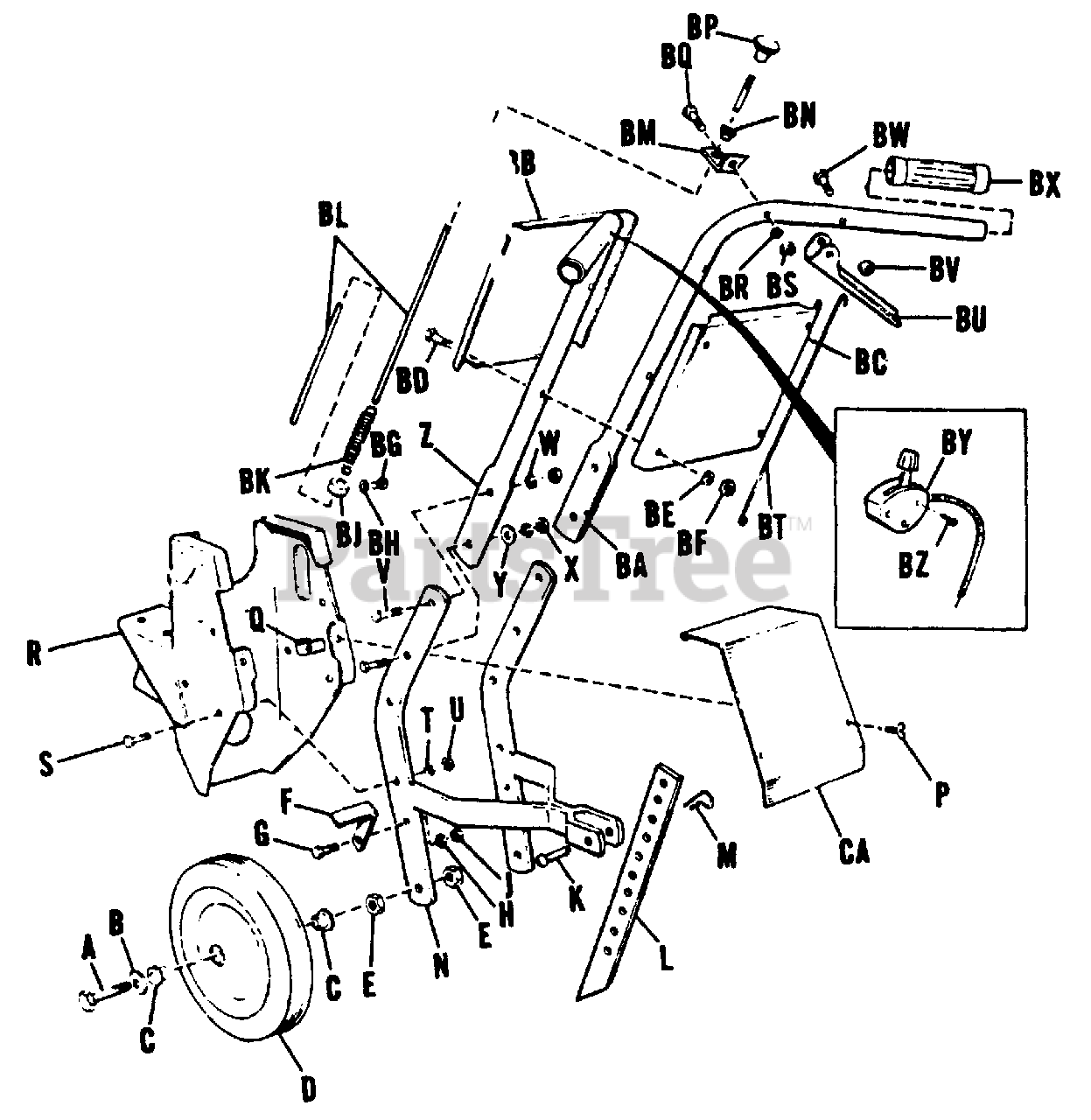

SUPER ROTICUL MFR. NO. 233 - Diagram 2 Parts Diagram

  • Title

A

Simplicity 2705037

Capscrew, Hex Hd., 1/2-13 x 3-1/4"

$

$

Not available

B

Simplicity 2719004

Washer, Plain, 1/2"

$

$

Not available

C

Simplicity 2118132SM

Wheel Bushing

$

$

Not available

D

Simplicity 118030

Wheel & Tire Assembly

$

$

Not available

E

Simplicity 2717017

Hex Jam Nut, 1/2"-13

$

$

Not available

F

Simplicity 118135

Scraper

$

$

Not available

G

Simplicity 2705005

Capscrew, Hex Hd., 3/8-16 x 1"

$

$

Not available

H

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

J

Simplicity 2717003

Hex Nut, Full, 3/8"-16

$

$

Not available

K

Simplicity 2118053SM

Pin
(Superseded to 704241)

$9.99

$

Usually ships in 2-12 days

0

L

Simplicity 118081

Depth Bar

$

$

Not available

M

Simplicity 1918196SM

Spring Clip
(Superseded to 5025210YP)

$3.99

$

In Stock, only 2 left!

0

N

Simplicity 118159

Frame Assembly

$

$

Not available

P

Simplicity 2715040

Thumbscrew

$

$

Not available

Q

Simplicity 2718026

Speed Nut

$

$

Not available

R

Simplicity 118153

Body Assembly

$

$

Not available

S

Simplicity 2705005

Capscrew, Hex Hd, 3/8-16 x 1"

$

$

Not available

T

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

U

Simplicity 2717003

Hex Nut, Full, 3/8-16

$

$

Not available

V

Simplicity 2705005

Caspscrew, Hex Hd, 3/8-16 x 1"

$

$

Not available

W

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

X

Simplicity 747003

Hex Nut, Full, 3/8-16

$

$

Not available

Y

Simplicity 2719001

Washer, Plain, 3/8"

$

$

Not available

Z

Simplicity 118167

Handle, Left Hand

$

$

Not available

BA

Simplicity 118166

Handle, Right Hand

$

$

Not available

BB

Simplicity 118168

Handle Cover

$

$

Not available

BC

Simplicity 118168

Handle Cover

$

$

Not available

BD

Simplicity 2705025

Capscrew, Hex Hd, 1/4-20 x 1-1/2"

$

$

Not available

BE

Simplicity 2720003

Lock Washer, 1/4"

$

$

Not available

BF

Simplicity 2717005

Hex Nut, Full, 1/4"-20

$

$

Not available

BG

Simplicity 2713001

Set Screw, Sq. Hd., 1/4-20 x 3/8"

$

$

Not available

BH

Simplicity 2719007

Washer, Plain 3/16"

$

$

Not available

BJ

Simplicity 118129

Set Collar

$

$

Not available

BK

Simplicity 118170

Spring

$

$

Not available

BL

Simplicity 118103

Reverse Rod

$

$

Not available

BM

Simplicity 118169

Bracket, Bushing

$

$

Not available

BN

Simplicity 118102

Bushing

$

$

Not available

BP

Simplicity 2118104

Reverse Knob

$

$

Not available

BQ

Simplicity 2705025

Capscrew, Hex Hd, 1/4-20 x 1-1/2"

$

$

Not available

BR

Simplicity 2720003

Lock Washer, 1/4"

$

$

Not available

BS

Simplicity 2717005

Hex Nut, Full, 1/4-20

$

$

Not available

BT

Simplicity 118171

Extension, Spring

$

$

Not available

BU

Simplicity 1180-56

Clutch Grip

$

$

Not available

BV

Simplicity 2717513

Hex Nut, Lock, 1/4-20

$

$

Not available

BW

Simplicity 2705025

Capscrew, Hex Hd, 1/4-20 x 1-1/2"

$

$

Not available

BX

Simplicity 155038

Handle Grip

$

$

Not available

BY

Simplicity 118172

Throttle Control Assembly

$

$

Not available

BZ

Simplicity 714010

Screw,Self Tapping, #10-24 x 1"

$

$

Not available

CA

Simplicity 118157

Body Cover

$

$

Not available
