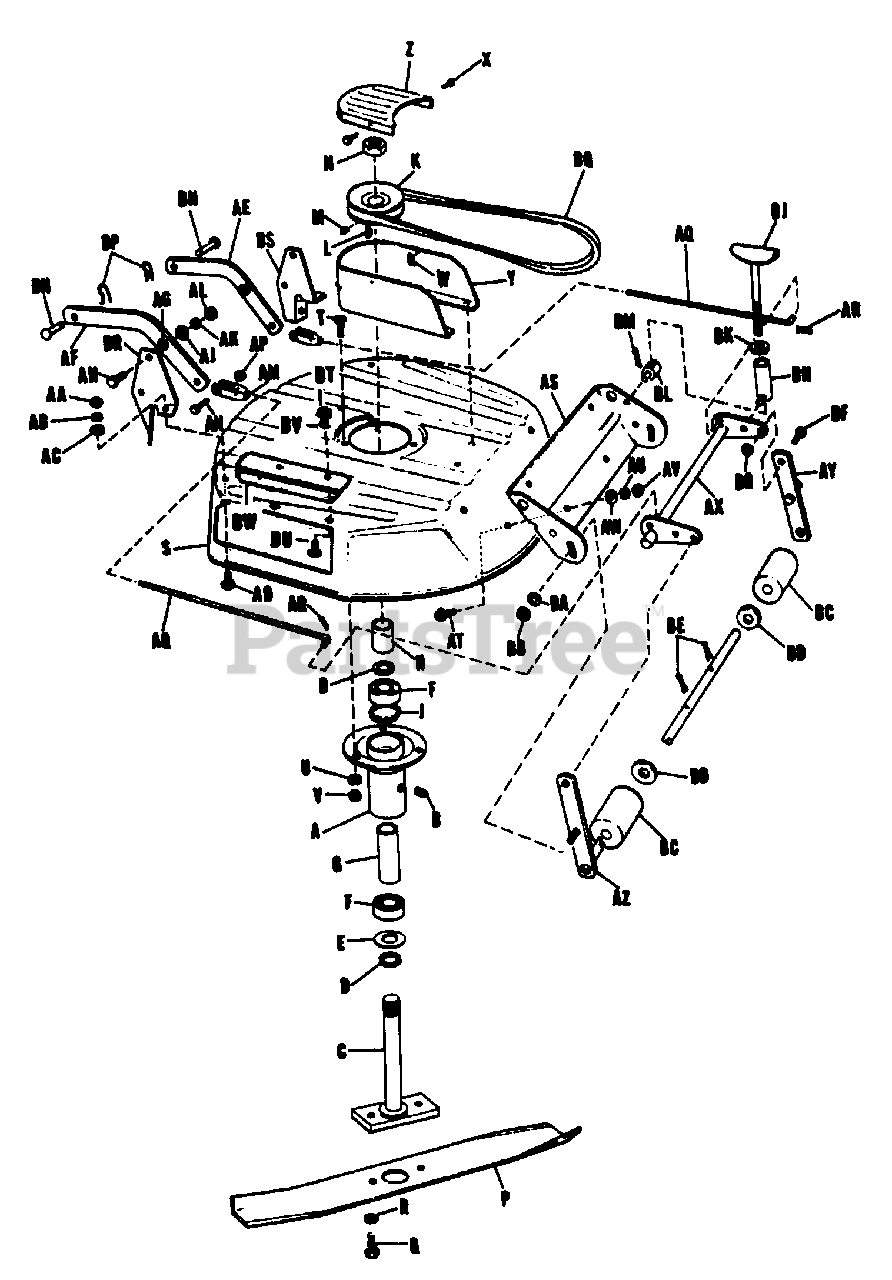

990236 - Simplicity 24" Mower Deck 24" Rotary Mower Parts Diagram

24" Mower Deck

24" Rotary Mower Parts Diagram

  • Title

A

Simplicity 2108203

Tube Assembly, Arbor

$

$

Not available

B

Simplicity 726001

Pipe Plug, 1/8

$

$

Not available

C

Simplicity 108268

Arbor Assembly

$

$

Not available

D

Simplicity 2108181

Washer

$

$

Not available

E

Simplicity 2108257SM

Washer

$6.99

$

In Stock, only 2 left!

0

F

Simplicity 2108202SM

Bearing, Ball

$11.99

$

In Stock, Qty 20+

0

G

Snapper 2108201SM

Spacer

$19.99

$

In Stock, only 2 left!

0

H

Simplicity 108145

Spacer

$

$

Not available

J

Simplicity 2108134

Backing Ring

$

$

Not available

K

Simplicity 2108246SM

Pulley

$76.99

$

Usually ships in 2-12 days

0

L

Simplicity 2725006

Woodruff, Key, 3/16 x 5/8 Dia.

$

$

Not available

M

Simplicity 2713504

Set Screw, Socket Head, 5/16-18 NC x 3/8 lg

$

$

Not available

N

Simplicity 2717517

Nut, Hex, Jam, Lock, 3/4-16 NF

$

$

Not available

P

Simplicity 108276

KnIfe Blade

$

$

Not available

Q

Simplicity 2715030

Capscrew, Hex Hd

$

$

Not available

R

Simplicity 2720002

Washer, Lock, 3/8

$

$

Not available

S

Simplicity 108269

Housing

$

$

Not available

T

Simplicity 2705004

Capscrew, Hex Hd, 3/8-16 NC x 3/4 lg

$

$

Not available

U

Simplicity 2720002

Washer, Lock, 3/8

$

$

Not available

V

Simplicity 2717003

Nut, Hex, Full, 3/8-16 NC

$

$

Not available

W

Simplicity 718009

Nut, Tinnerman

$

$

Not available

X

Simplicity 2714006

Screw, Self Tap #10 x 1/2 lg

$

$

Not available

Y

Simplicity 108275

Pulley Guard

$

$

Not available

Z

Simplicity 108104

Cover, Guard

$

$

Not available

AA

Simplicity 2717003

Nut, Hex, Full, 3/8-16 NC

$

$

Not available

AB

Simplicity 2720002

Washer, Lock, 3/8

$

$

Not available

AC

Simplicity 2719001

Washer, Plain, 3/8

$

$

Not available

AD

Simplicity 2703004

Bolt, Carriage, 3/8-16 NC x 3/4 lg

$

$

Not available

AE

Simplicity 108271

Lever, Front, R.H.

$

$

Not available

AF

Simplicity 108272

Lever, Front, L.H.

$

$

Not available

AG

Simplicity 817104

Bushing

$

$

Not available

AH

Simplicity 2705005

Capscrew, Hex Hd, 3/8-16 NC x 1 lg.

$

$

Not available

AJ

Simplicity 2719001

Washer, Plain, 3/8

$

$

Not available

AK

Simplicity 2720002

Washer, Lock, 3/8

$

$

Not available

AL

Simplicity 2717003

Nut, Hex, Full, 3/8-16 NC

$

$

Not available

AM

Simplicity 2108157SM

Clevis, Adjusting

$24.99

$

Usually ships in 2-12 days

0

AN

Simplicity 2715042

Capscrew, Hex Hd, 3/8-16 x 1 1/4

$

$

Not available

AP

Simplicity 2717510

Nut, Hex, Full Lock, 3/8-16 NC

$

$

Not available

AQ

Simplicity 108286

Rod, Height Adjusting

$

$

Not available

AR

Simplicity 2722001

Pin, Cotter, 3/32 x 3/4 lg

$

$

Not available

AS

Simplicity 108270

Roller Bracket

$

$

Not available

AT

Simplicity 2705017

Capscrew, Hex Hd, 5/16-18 NC x 3/4 lg

$

$

Not available

AU

Simplicity 2720001

Washer, Lock, 5/16

$

$

Not available

AV

Simplicity 2717001

Nut, Hex, Full, 5/16-18 NC

$

$

Not available

AW

Simplicity 2719002

Washer, Plain

$

$

Not available

AX

Simplicity 108283

Lever Assembly, Rear

$

$

Not available

AY

Simplicity 108278

Bar Assembly, Roller

$

$

Not available

AZ

Simplicity 108277

Bar & Shaft Assembly, Roller

$

$

Not available

BA

Simplicity 2719001

Washer, Plain, 3/8

$

$

Not available

BB

Simplicity 2717510

Nut, Hex, Full Lock, 3/8-16 NC

$

$

Not available

BC

Simplicity 2108178

Roller

$

$

Not available

BD

Simplicity 2116001

Washer

$

$

Not available

BE

Simplicity 2722011

Pin, Cotter, 3/16 x 1 lg

$

$

Not available

BF

Simplicity 2705005

Capscrew, Hex, Hd, 3/8-16 NC x 1 lg

$

$

Not available

BG

Simplicity 2717003

Nut, Hex, Full, 3/8-16 NC

$

$

Not available

BH

Simplicity 108287

Socket Assembly, Crank

$

$

Not available

BJ

Simplicity 2108169

Screw Assembly, Adjusting

$

$

Not available

BK

Simplicity 2719001

Washer, Plain, 3/8

$

$

Not available

BL

Simplicity 108172

Pivot

$

$

Not available

BM

Simplicity 2722001

Pin, Cotter

$

$

Not available

BN

Simplicity 100028

Pin

$18.99

$

Usually ships in 2-12 days

0

BP

Simplicity 816104

Clip, Spring

$

$

Not available

BQ

Simplicity 2108099

V-Belt

$

$

Not available

BR

Simplicity 108274

Bracket, Front, L.H.

$

$

Not available

BS

Simplicity 108273

Bracket, Front R.H.

$

$

Not available

BT

Simplicity 2717005

Nut, Full Hex, 1/4-20

$

$

Not available

BU

Simplicity 2705002

Screw, Hex Hd Cap, 1/4-20 x 1/2"

$

$

Not available

BV

Simplicity 721002

Washer,Lock

$

$

Not available

BW

Simplicity 108353

Deflector

$

$

Not available
