990244 - Simplicity 32" Mower Deck Mower Group - 32" (1217I01) Parts Diagram

32" Mower Deck

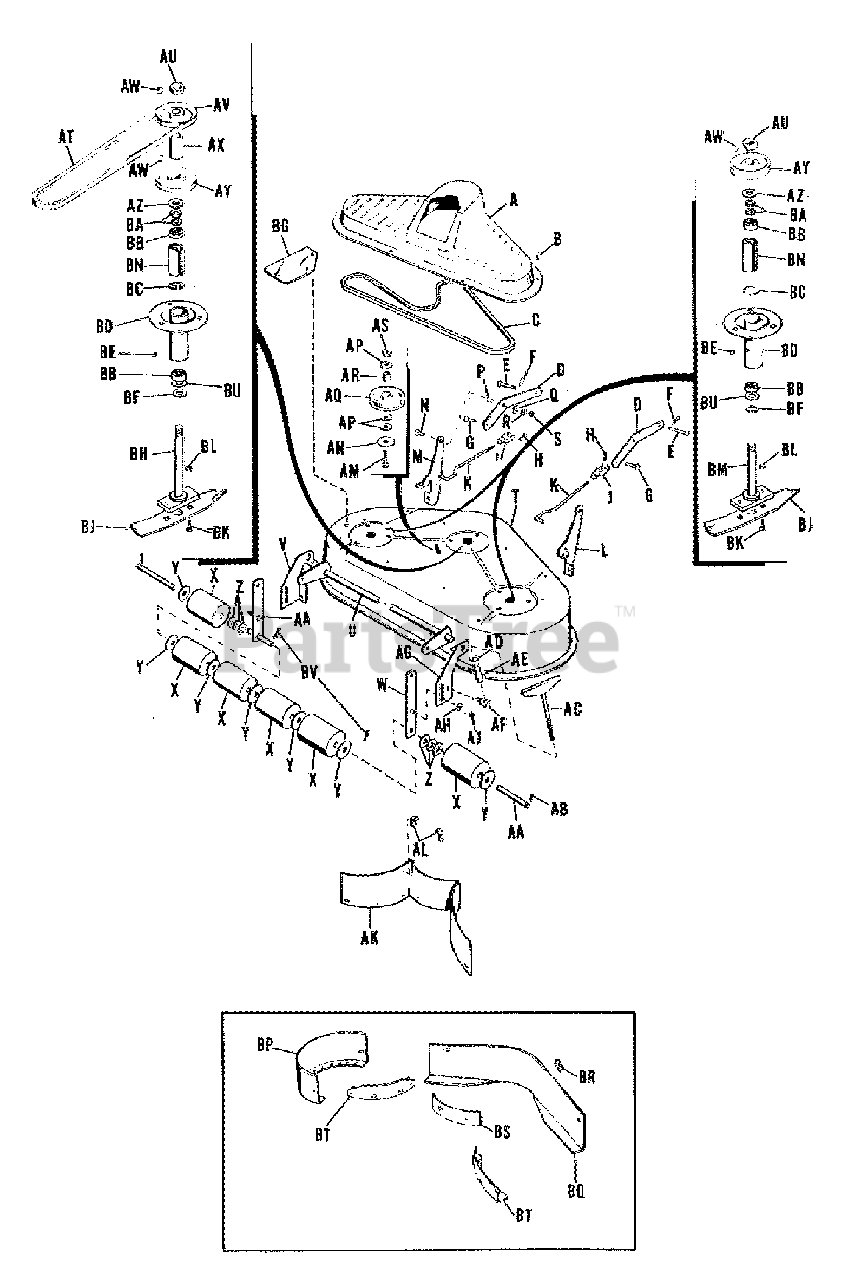

Mower Group - 32" (1217I01) Parts Diagram

  • Title

A

Simplicity 108152

COVER, Housing

$

$

Not available

B

Simplicity 2714007

SCREW, Self-Tapping, Hex Head 1/4-20 x 3/8

$

$

Not available

C

Simplicity 2108151

V-BELT, Mower Spindle Drive

$

$

Not available

D

Simplicity 108155

LEVER, Front

$

$

Not available

E

Simplicity 100028

PIN

$18.99

$

Usually ships in 2-12 days

0

F

Simplicity 1918196SM

CLIP, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 5

0

G

Simplicity 2108158

PIN,Clevis

$

$

Not available

H

Simplicity 2722001

PIN,Cotter 3/32 x 3/4

$

$

Not available

J

Simplicity 2108157SM

CLEVIS, Adjustment

$24.99

$

Usually ships in 2-12 days

0

K

Simplicity 108156

ROD, Height Adjustment

$

$

Not available

L

Simplicity 108153

BRACKET, Front, R.H.

$

$

Not available

M

Simplicity 108154

BRACKET, Front, L.H.

$

$

Not available

N

Simplicity 2705005

CAPSCREW, Hex Head, 3/8-16x1

$

$

Not available

P

Simplicity 2154177SM

BUSHING

$39.99

$

In Stock, only 4 left!

0

Q

Simplicity 2719001

WASHER, Plain, 3/8

$

$

Not available

R

Simplicity 2720002

WASHER, Lock, 3/8

$

$

Not available

S

Simplicity 2717003

NUT, Full Hex, 3/8-16

$

$

Not available

T

Simplicity 2108147

HOUSING

$

$

Not available

U

Simplicity 108160

LEVER ASSEMBLY, Rear

$

$

Not available

V

Simplicity 108163

BRACKET, Roller, L.H.

$

$

Not available

W

Simplicity 2108164

BAR ASSEMBLY, Roller

$

$

Not available

X

Simplicity 2108178

ROLLER

$

$

Not available

Y

Simplicity 2116001

WASHER

$

$

Not available

Z

Simplicity 2860164SM

WASHER

$4.49

$

In Stock, Qty 5

0

AA

Simplicity 108254

BAR & SHAFT ASSEMBLY

$

$

Not available

AB

Simplicity 2722011

PIN, Cotter

$

$

Not available

AC

Simplicity 2108169

SCREW ASSEMBLY, Adjustment

$

$

Not available

AD

Simplicity 2719001

WASHER, Plain

$

$

Not available

AE

Simplicity 2108166SM

SOCKET ASSEMBLY, Crank

$30.99

$

Usually ships in 2-12 days

0

AF

Simplicity 108172

PIVOT

$

$

Not available

AG

Simplicity 108159

BRACKET, Roller R.H.

$

$

Not available

AH

Simplicity 2719002

WASHER, Plain, 5/16

$

$

Not available

AJ

Simplicity 2717510

NUT, Hex, Full Lock 3/8

$

$

Not available

AK

Simplicity 108187

BAFFLE

$

$

Not available

AL

Simplicity 2108186SM

CLIP, Baffle

$12.99

$

In Stock, only 1 left!

0

AM

Simplicity 2703002

BOLT, Carriage, 3/8-16 x 1

$

$

Not available

AN

Simplicity 108150

WASHER

$

$

Not available

AP

Simplicity 2719002

WASHER, Plain, 5/16

$

$

Not available

AQ

Simplicity 2108149

PULLEY IDLER

$

$

Not available

AR

Simplicity 2154177SM

SPACER

$39.99

$

In Stock, only 4 left!

0

AS

Simplicity 2717510

NUT, Hex, Full Lock 3/8 - 16

$

$

Not available

AT

Simplicity 2108175

V-BELT, Cross Drive

$

$

Not available

AU

Simplicity 2717517

NUT, Hex Jam, Center Lock 3/4 - 16

$

$

Not available

AV

Simplicity 2108246SM

PULLEY, Cross Drive

$76.99

$

Usually ships in 2-12 days

0

AW

Simplicity 2725006

WOODRUFF KEY, 3/16 x 5/8, #61

$

$

Not available

AX

Simplicity 108145

SPACER

$

$

Not available

AY

Simplicity 2108142

PULLEY IDLER

$

$

Not available

AZ

Simplicity 2108181

WASHER

$

$

Not available

BA

Simplicity 2108139

FLINGER

$

$

Not available

BB

Simplicity 2108202SM

BEARING

$11.99

$

In Stock, Qty 20+

0

BC

Simplicity 2108134

RING, Backing

$

$

Not available

BD

Simplicity 2108203

TUBE ASSEMBLY, Arbor

$

$

Not available

BE

Simplicity 726001

PLUG

$

$

Not available

BF

Simplicity 2108181

WASHER

$

$

Not available

BG

Simplicity 108193

DEFLECTOR

$

$

Not available

BH

Simplicity 2108251

ARBOR ASSEMBLY, Drive

$

$

Not available

BJ

Simplicity 2108174

BLADE

$

$

Not available

BK

Simplicity 2715024

SCREW

$

$

Not available

BL

Simplicity 2720002

WASHER

$

$

Not available

BM

Simplicity 2108250SM

ARBOR ASSEMBLY

$115.99

$

Usually ships in 2-12 days

0

BN

Snapper 2108201SM

SPACER

$19.99

$

In Stock, only 2 left!

0

BU

Simplicity 2108257SM

WASHER

$6.99

$

In Stock, only 2 left!

0

BV

Simplicity 2722011

COTTER PIN

$

$

Not available

BP

Simplicity 108184

BAFFLE, Side

$

$

Not available

BQ

Simplicity 108190

BAFFLE, Mulcher, Front

$

$

Not available

BR

Simplicity 108188

CLAMP

$

$

Not available

BS

Simplicity 108191

BAFFLE, Rear Center

$

$

Not available

BT

Simplicity 108189

BAFFLE, Mulcher, Rear, Side

$

$

Not available
