990268 - Simplicity 24" Mower Deck

24" Mower Deck

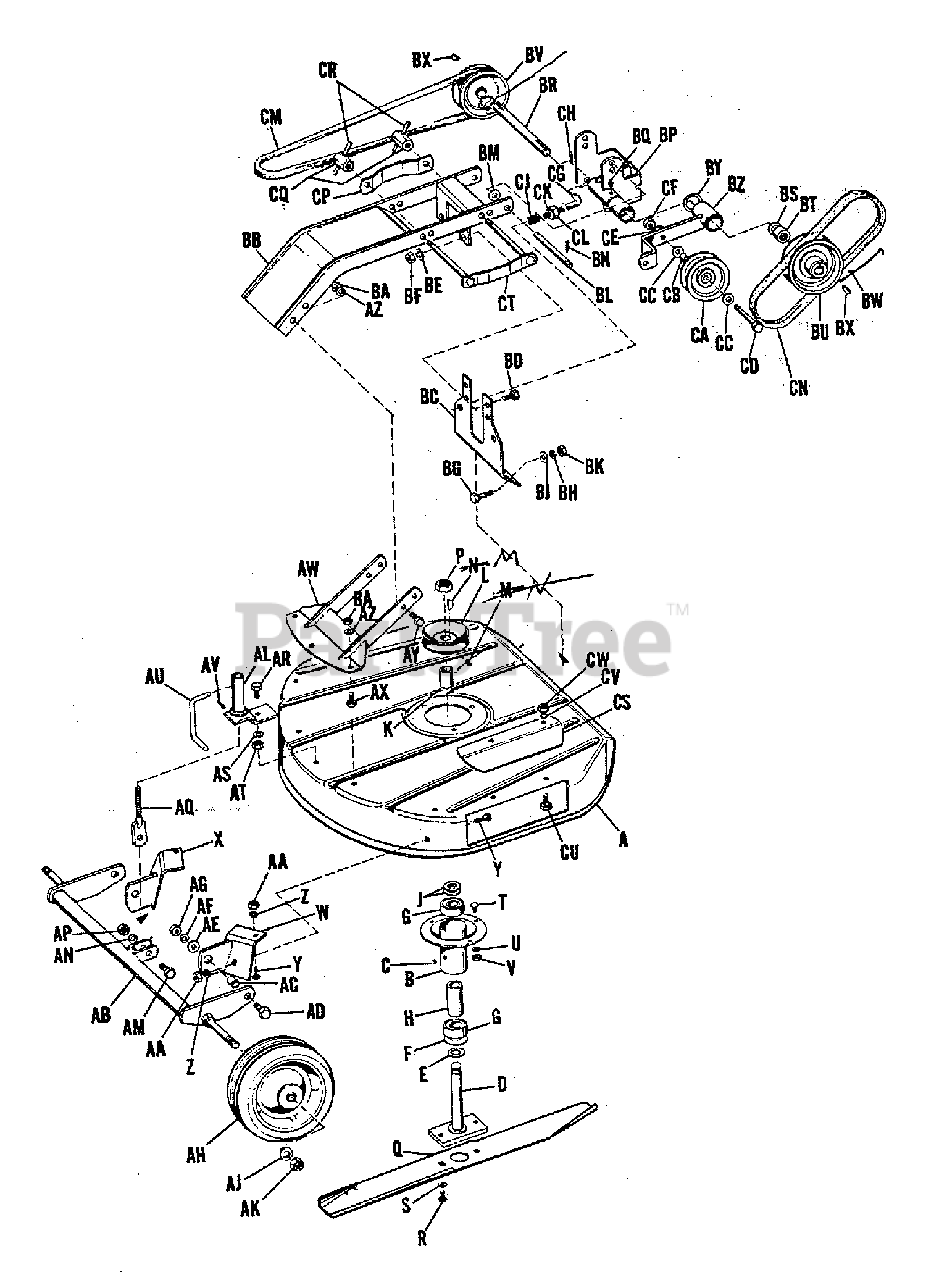

990268 - Simplicity 24" Mower Deck > Parts Diagrams (1) > Mower Group (3613I01)

  • Title
108338

A

HOUSING

Part# 108338

OEM Warranty Repair Part for Simplicity

Not available

2108203

B

ARBOR TUBE ASSEMBLY

Part# 2108203

OEM Warranty Repair Part for Simplicity

Not available

726001

C

PLUG, Pipe, 1/8" Standard

Part# 726001

OEM Warranty Repair Part for Simplicity

Not available

108268

D

ARBOR ASSEMBLY

Part# 108268

OEM Warranty Repair Part for Simplicity

Not available

2108181

E

WASHER

Part# 2108181

OEM Warranty Repair Part for Simplicity

Not available

2108257SM

F

WASHER

Part# 2108257SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $4.53

2108202SM

G

BEARING, Radial

Part# 2108202SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 1 business day

Your price: $10.45

2108201SM

H

SPACER

Part# 2108201SM

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 6 to 12 business days

Your price: $13.36

2108181

J

WASHER

Part# 2108181

OEM Warranty Repair Part for Simplicity

Not available

108145

K

SPACER

Part# 108145

OEM Warranty Repair Part for Simplicity

Not available

2108246SM

L

PULLEY

Part# 2108246SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 6 to 12 business days

Your price: $62.16

2725006

M

KEY, Woodruff

Part# 2725006

OEM Warranty Repair Part for Simplicity

Not available

2713504

N

SCREW, Set, Socket Head, Cup Point, 5/16-18 NC x 3/8" Lg.

Part# 2713504

OEM Warranty Repair Part for Simplicity

Not available

2717517

P

NUT, Hex, Full Lock, 3/4"-16 NF

Part# 2717517

OEM Warranty Repair Part for Simplicity

Not available

108276

Q

BLADE, Knife

Part# 108276

OEM Warranty Repair Part for Simplicity

Not available

2715030

R

CAPSCREW, Hex, 3/8"-16 x 3/4" Lg.

Part# 2715030

OEM Warranty Repair Part for Simplicity

Not available

2720002

S

LOCKWASHER, 3/8"

Part# 2720002

OEM Warranty Repair Part for Simplicity

Not available

2705004

T

CAPSCREW, Hex, 3/8"-16 x 3/4" Lg.

Part# 2705004

OEM Warranty Repair Part for Simplicity

Not available

2720002

U

LOCKWASHER, 3/8"

Part# 2720002

OEM Warranty Repair Part for Simplicity

Not available

2717003

V

NUT, Hex, Full, 3/8"-16 NC

Part# 2717003

OEM Warranty Repair Part for Simplicity

Not available

108339

W

BRACKET ASSEMBLY, Front, R.H.

Part# 108339

OEM Warranty Repair Part for Simplicity

Not available

108342

X

BRACKET ASSEMBLY, Front, L.H.

Part# 108342

OEM Warranty Repair Part for Simplicity

Not available

2702003

Y

CARRIAGE BOLT, 3/8-16 NC x 3/4" Lg.

Part# 2702003

OEM Warranty Repair Part for Simplicity

Not available

2720002

Z

LOCKWASHER, 3/8"

Part# 2720002

OEM Warranty Repair Part for Simplicity

Not available

2717003

AA

NUT, Hex, Full, 3/8-16 NC

Part# 2717003

OEM Warranty Repair Part for Simplicity

Not available

108344

AB

FRONT AXLE ASSEMBLY

Part# 108344

OEM Warranty Repair Part for Simplicity

Not available

2153081

AC

SPACER

Part# 2153081

OEM Warranty Repair Part for Simplicity

Not available

2705005

AD

CAPSCREW, Hex, 3/8"-16 NC x 1" Lg.

Part# 2705005

OEM Warranty Repair Part for Simplicity

Not available

2719001

AE

WASHER, Plain, 3/8" Standard

Part# 2719001

OEM Warranty Repair Part for Simplicity

Not available

2720002

AF

LOCKWASHER, 3/8"

Part# 2720002

OEM Warranty Repair Part for Simplicity

Not available

2717003

AG

NUT, Hex, Full, 3/8"-16 NC

Part# 2717003

OEM Warranty Repair Part for Simplicity

Not available

108313

AH

WHEEL ASSEMBLY

Part# 108313

OEM Warranty Repair Part for Simplicity

Not available

2720004

AJ

LOCKWASHER, 1/2"

Part# 2720004

OEM Warranty Repair Part for Simplicity

Not available

2717006

AK

NUT, Hex, Full, 1/2"-13 NC

Part# 2717006

OEM Warranty Repair Part for Simplicity

Not available

108347

AL

BRACKET ASSEMBLY, Crank

Part# 108347

OEM Warranty Repair Part for Simplicity

Not available

2705031

AM

CAPSCREW, Hex, 3/8"-16 NC x 7/8" Lg.

Part# 2705031

OEM Warranty Repair Part for Simplicity

Not available

2717510

AN

LOCKWASHER, 3/8"

Part# 2717510

OEM Warranty Repair Part for Simplicity

Not available

2717510

AP

LOCKNUT

Part# 2717510

OEM Warranty Repair Part for Simplicity

Not available

108322

AQ

SCREW ASSEMBLY, Height Adjusting

Part# 108322

OEM Warranty Repair Part for Simplicity

Not available

2705016

AR

CAPSCREW, Hex, 3/8"-16 NC x 1-1/4

Part# 2705016

OEM Warranty Repair Part for Simplicity

Not available

2720002

AS

LOCKWASHER, 3/8"

Part# 2720002

OEM Warranty Repair Part for Simplicity

Not available

2717003

AT

NUT, Hex, Full, 3/8"-16 NC

Part# 2717003

OEM Warranty Repair Part for Simplicity

Not available

108325

AU

CRANK, Height Adjusting

Part# 108325

OEM Warranty Repair Part for Simplicity

Not available

2722001

AV

PIN, Cotter, 3/32" x 3/4" Lg.

Part# 2722001

OEM Warranty Repair Part for Simplicity

Not available

108349

AW

SUPPORT ASSEMBLY, Front

Part# 108349

OEM Warranty Repair Part for Simplicity

Not available

2705004

AX

CAPSCREW, Hex, 3/8"-16 NC x 3/4" Lg.

Part# 2705004

OEM Warranty Repair Part for Simplicity

Not available

2705005

AY

CAPSCREW, Hex, 3/8"-16 NC x 1" Lg.

Part# 2705005

OEM Warranty Repair Part for Simplicity

Not available

2720002

AZ

WASHER, Lock, 3/8"

Part# 2720002

OEM Warranty Repair Part for Simplicity

Not available

2717003

BA

NUT, Hex, Full, 3/8"-16 NC

Part# 2717003

OEM Warranty Repair Part for Simplicity

Not available

108002

BB

ARM ASSEMBLY, Push

Part# 108002

OEM Warranty Repair Part for Simplicity

Not available

108352

BC

REAR BRACKET

Part# 108352

OEM Warranty Repair Part for Simplicity

Not available

2705004

BD

CAPSCREW, Hex, 3/8"-16 NC x 3/4" Lg.

Part# 2705004

OEM Warranty Repair Part for Simplicity

Not available

2720002

BE

LOCKWASHER, 3/8"

Part# 2720002

OEM Warranty Repair Part for Simplicity

Not available

2717003

BF

NUT, Hex, Full, 3/8"-16 NC

Part# 2717003

OEM Warranty Repair Part for Simplicity

Not available

2705017

BG

CAPSCREW, Hex, 5/16"-18 NC x 3/4" Lg.

Part# 2705017

OEM Warranty Repair Part for Simplicity

Not available

2720001

BH

LOCKWASHER, 5/16"

Part# 2720001

OEM Warranty Repair Part for Simplicity

Not available

2719002

BJ

WASHER, Plain, 5/16"

Part# 2719002

OEM Warranty Repair Part for Simplicity

Not available

2717001

BK

NUT, Hex, Full, 5/16"-18 NC

Part# 2717001

OEM Warranty Repair Part for Simplicity

Not available

108035

BL

PIN, Pivot

Part# 108035

OEM Warranty Repair Part for Simplicity

Not available

2719001

BM

WASHER, Plain, 3/8"

Part# 2719001

OEM Warranty Repair Part for Simplicity

Not available

2722005

BN

PIN, Cotter, 3/32" x 7/8" Lg.

Part# 2722005

OEM Warranty Repair Part for Simplicity

Not available

108330

BP

BRACKET ASSEMBLY, Drive

Part# 108330

OEM Warranty Repair Part for Simplicity

Not available

2727002

BQ

FITTING, Grease, #1641 Alemite

Part# 2727002

OEM Warranty Repair Part for Simplicity

Not available

108014

BR

SHAFT, Idler

Part# 108014

OEM Warranty Repair Part for Simplicity

Not available

2116001

BS

WASHER

Part# 2116001

OEM Warranty Repair Part for Simplicity

Not available

2108054

BT

BEARING, Needle

Part# 2108054

OEM Warranty Repair Part for Simplicity

Not available

108334

BU

PULLEY

Part# 108334

OEM Warranty Repair Part for Simplicity

Not available

108025

BV

PULLEY

Part# 108025

OEM Warranty Repair Part for Simplicity

Not available

2713501

BW

SCREW, Set, Hollow Head, Cup Point, 5/16-18 NC x 1/2" Lg.

Part# 2713501

OEM Warranty Repair Part for Simplicity

Not available

2725003

BX

KEY, Woodruff, #9

Part# 2725003

OEM Warranty Repair Part for Simplicity

Not available

8151063

BY

RING, Retaining

Part# 8151063

OEM Warranty Repair Part for Simplicity

Not available

108032

BZ

LEVER ASSEMBLY, Idler

Part# 108032

OEM Warranty Repair Part for Simplicity

Not available

2154310

CA

PULLEY, Idler

Part# 2154310

OEM Warranty Repair Part for Simplicity

Not available

2154177SM

CB

BUSHING

Part# 2154177SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 6 to 12 business days

Your price: $26.83

2719002

CC

WASHER, Plain, 5/16"

Part# 2719002

OEM Warranty Repair Part for Simplicity

Not available

2705010

CD

CAPSCREW, Hex, 3/8"-16 NC x 1-3/4"

Part# 2705010

OEM Warranty Repair Part for Simplicity

Not available

2720002

CE

WASHER, Lock, 3/8"

Part# 2720002

OEM Warranty Repair Part for Simplicity

Not available

2717003

CF

NUT, Hex, Full, 3/8"-16 NC

Part# 2717003

OEM Warranty Repair Part for Simplicity

Not available

2108034

CG

ROD

Part# 2108034

OEM Warranty Repair Part for Simplicity

Not available

2722005

CH

PIN, Cotter, 3/32" x 7/8" Lg.

Part# 2722005

OEM Warranty Repair Part for Simplicity

Not available

108335

CJ

SPRING

Part# 108335

OEM Warranty Repair Part for Simplicity

Not available

2719002

CK

WASHER, Plain, 5/16"

Part# 2719002

OEM Warranty Repair Part for Simplicity

Not available

2717013

CL

NUT, Hex, Jam, 3/8"-16 NC

Part# 2717013

OEM Warranty Repair Part for Simplicity

Not available

2108012

CM

BELT, "V" (Cross Drive)

Part# 2108012

OEM Warranty Repair Part for Simplicity

Not available

2158573SM

CN

BELT, "V" (Drive)

Part# 2158573SM

OEM Warranty Repair Part for Simplicity

Usually leaves our warehouse in 6 to 12 business days

Your price: $17.78

103001

CP

PLATE, Hitch, Side

Part# 103001

OEM Warranty Repair Part for Simplicity

Not available

8161041

CQ

NUT, Body

Part# 8161041

OEM Warranty Repair Part for Simplicity

Not available

8161042

CR

HANDLE, "T"

Part# 8161042

OEM Warranty Repair Part for Simplicity

Not available

108353

CS

DEFLECTOR

Part# 108353

OEM Warranty Repair Part for Simplicity

Not available

8162501

CT

CLAMP ASSEMBLY, Hitch

Part# 8162501

OEM Warranty Repair Part for Simplicity

Not available

2705002

CU

CAPSCREW, Hex, 1/4"-20 NC x 1/2" Lg.

Part# 2705002

OEM Warranty Repair Part for Simplicity

Not available

721002

CV

LOCKWASHER, 1/4"

Part# 721002

OEM Warranty Repair Part for Simplicity

Not available

2717005

CW

NUT, Hex, Full, 1/4"-20 NC

Part# 2717005

OEM Warranty Repair Part for Simplicity

Not available
