990273 - Simplicity 3 Gang Mower 3" GANG MOWER Parts Diagram

3 Gang Mower

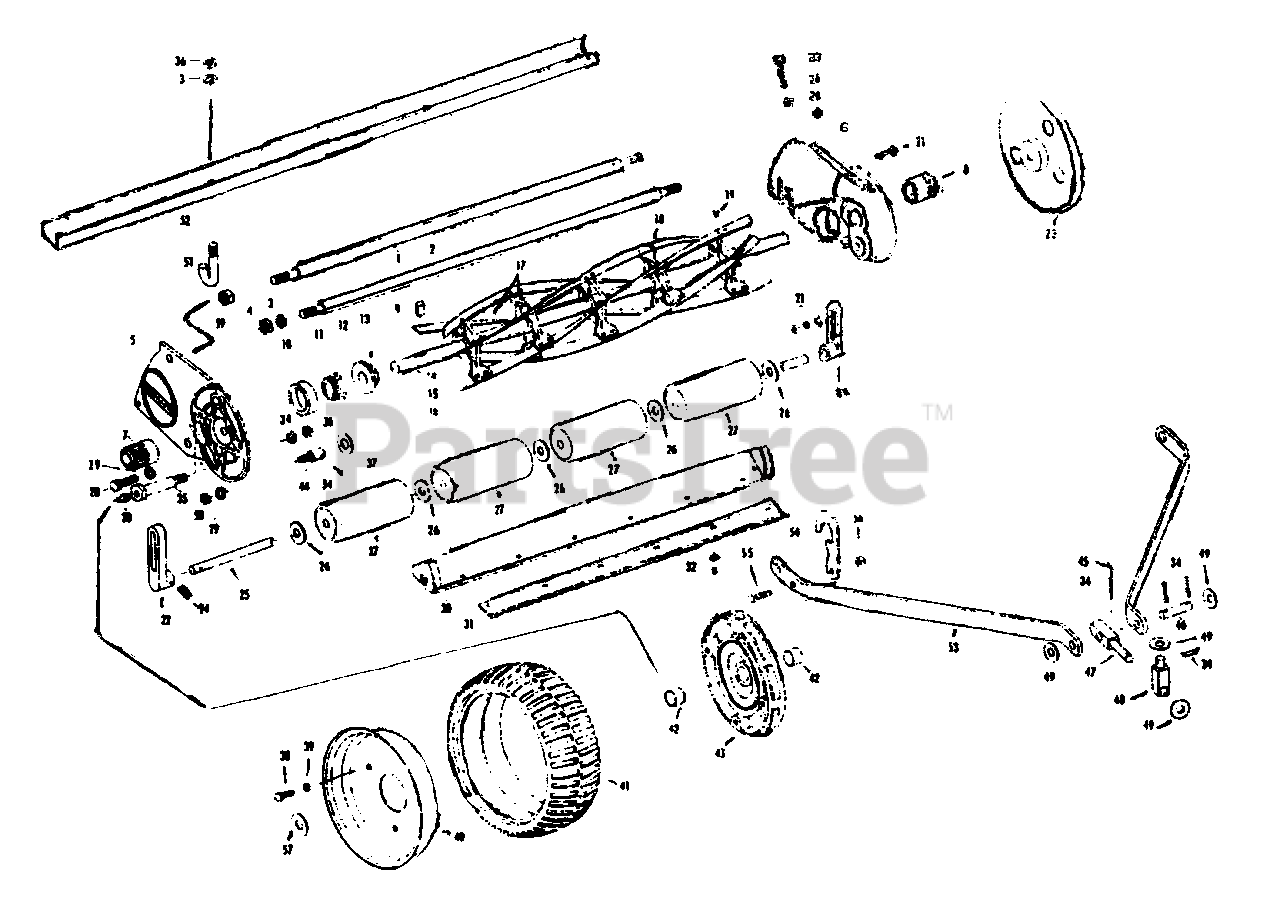

3" GANG MOWER Parts Diagram

  • Title

1

Simplicity 2100081

TIE ROD

Note: (Rear)

$

$

Currently unavailable

2

Simplicity 100082

Tie Rod for Front

$

$

Not available

3

Simplicity 2720004

WASHER, Lock 1/2" Regular

$

$

Not available

4

Simplicity 2717017

Hex Nut, Full, 1/2"-13

$

$

Not available

5

Simplicity 100146

Side Plate, R.H.

$

$

Not available

6

Simplicity 100147

Side Plate, L.H.

$

$

Not available

7

Simplicity 100086

Pinion, LH (from Front of Mower)

$

$

Not available

8

Simplicity 100085

Pinion, RH (from Front of Mower)

$

$

Not available

9

Simplicity 100087

Pawl

$

$

Not available

10

Simplicity 100088

Bearing Cup for Spiral Cutter

$

$

Not available

11

Simplicity 100089

Bearing for Spiral Cutter

$

$

Not available

12

Simplicity 100090

Collar for Spiral Cutter Shaft

$9.99

$

Usually ships in 2-12 days

0

13

Simplicity 2713503

Screw, Set, Cup Point, Socket Head, 5/16"-18 N.C. x 5/16" lg.

$

$

Not available

14to19

Simplicity 100148

Spiral Cutter with Shaft

$

$

Not available

14

Shaft for Spiral Cutter

$

$

Not available

15

Knife for Spiral Cutter

$

$

Not available

16

Rivet for Spider

$

$

Not available

17

Spider, R.H., for Spiral Cutter

$

$

Not available

18

Spider, L.H., for Spiral Cutter

$

$

Not available

19

Simplicity 100097

Set Screw for Spider

$

$

Not available

20

Simplicity 2727002

Fitting, Grease, Alemite No. 1641

$

$

Not available

21

Simplicity 2702008

Carriage Bolt, 5/16"-18 x 1-1/4" lg.

$

$

Not available

21

Simplicity 2719002

Plain Washer, 5/16" (Mfg. No. 920)

$

$

Not available

21

Simplicity 2720001

Lockwasher, External 1/4" (Mfg. Nos. 953 & 954)

$

$

Not available

21

Simplicity 2717001

Hex Nut, Full, 5/16"-18" NC (For "725" Only-Rear)

$

$

Not available

22

Simplicity 100098

Roller Bracket, R. or L.

$

$

Not available

23

Simplicity 100099

Wheel Cover, R.H.

$

$

Not available

23

Simplicity 100100

Sealant-Liquid
(Superseded to 100106)

$14.99

$

In Stock, only 1 left!

0

24

Simplicity 2723011

Roll Pin for Roller Brackets

$

$

Not available

25

Simplicity 100101

Shaft for Roller

$

$

Not available

26

Simplicity 2719004

WASHER, Plain, 1/2" Standard

$

$

Not available

27

Simplicity 100102

Wood Roller Section (4 Sectional)

$

$

Not available

28

Simplicity 2705042

Capscrew, Hex Hd., 7/16"-14 NC x 1-1/4" lg.

$

$

Not available

29

Simplicity 2720006

Lockwasher 7/16" Henry #918199

$

$

Not available

30to32

Simplicity 100103

Bar with Knife

$

$

Not available

30

Simplicity 100104

Knife Bar

$53.99

$

Usually ships in 2-12 days

0

31

Simplicity 100105

Lower Knife

$

$

Not available

32

Simplicity 100106

SEALANT, Liquid

$14.99

$

In Stock, only 1 left!

0

32

Simplicity 2720003

Lock Washer, 1/4" (Not used on 308 & 314)

$

$

Not available

33

Simplicity 100152

Adjusting Screw for Knife Bar

$

$

Not available

34

Simplicity 2100108

Cotter Pins

$

$

Not available

35

Simplicity 100109

Wheel Stud Assy., w/Nut & Washers

$

$

Not available

36

Simplicity 2717016

Nut, Hex, Full, 1/2"-20 NF

$

$

Not available

37

Simplicity 100110

Flat Washer

$31.99

$

Usually ships in 2-12 days

0

38

Simplicity 2705012

Screw, Cap, Hex., 5/16"-18 N.C. x 5/8" lg.

$

$

Not available

39

Simplicity 2720001

Lockwasher, External 1/4" (Mfg. Nos. 953 & 954)

$

$

Not available

40

Simplicity 100111

Wheel 1/2 Section

$

$

Not available

41

Simplicity 100112

Tire for Wheel

$

$

Not available

42

Simplicity 100113

Bearing for Wheel (2 in each Wheel)

$

$

Not available

43

Simplicity 100114

FUEL STABILIZER 8 OZ
(Superseded to 100118A)

$15.99

$

Usually ships in 2-12 days

0

44

Simplicity 100115

FUEL ADDITIVE 16 OZ
(Superseded to 100119A)

$21.99

$

Usually ships in 2-12 days

0

50

Simplicity 717015

Hex Nut for Tie Iron Stud

$

$

Not available

57

Simplicity 100124

Flat Washer

$96.99

$

Usually ships in 2-12 days

0

58

Simplicity 2100155

Hex Nut, Jam, 3/8"-24

$

$

Not available

59

Simplicity 2100156

Lock Nut, 1/2"-13

$

$

Not available
