990274 - Simplicity Carry-All Box CARRY-ALL BOX Parts Diagram

Carry-All Box

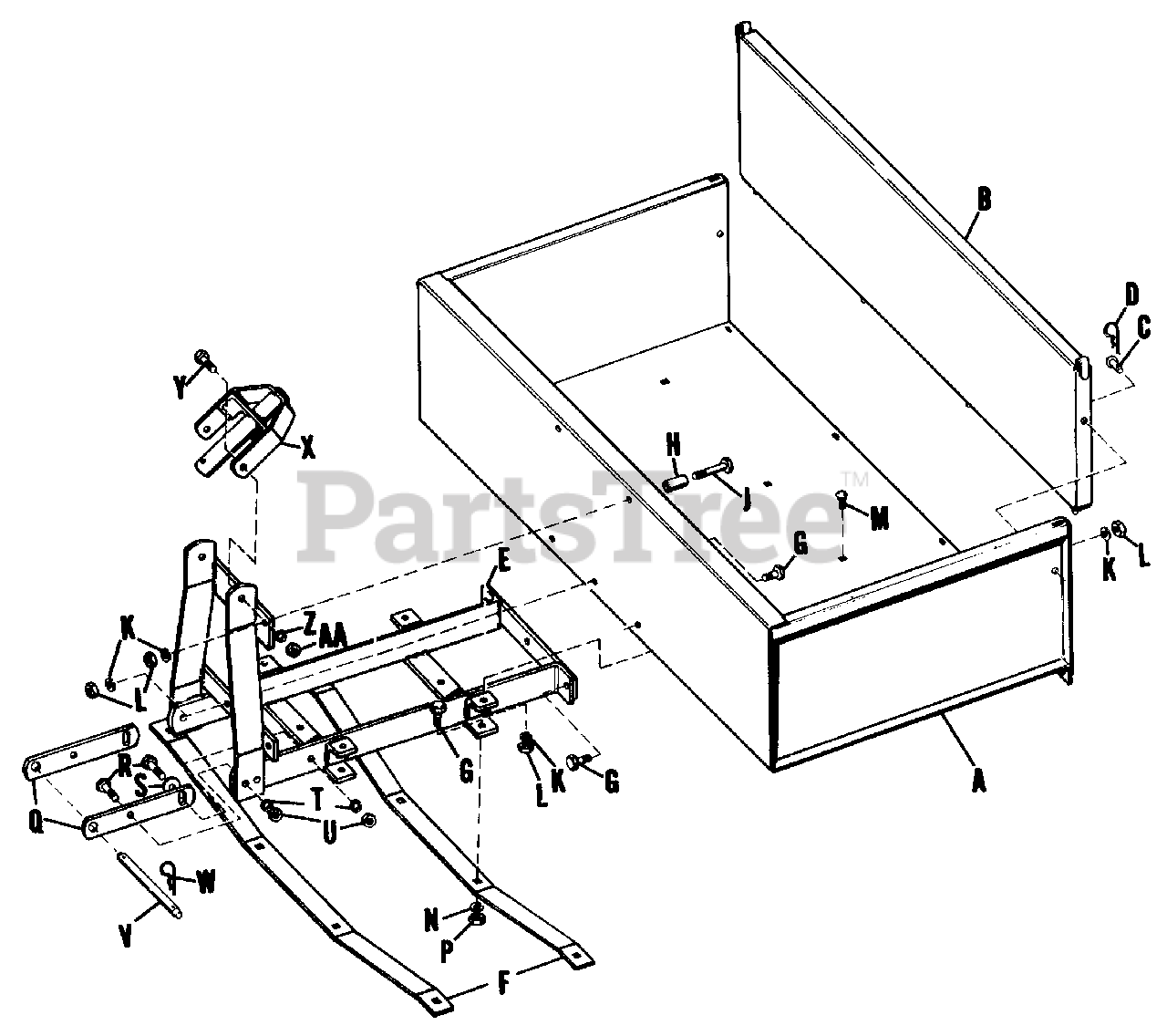

CARRY-ALL BOX Parts Diagram

  • Title

A

Simplicity 154488

Box, Carry-All

$

$

Not available

B

Simplicity 154489

Gate, End

$

$

Not available

C

Simplicity 1708298SM

Pin, Lock

$

$

Not available

D

Simplicity 1918196SM

Clip, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, only 2 left!

0

E

Simplicity 154490

Frame Assembly, Box

$

$

Not available

F

Simplicity 154496

Strap

$

$

Not available

G

Simplicity 2705007

Hex Capscrew, 5/16"-18 NC x 1" lg.

$

$

Not available

H

Simplicity 154497

Spacer

$

$

Not available

J

Simplicity 2705020

Hex Capscrew, 5/16-18 NC x 2" lg.

$

$

Not available

K

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

L

Simplicity 2717001

Hex Nut, Full, 5/16"-18 NC

$

$

Not available

M

Simplicity 2702015

Carriage Bolt, 5/16"-18 NC x 3/4" lg.

$

$

Not available

N

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

P

Simplicity 2717001

Hex Nut, Full, 5/16"-18 NC

$

$

Not available

Q

Simplicity 154498

Arm

$

$

Not available

R

Simplicity 2705016

Hex Capscrew, 3/8"-16 NC x 1 1/4" lg.

$

$

Not available

S

Simplicity 2719001

Washer, Plain

$

$

Not available

T

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

U

Simplicity 2717003

Hex Nut, Full, 3/8"-16 NC

$

$

Not available

V

Simplicity 105140

Pivot Rod

$

$

Not available

W

Simplicity 1918196SM

Clip, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, only 2 left!

0

X

Simplicity 154499

Bail Assembly

$

$

Not available

Y

Simplicity 2705005

Hex Capscrew, 3/8"-16 NC x 1" lg.

$

$

Not available

Z

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

AA

Simplicity 2717003

Hex Nut, Full, 3/8"-16 NC

$

$

Not available
