990275 - Simplicity 5 Gang Mower GANG MOWER Parts Diagram

5 Gang Mower

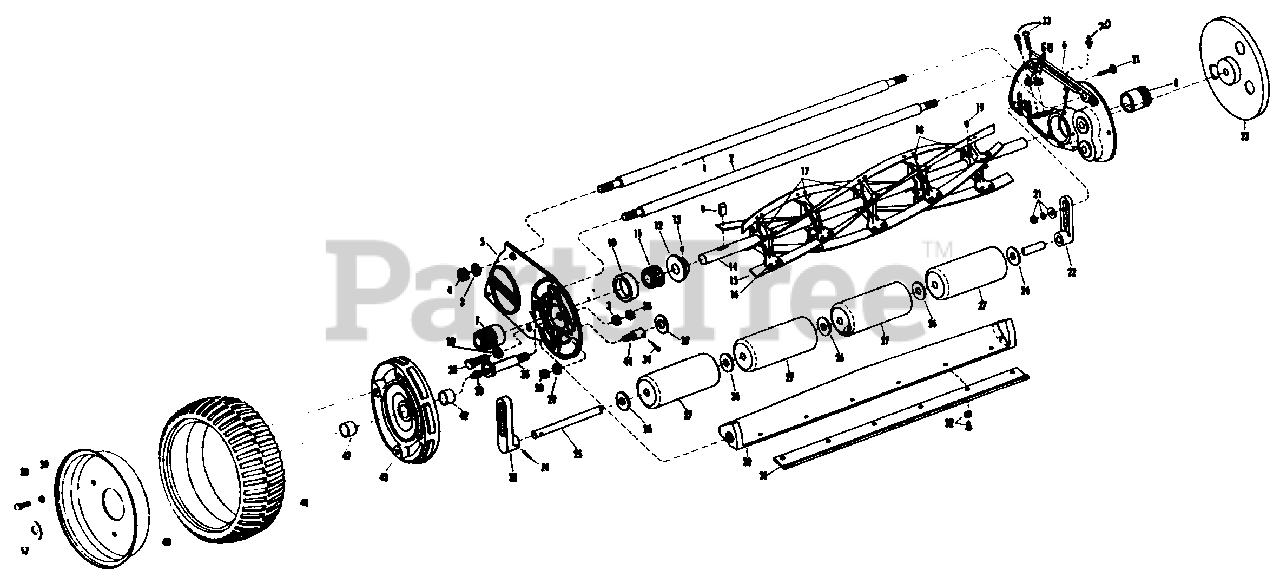

GANG MOWER Parts Diagram

  • Title

1

Simplicity 100081

Tie Rod for Rear

$

$

Not available

2

Simplicity 100082

Tie Rod for Front

$

$

Not available

3

Simplicity 2720004

Lock Washer

$

$

Not available

4

Simplicity 2717017

Hex Nut

$

$

Not available

5

Simplicity 100146

Side Plate, R.H.

$

$

Not available

6

Simplicity 100147

Side Plate, L.H.

$

$

Not available

7

Simplicity 100086

Pinion, LH (From Front of Mower)

$

$

Not available

8

Simplicity 100085

Pinion, RH (From Front of Mower)

$

$

Not available

9

Simplicity 100087

Pawl

$

$

Not available

10

Simplicity 100088

Bearing Cup for Spiral Cutter

$

$

Not available

11

Simplicity 100089

Bearing for Spiral Cutter

$

$

Not available

12

Simplicity 100090

Collar for Spiral Cutter Shaft

$9.99

$

Usually ships in 2-12 days

0

13

Simplicity 2713503

Allen Set Screw for Collar

$

$

Not available

14

Shaft for Spiral Cutter

$

$

Not available

15

Knife for Spiral Cutter

$

$

Not available

16

Rivet for Spider

$

$

Not available

17

Spider, RH, for Spiral Cutter

$

$

Not available

18

Spider, LH, for Spiral Cutter

$

$

Not available

19

Simplicity 100097

Set Screw for Spider

Note: 100103 Bar with Knife

$

$

Not available

20

Simplicity 2727002

Zerk Grease Fitting

$

$

Not available

21

Simplicity 2702008

Bolt Assembly for Roller Bracket

$

$

Not available

21

Simplicity 2719002

Bolt Assembly for Roller Bracket

$

$

Not available

21

Simplicity 2720001

Bolt Assembly for Roller Bracket

$

$

Not available

21

Simplicity 2717001

Bolt Assembly for Roller Bracket

$

$

Not available

22

Simplicity 100098

Roller Bracket, R. or L.

$

$

Not available

23

Simplicity 100099

Wheel Cover, RH

$

$

Not available

23

Simplicity 100100

Wheel Cover, LH
(Superseded to 100106)

$14.99

$

Usually ships in 2-12 days

0

24

Simplicity 2723011

Roll Pin for Roller Bracket

$

$

Not available

25

Simplicity 100101

Shaft for Roller

$

$

Not available

26

Simplicity 2719004

Flat Washer for Roller

$

$

Not available

27

Simplicity 100102

Wood Roller Section (4 Sectional)

$

$

Not available

28

Simplicity 2705042

Pivot Screw for Knife Bar

$

$

Not available

29

Simplicity 2720006

Lock Washer

$

$

Not available

30

Simplicity 100104

Knife Bar

Note: 100103 Bar with Knife

$53.99

$

Usually ships in 2-12 days

0

31

Simplicity 100105

Lower Knife

Note: 100103 Bar with Knife

$

$

Not available

32

Simplicity 2101106SM

Screw Assembly for Lower Knife

Note: 100103 Bar with Knife

$86.99

$

Usually ships in 2-12 days

0

32

Simplicity 2720003

Screw Assembly for Lower Knife

Note: 100103 Bar with Knife

$

$

Not available

33

Simplicity 100152

Adjusting Screw for Knife Bar

$

$

Not available

34

Simplicity 2100108

Cotter Pin

$

$

Not available

35

Simplicity 100109

Wheel Stud Assy., w/Nut & Washers

$

$

Not available

36

Simplicity 2717016

Hex Nut for Wheel Stud

$

$

Not available

37

Simplicity 100110

Flat Washer

$31.99

$

Usually ships in 2-12 days

0

38

Simplicity 2705012

Cap Screw for Wheel

$

$

Not available

39

Simplicity 2720001

Lock Washer for Wheel

$

$

Not available

40

Simplicity 100111

Wheel 1/2 Section

$

$

Not available

41

Simplicity 100112

Tire for Wheel

$

$

Not available

42

Simplicity 100113

Bearing for Wheel (2 in ea. Wheel)

$

$

Not available

43

Simplicity 100114

Hub and Gear for Drive Wheel
(Superseded to 100118A)

$15.99

$

Usually ships in 2-12 days

0

44

Simplicity 100115

Stud for Tie Iron
(Superseded to 100119A)

$21.99

$

Usually ships in 2-12 days

0

50

Simplicity 717015

Hex Nut for Tie Iron Stud

$

$

Not available

57

Simplicity 100124

Flat Washer

$96.99

$

Usually ships in 2-12 days

0

58

Simplicity 2100155

Hex Nut, Jam, 3/8"-24

$

$

Not available

59

Simplicity 2100156

Lock Nut, 1/2"-13

$

$

Not available
