990275 - Simplicity 5 Gang Mower HITCH ASSEMBLY Parts Diagram

5 Gang Mower

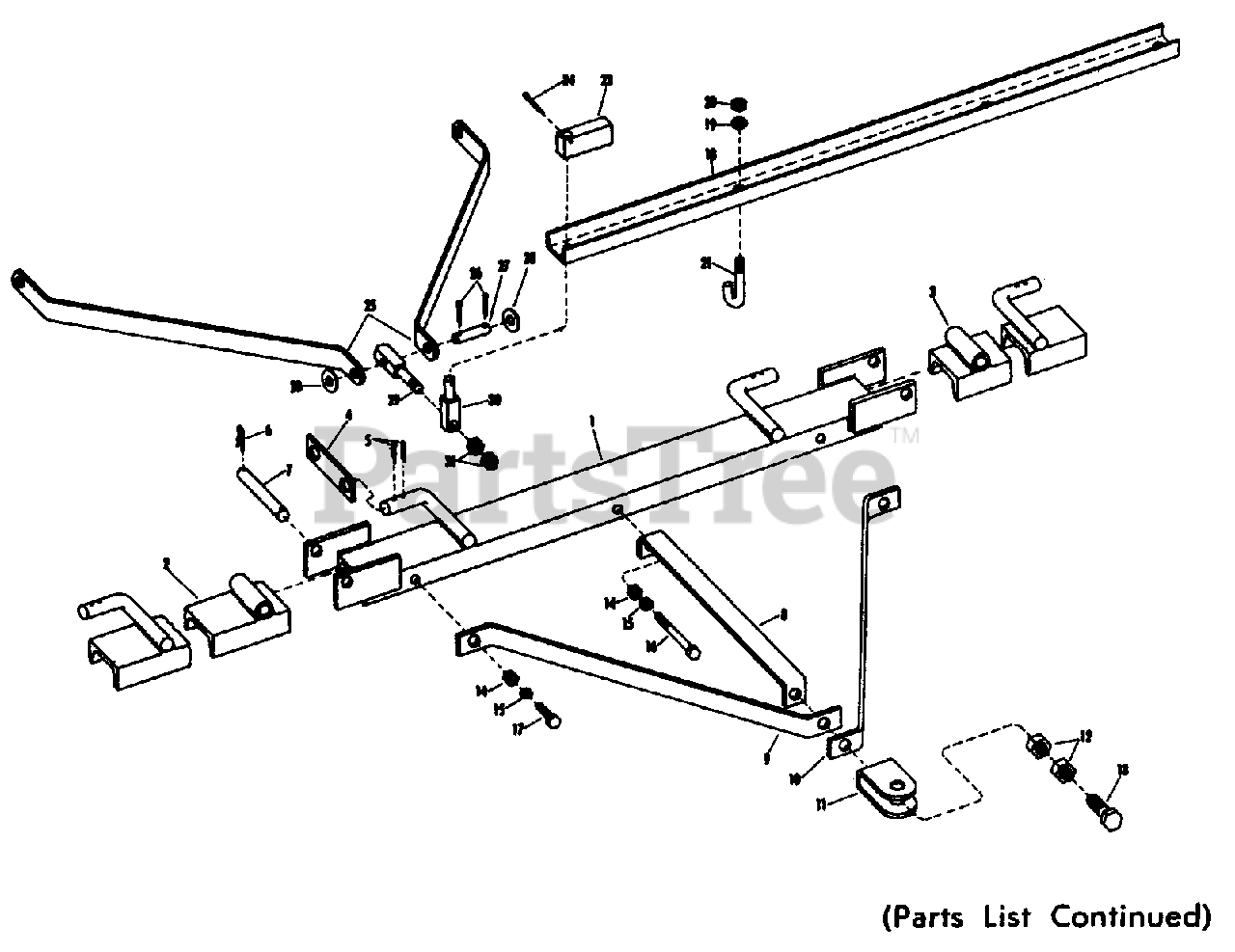

HITCH ASSEMBLY Parts Diagram

  • Title

1

Simplicity 100125

Front Draw Bar w/Spindles-Center

$184.99

$

Usually ships in 2-12 days

0

2

Simplicity 100126

Front Draw Bar w/Spindles-RH Side

$3.49

$

In Stock, Qty 20+

0

3

Simplicity 100127

Front Draw Bar w/Spindles-LH Side

$

$

Not available

4

Simplicity 100128

Connecting Link-Spindle

$

$

Not available

5

Simplicity 100129

Cotter Pin

$

$

Not available

6

Simplicity 100130

Hair Pin Cotter for Channel Pivot Pin

$

$

Not available

7

Simplicity 100131

Pin, Channel Pivot

$

$

Not available

8

Simplicity 100132

Tie Iron, Center, Front Hitch

$

$

Not available

9

Simplicity 100133

Tie Iron, RH, Front Hitch

$

$

Not available

10

Simplicity 100134

Tie Iron, LH, Front Hitch

$

$

Not available

11

Simplicity 100135

Swivel Hitch, Front

$

$

Not available

12

Simplicity 2717004

Hex Nut

$

$

Not available

13

Simplicity 100136

Cap Screw

$

$

Not available

14

Simplicity 2717013

Hex Nut

$

$

Not available

15

Simplicity 2720002

Lock Washer

$

$

Not available

16

Simplicity 100138

Cap Screw

$

$

Not available

17

Simplicity 2705005

Cap Screw

$

$

Not available

18

Simplicity 100121

Rear Draw Bar
(Superseded to 100117)

$7.99

$

Usually ships in 2-12 days

0

19

Simplicity 2720004

Lock Washer

$

$

Not available

20

Simplicity 2717017

Hex Nut

$

$

Not available

21

Simplicity 100120

J Bolt for Draw Bar
(Superseded to 100120A)

$

$

Not available

22

Simplicity 100139

Lock Nut

$

$

Not available

23

Simplicity 100157

Swivel Stop

$5.99

$

Usually ships in 2-12 days

0

24

Simplicity 2100158

Cotter Pin, 3/16" x 1-1/4" lg.

$

$

Not available

25

Simplicity 100116

Tie Iron, R. or L.

$27.99

$

Usually ships in 2-12 days

0

26

Simplicity 2100108

Cotter Pins

$

$

Not available

27

Simplicity 100117

Pin for Swivel Shafts and Tie Irons
(Superseded to 100117A)

$7.99

$

Usually ships in 2-12 days

0

28

Simplicity 100110

Flat Washer

$31.99

$

Usually ships in 2-12 days

0

29

Simplicity 100159

Tie Irons

$

$

Not available

30

Simplicity 100160

Shaft, Swivel Hitch

$

$

Not available

31

Simplicity 2100161

Hex Nut, 1/2"-13

$

$

Not available

32

Simplicity 1729275SM

Pin w/clip (not illustrated)

$18.99

$

Usually ships in 2-12 days

0
