990284 - Simplicity 42" Mower Deck, Leaf Mulcher LEAF MULCHER Parts Diagram

42" Mower Deck, Leaf Mulcher

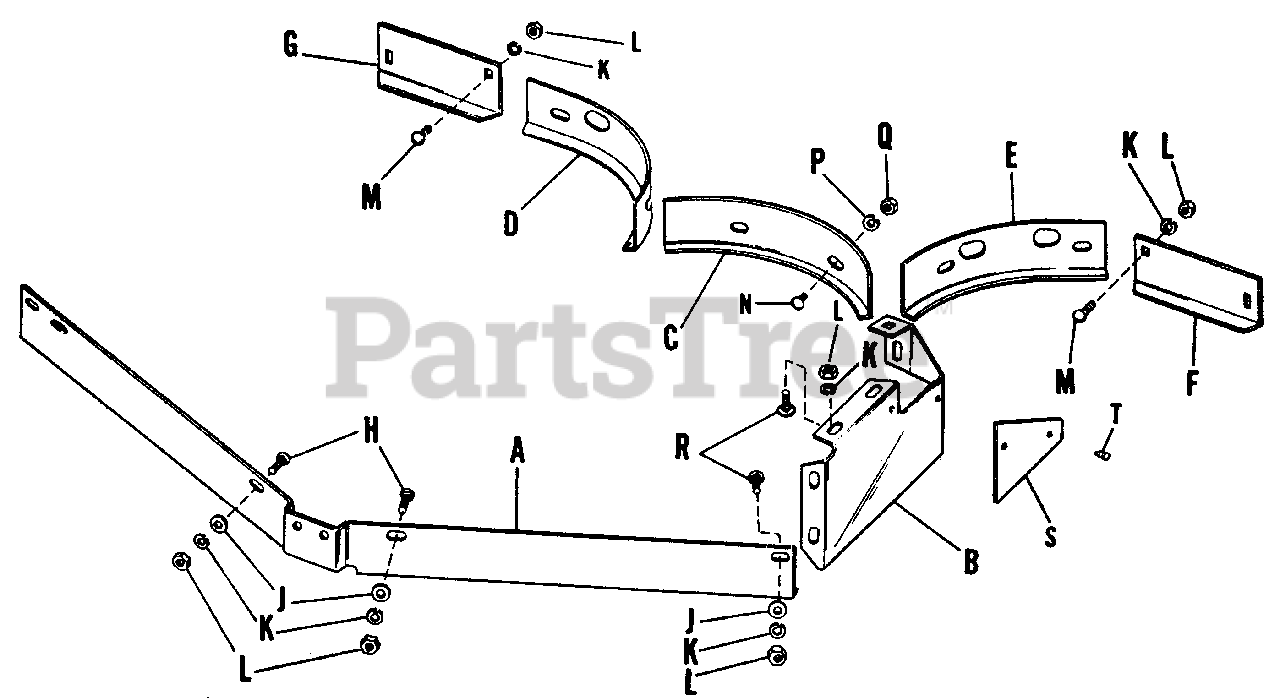

LEAF MULCHER Parts Diagram

  • Title

A

Simplicity 108365

Baffle Mulcher, Front

$

$

Not available

B

Simplicity 108363

Plate-End-Housing

$

$

Not available

C

Simplicity 108267

Baffle, Mulcher, Rear Center

$

$

Not available

D

Simplicity 108265

Baffle, Mulcher, Right Hand Side

$

$

Not available

E

Simplicity 108266

Baffle, Mulcher, Left Hand Side

$

$

Not available

F

Simplicity 108259

Baffle, Left Hand, Rear

$

$

Not available

G

Simplicity 108260

Baffle, Right Hand, Rear

$

$

Not available

H

Simplicity 2703004

Carriage Bolt, 3/8"-16 NC x 3/4" w/short square neck

$

$

Not available

J

Simplicity 2719001

Washer, Plain, 3/8" Std.

$

$

Not available

K

Simplicity 2720002

Washer, Lock, 3/8"

$

$

Not available

L

Simplicity 2717003

Nut, Hex, Full, 3/8"-16

$

$

Not available

M

Simplicity 2702002

Carriage Bolt, 3/8"-16 x 1"

$

$

Not available

N

Simplicity 2703005

Carriage Bolt, 5/16"-18 NC x 3/4" w/short square neck

$

$

Not available

P

Simplicity 2720001

Washer, Lock, 5/16"

$

$

Not available

Q

Simplicity 2717001

Nut, Hex, Full, 5/16"-18

$

$

Not available

R

Simplicity 2702003

Carriage Bolt, 3/8"-16 x 3/4"

$

$

Not available

S

Simplicity 108364

Cover

$

$

Not available

T

Simplicity 2714007

Screw, Rec. Hex. Hd. Self Tapping, 1/4"-20 x 3/8"

$

$

Not available
