990289 - Simplicity 32" Mower Deck 32" Arbor & Housing Group Parts Diagram

32" Mower Deck

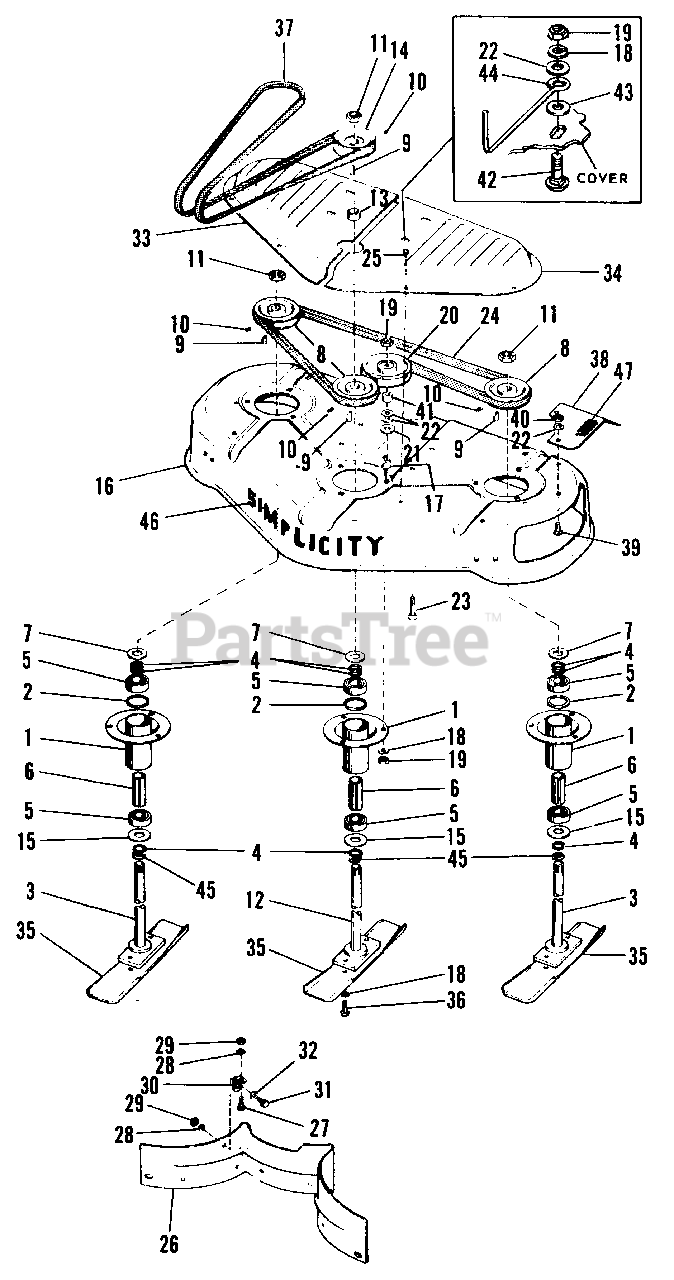

32" Arbor & Housing Group Parts Diagram

  • Title

1

Simplicity 2108203

ARBOR TUBE ASSY.

$

$

Not available

2

Simplicity 2108134

RING, Backing

$

$

Not available

3

Simplicity 2108250SM

ARBOR ASSY.

$115.99

$

In Stock, only 1 left!

0

4

Simplicity 2108181

WASHER

$

$

Not available

5

Simplicity 2108202SM

BEARING

$11.99

$

In Stock, Qty 20+

0

6

Snapper 2108201SM

SPACER

$19.99

$

In Stock, only 2 left!

0

7

Simplicity 2108139

FLINGER

$

$

Not available

8

Simplicity 2108142

PULLEY

$

$

Not available

9

Simplicity 2818312SM

KEY, Woodruff, 3/16 x 5/8
(Superseded to 703891)

$4.99

$

In Stock, Qty 20+

0

10

Simplicity 2830544

SCREW, Set, Socket Hd., Cup Pt., 5/16-18 x 3/8

$

$

Not available

11

Simplicity 2822133

NUT, Hex, Jam, 3/4-16

$

$

Not available

12

Simplicity 2108369SM

ARBOR DRIVE ASSY.

$149.99

$

Usually ships in 2-12 days

0

13

Simplicity 108371

SPACER

$

$

Not available

14

Simplicity 2108246SM

PULLEY, Cross Drive

$76.99

$

Usually ships in 2-12 days

0

15

Simplicity 2108257SM

WASHER

$6.99

$

In Stock, only 2 left!

0

16

Simplicity 2108147

HOUSING

$

$

Not available

17

Simplicity 2822110

BOLT, Carriage, 3/8-16 x 3/4

$

$

Not available

18

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

19

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 11

0

20

Simplicity 2108386SM

PULLEY, Idler

$

$

Not available

21

Simplicity 2818431

WASHER

$

$

Not available

22

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

23

Simplicity 2823420

BOLT, Carriage, 3/8-16 x 1-3/4

$

$

Not available

24

Simplicity 2108151

V-BELT

$

$

Not available

25

Simplicity 2822123

SCREW, Self Tapp., Rec. Hex Hd., 1/4-10 x 7/8

$

$

Not available

26

Simplicity 108187

BAFFLE, Mower

$

$

Not available

27

Simplicity 2822125

SCREW, Self Tapp., Rec. Hex Hd., 1/4-20 x 3/8

$

$

Not available

28

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

29

Simplicity 2816622SM

NUT, Hex, Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

30

Simplicity 2108186SM

CLIP, Baffle

$12.99

$

In Stock, only 1 left!

0

31

Simplicity 2821959

CAPSCREW, Hex, 1/4-20 x 5/8

$

$

Not available

32

Simplicity 2817377

WASHER, Plain, 1/4

$

$

Not available

33

Simplicity 108301

COVER, R.H.

$

$

Not available

34

Simplicity 108302

COVER, L.H.

$

$

Not available

35

Simplicity 2108297ASM

BLADE

$

$

Not available

36

Simplicity 2822586SM

CAPSCREW, Hex Hd., 3/8-16 x 5/8

$2.99

$

In Stock, Qty 5

0

37

Simplicity 2106723

V-BELT, Cross Drive

$

$

Not available

38

Simplicity 108390

DEFLECTOR

$

$

Not available

39

Simplicity 2820562

BOLT, Carriage, 5/16-18 x 3/4

$

$

Not available

40

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

41

Simplicity 2157081SM

SPACER

$8.99

$

In Stock, Qty 13

0

42

Simplicity 2822249

BOLT, Carriage, 3/8-16 x 1

$

$

Not available

43

Simplicity 2818430

WASHER, Plain, 7/16

$

$

Not available

44

Simplicity 8161158

STOP, Belt

$

$

Not available

45

Simplicity 2108472

WASHER

$

$

Not available

46

Simplicity 155061

DECAL, Simplicity

$

$

Not available

47

Simplicity 103031

DECAL, Safety

$

$
