990289 - Simplicity 32" Mower Deck 32" Hitch & Rollers Group Parts Diagram

32" Mower Deck

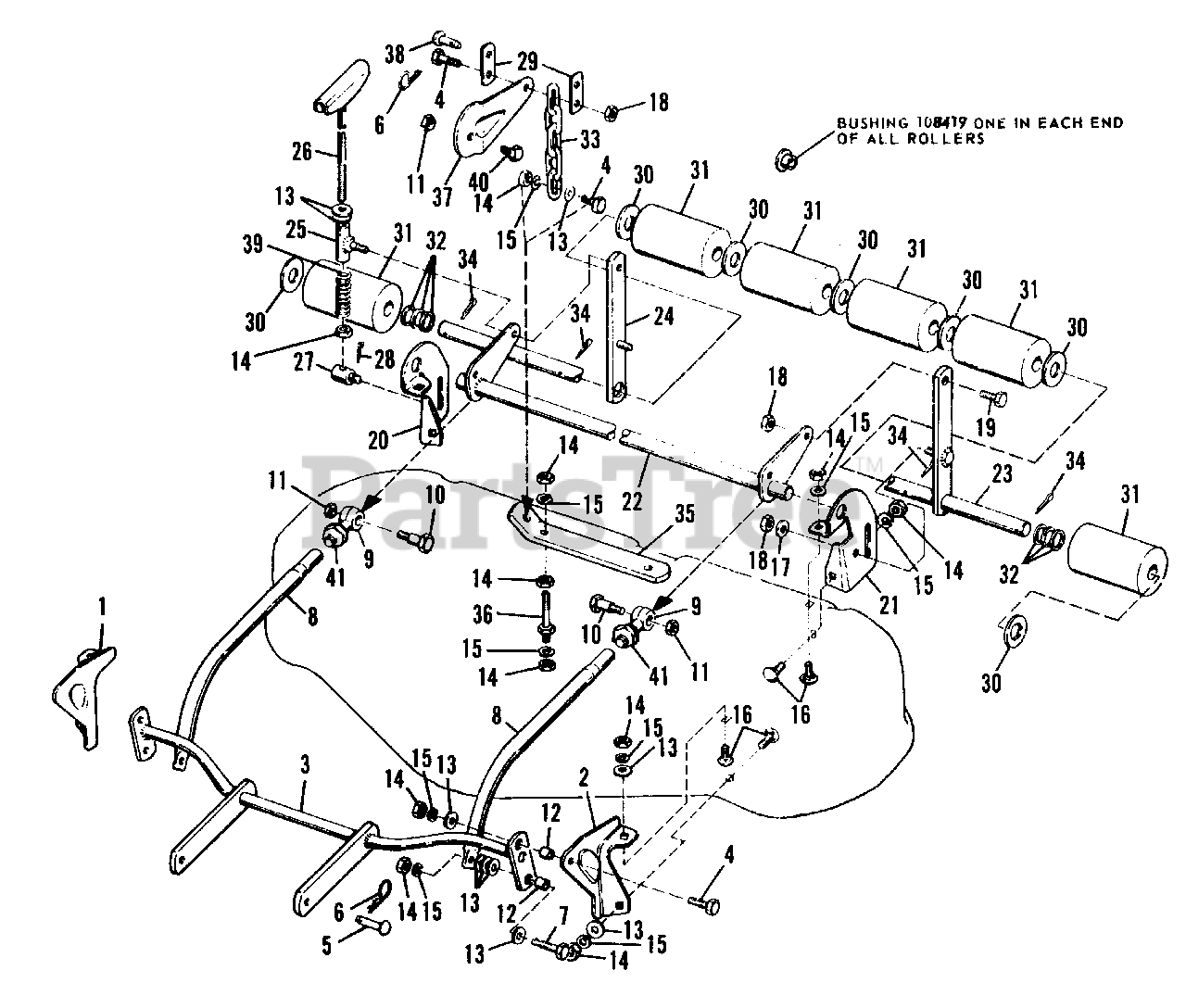

32" Hitch & Rollers Group Parts Diagram

  • Title

1

Simplicity 108376

BRACKET, Front, R.H.

$

$

Not available

2

Simplicity 108377

BRACKET, Front, L.H.

$

$

Not available

3

Simplicity 108427

MOWER HITCH ASSY.

$

$

Not available

4

Simplicity 2821210

CAPSCREW, Hex, 3/8-16 x 1

$

$

Not available

5

Simplicity 2156306SM

PIN

$7.49

$

In Stock, Qty 20+

0

6

Simplicity 1918196SM

CLIP, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, only 2 left!

0

7

Simplicity 2817400

CAPSCREW, Hex, 3/8-16 x 1-1/4

$

$

Not available

8

Simplicity 108411

ARM, Adjusting

$

$

Not available

9

Simplicity 2157215SM

BOLT, Eye

$

$

Not available

10

Simplicity 2108412

BOLT, Shoulder

$

$

Not available

11

Simplicity 1930645SM

LOCKNUT, Hex, Full, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

12

Simplicity 2154177SM

SPACER

$39.99

$

In Stock, only 4 left!

0

13

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

14

Simplicity 2817421

NUT, Hex, Jam, 3/8-16

$

$

Not available

15

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 10

0

16

Simplicity 992110

BOLT, Carriage, 3/8-16 x 3/4

$

$

Not available

17

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

18

Simplicity 1930645SM

LOCKNUT, Hex, Full, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

19

Simplicity 2819357

CAPSCREW, Hex, 3/8-16 x 7/8

$

$

Not available

20

Simplicity 108159

BRACKET, Roller, R.H.

$

$

Not available

21

Simplicity 108163

BRACKET, Roller, L.H.

$

$

Not available

22

Simplicity 108160

LEVER ASSY., Rear

$

$

Not available

23

Simplicity 108254

BAR & SHAFT ASSY.

$

$

Not available

24

Simplicity 2108256

ROLLER BAR ASSY.

$

$

Not available

25

Simplicity 2108166SM

SOCKET ASSY., Crank

$30.99

$

Usually ships in 2-12 days

0

26

Simplicity 2108415

ADJUSTMENT SCREW ASSY.

$

$

Not available

27

Simplicity 108172

PIVOT

$

$

Not available

28

Simplicity 2818447

PIN, Cotter, 3/32 x 3/4

$

$

Not available

29

Simplicity 108199

MOWER LIFT LINK

$

$

Not available

30

Simplicity 2116001

WASHER

$

$

Not available

31

Simplicity 1668513SM

ROLLER W/Bushing

$10.99

$

In Stock, Qty 20+

0

32

Simplicity 2860164SM

WASHER (as required)

$4.49

$

In Stock, Qty 5

0

33

Simplicity 2107031SM

CHAIN
(Superseded to 2107031ASM)

$7.49

$

In Stock, only 2 left!

0

34

Simplicity 2818458

PIN, Cotter, 3/16 x 1

$

$

Not available

35

Simplicity 108375

BAR, Lift

$

$

Not available

36

Simplicity 2108372SM

STUD

$46.99

$

Usually ships in 2-12 days

0

37

Simplicity 108385

LEVER, Lift, Mower

$

$

Not available

38

Simplicity 1708298SM

PIN, 3/8 x 1

$

$

Not available

39

Simplicity 2108360SM

SPRING

$5.49

$

In Stock, only 1 left!

0

40

Simplicity 2819357

CAPSCREW, Hex, 3/8-16 x 7/8

$

$

Not available

41

Simplicity 2819262

NUT, Hex, Jam, 1/2-20

$

$

Not available
