990294 - Simplicity Sno-Away 26" Rubber Tires SPOUT GROUP Parts Diagram

Sno-Away 26" Rubber Tires

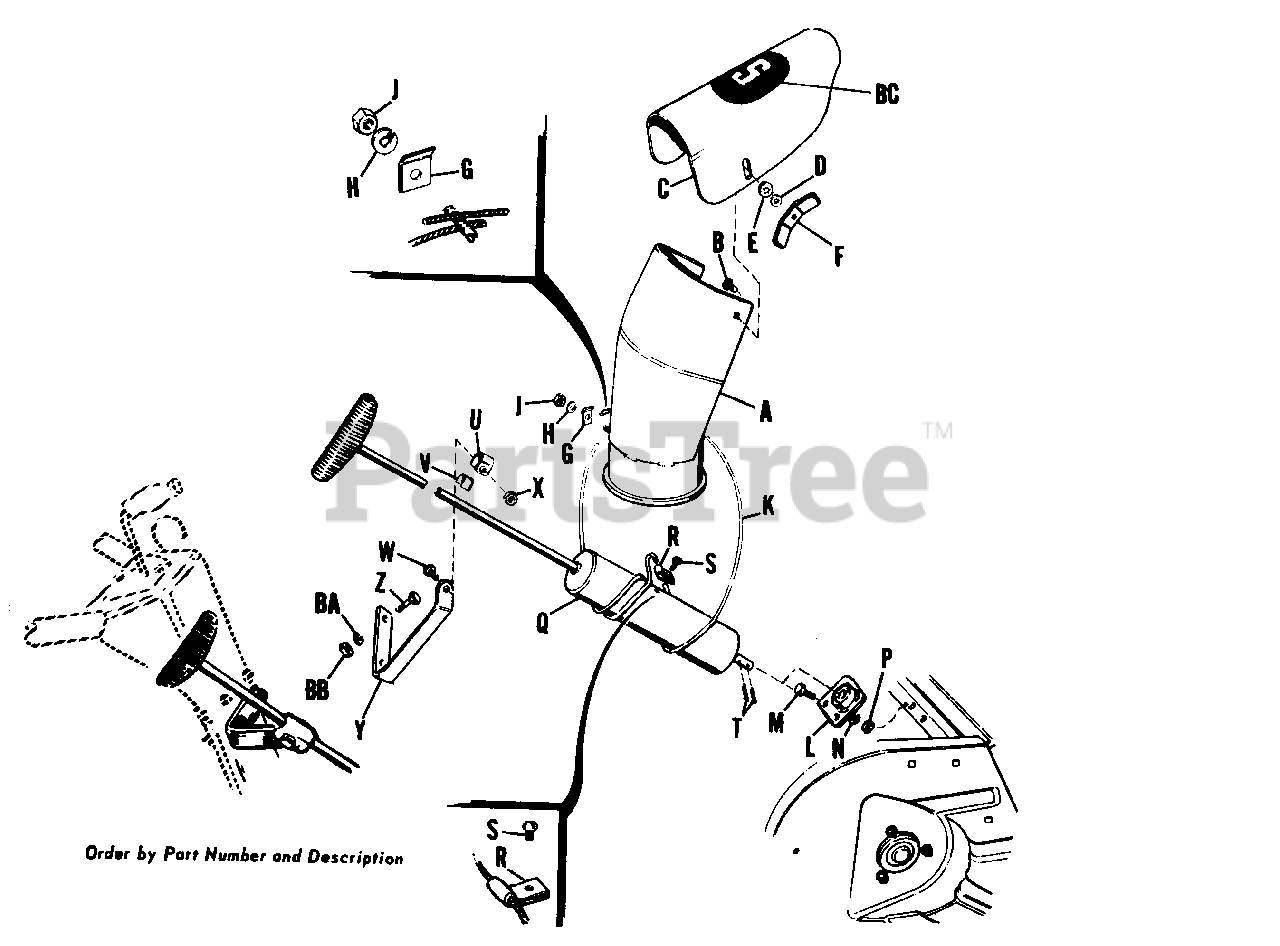

SPOUT GROUP Parts Diagram

  • Title

A

Simplicity 106338

Spout Assembly

$

$

Not available

B

Simplicity 2703005

Carriage Bolt, 5/16"-18 x 3/4" long

$

$

Not available

C

Simplicity 1064-89

Spout Extension

$

$

Not available

D

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

E

Simplicity 2721601

Lock Washer, 3/8"

$

$

Not available

F

Simplicity 2106229

NUT, Wing, 5/16-18

$

$

Not available

G

Simplicity 121042

Plate

$

$

Not available

H

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

J

Simplicity 2717001

Hex Nut, Full, 5/16"-18

$

$

Not available

K

Simplicity 106550

Spout Cord

$

$

Not available

L

Simplicity 1065-51

Bearing

$

$

Not available

M

Simplicity 2705015

Hex Caps crew, 1/4"-20 x 5/8" long

$

$

Not available

N

Simplicity 2720003

Lock Washer, 1/4"

$

$

Not available

P

Simplicity 2717005

Hex Nut, Full, 1/4"-20

$

$

Not available

Q

Simplicity 106552

Tube Assembly, Spout Control

$

$

Not available

R

Simplicity 154247

Clamp

$

$

Not available

S

Simplicity 2714016

Self-Tapplng Screw, 1/4"-20 x 1/2"

$

$

Not available

T

Simplicity 2722009

Cotter Pin, 1/8" x 3/4" long

$

$

Not available

U

Simplicity 106221

Guide Rod

$

$

Not available

V

Simplicity 2121175SM

Liner, Guide

$8.49

$

Usually ships in 2-12 days

0

W

Simplicity 2705019

Hex Capscrew, 5/16"-18 x 1-1/4" long

$

$

Not available

X

Simplicity 2717511

Hex Nut, Full, Lock, 5/16"-18 NC

$

$

Not available

Y

Simplicity 106521

Support, Spout Adj. Rod

$

$

Not available

Z

Simplicity 2705053

Hex Capscrew, 1/4"-20 x 1-3/4" long

$

$

Not available

BA

Simplicity 2720003

Lock Washer, 1/4"

$

$

Not available

BB

Simplicity 2717005

Hex Nut, Full, 1/4"-20

$

$

Not available

BC

Simplicity 106512

Decal

$

$

Not available
