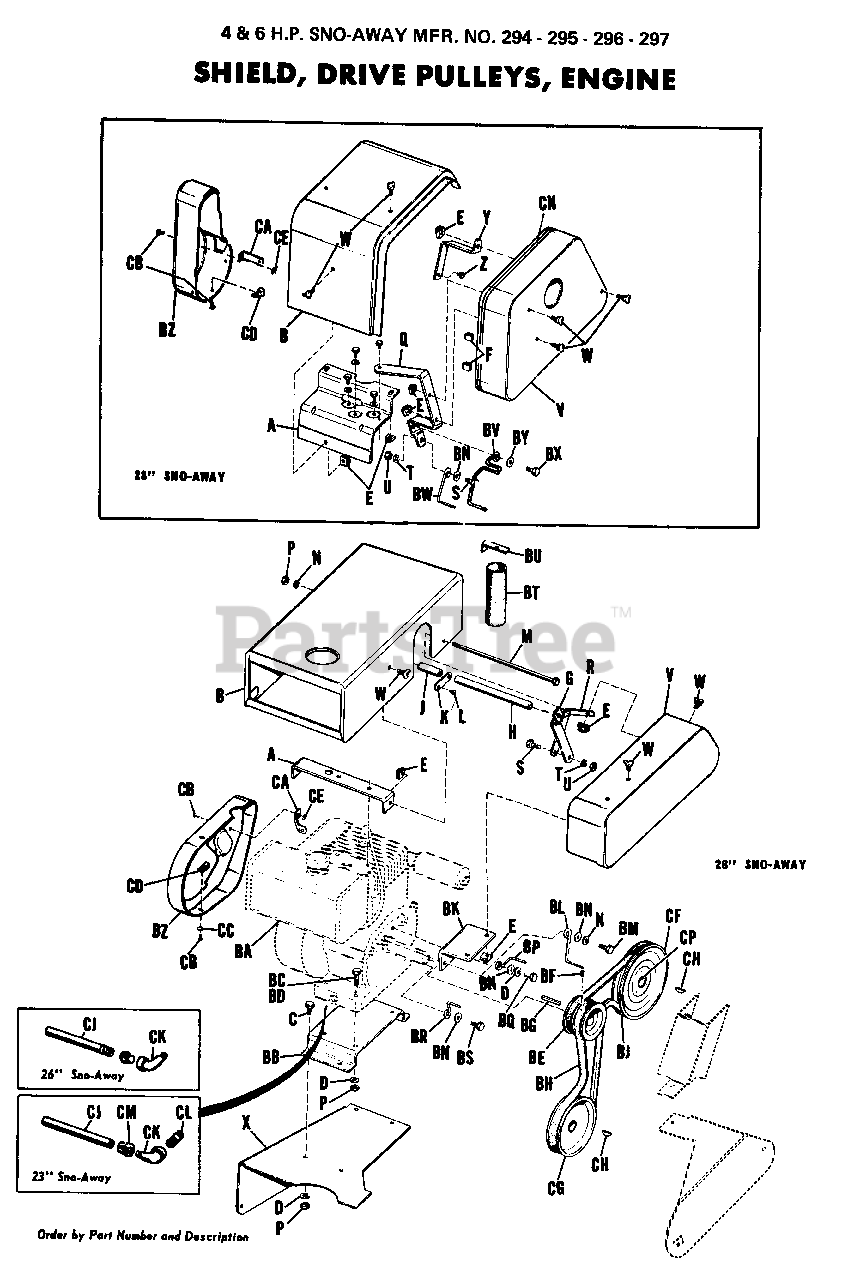

990296 - Simplicity Sno-Away 23" Snow Thrower, Rubber Wheels SHIELD, DRIVE PULLEYS, ENGINE Parts Diagram

Sno-Away 23" Snow Thrower, Rubber Wheels

SHIELD, DRIVE PULLEYS, ENGINE Parts Diagram

  • Title

A

Simplicity 106533

Hood Support

$

$

Not available

B

Simplicity 106534

Hood Assembly

$

$

Not available

E

Simplicity 2718030

Tinnerman Nut, #C31280-5618-1

$

$

Not available

F

Simplicity 106372

Speed Clip

$

$

Not available

Q

Simplicity 106541

Beat Guard Support

$

$

Not available

S

Simplicity 2705031

Hex Capscrew, 3/8"-16 x 7/8"

$

$

Not available

T

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

U

Simplicity 2717001

Hex Nut, Full, 5/16"-18

$

$

Not available

V

Simplicity 106537

Belt Guard Assembly

$

$

Not available

W

Simplicity 2715037

Thumb Screw

$

$

Not available

X

Simplicity 106542

Side Cover, RH

$

$

Not available

Y

Simplicity 106540

Belt Guard Bracket

$

$

Not available

Z

Simplicity 2714007

Screw,Rec. Hex. Hd., Self-Tapping, 1/4"-

$

$

Not available

BA

Simplicity 106439

Engine

$

$

Not available

BB

Simplicity 106433

Engine Base

$

$

Not available

BD

Simplicity 2705023

Hex Capscrew, 5/16"-18 x 1-1/2" lg.

$

$

Not available

BE

Simplicity 106227

Engine Pulley

$

$

Not available

BF

Simplicity 2713504

Set Screw, Cup Pt., Socket Hd., 5/16"-18

$

$

Not available

BG

Simplicity 1729279SM

Key
(Superseded to 703889)

$4.49

$

In Stock, Qty 12

0

BH

Simplicity 2121228

V-Belt (Rotor Drive)

$

$

Not available

BJ

Simplicity 1665706SM

V-Belt (Transmission Drive)

$31.99

$

Usually ships in 2-12 days

0

BN

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

BV

Simplicity 106624

Belt Stop

$

$

Not available

BW

Simplicity 2106545SM

Belt Stop

$

$

Not available

BX

Simplicity 2706017

Hex Capscrew, 1/2"-20 x 1" lg.

$

$

Not available

BY

Simplicity 2721506

Lock Washer, Int. Shakeproof, 1/2"

$

$

Not available

BZ

Simplicity 106590

Cover, Air Cooling

$

$

Not available

CA

Simplicity 106591

Cover Bracket

$

$

Not available

CB

Simplicity 2714006

Screw, Self-Tapping #10 x 1/2" lg.

$

$

Not available

CD

Simplicity 718031

Speed Nut, Special

$

$

Not available

CE

Simplicity 718019

Speed Nut

$

$

Not available

CF

Simplicity 106214

Pulley, Transmission Drive

$

$

Not available

CG

Simplicity 154272

Pulley

$

$

Not available

CH

Simplicity 2725003

Key, Woodruff

$

$

Not available

CJ

Simplicity 154381

Tube, Oil Filler

$

$

Not available

CK

Simplicity 728502

Street Elbow, 90ø

$

$

Not available

CL

Simplicity 106601

Nipple

$

$

Not available

CM

Simplicity 726502

Pipe Cap

$

$

Not available

CN

Simplicity 106547

Strip, White

$

$

Not available

CP

Simplicity 2713503

Screw, Set

$

$

Not available
