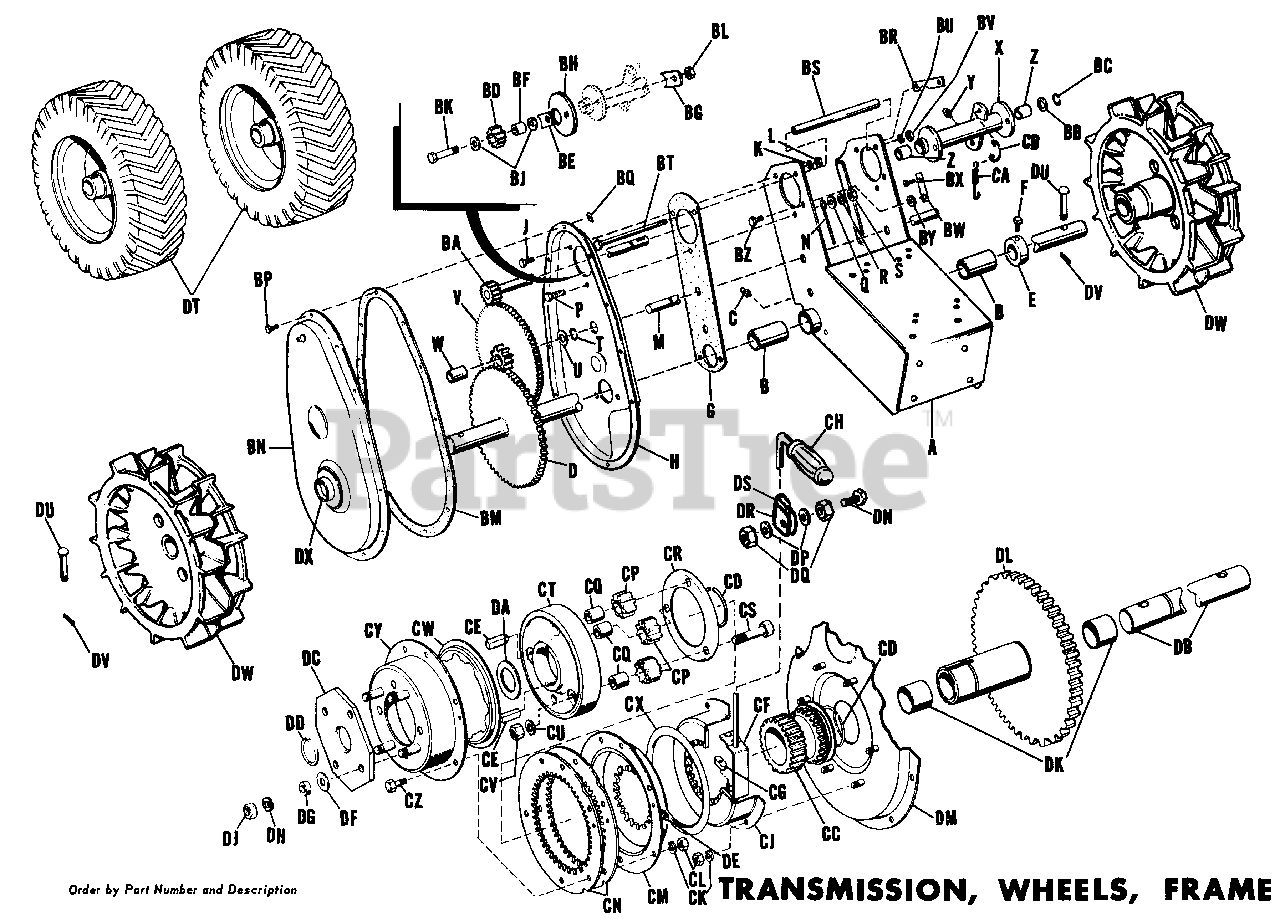

990296 - Simplicity Sno-Away 23" Snow Thrower, Rubber Wheels TRANSMISSION, WHEELS, FRAME Parts Diagram

Sno-Away 23" Snow Thrower, Rubber Wheels

TRANSMISSION, WHEELS, FRAME Parts Diagram

  • Title

A

Simplicity 106180

Frame Assembly

$

$

Not available

B

Simplicity 153089

Bearing

$

$

Not available

C

Simplicity 2727002

Grease Fitting

$

$

Not available

D

Simplicity 106435

Axle & Gear Assembly

$

$

Not available

E

Simplicity 2154065SM

Set Collar

$113.99

$

Usually ships in 2-12 days

0

F

Simplicity 2713006

Set Screw, Sq Hd, 5/16-18 x 1/2

$

$

Not available

G

Simplicity 153114

Gasket, Bearing Housing

$

$

Not available

H

Simplicity 153105

Gear Case

$

$

Not available

J

Simplicity 2705012

Hex Capscrew, 5/16-18 x 5/8

$

$

Not available

K

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

L

Simplicity 2717001

Hex Nut, Full, 5/16"-18

$

$

Not available

M

Simplicity 106193

Shaft, Intermediate

$

$

Not available

N

Simplicity 121044

Lock Pin

$

$

Not available

P

Simplicity 2705005

Hex Capscrew, 3/8"-16 x 1"

$

$

Not available

Q

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

R

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

S

Simplicity 2717003

Hex Nut, Full, 3/8"-16

$

$

Not available

T

Simplicity 2153124SM

Retaining Ring

$5.99

$

In Stock, Qty 20+

0

U

Simplicity 2153079

Washer

$

$

Not available

V

Simplicity 121306

Gear Assembly, Intermediate

$

$

Not available

W

Simplicity 2153078

Bearing, Intermediate

$

$

Not available

X

Simplicity 106199

Housing Assembly, Bearing

$

$

Not available

Y

Simplicity 2727002

Grease Fitting

$

$

Not available

Z

Simplicity 2156064SM

Bearing

$22.99

$

Usually ships in 2-12 days

0

BA

Simplicity 2121115SM

Pulley Shaft Assembly

$90.99

$

Usually ships in 2-12 days

0

BB

Simplicity 2153079

Washer

$

$

Not available

BC

Simplicity 2153124SM

Retaining Ring

$5.99

$

In Stock, Qty 20+

0

BD

Simplicity 121118

Reverse Pinion

$

$

Not available

BE

Simplicity 121107

Reverse Pinion Spacer

$

$

Not available

BF

Simplicity 121163

Pinion Spacer

$

$

Not available

BG

Simplicity 121139

Lock Plate

$

$

Not available

BH

Simplicity 153094

Shield

$

$

Not available

BJ

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

BK

Simplicity 715033

Hex Head Bolt, L.H.

$372.99

$

Usually ships in 2-12 days

0

BL

Simplicity 153090

Nut, Hex, Full, L.H.

$

$

Not available

BM

Simplicity 153115

Gear Case Gasket

$

$

Not available

BN

Simplicity 153106

Gear Case Cover Assembly

$

$

Not available

BP

Simplicity 2714006

Screw, Self-Tapping, #10 x 1/2"

$

$

Not available

BQ

Simplicity 718008

Speed Nut

$

$

Not available

BR

Simplicity 106215

Plate, Friction Stop

$

$

Not available

BS

Simplicity 106217

Spacer, Frame

$

$

Not available

BT

Simplicity 106216

Bolt, Frame

$

$

Not available

BU

Simplicity 2720001

Washer, Lock, 5/16"

$

$

Not available

BV

Simplicity 2717001

Hex Nut, Full, 5/16"-18

$

$

Not available

BW

Simplicity 718021

Detent, Neutral

$

$

Not available

BX

Simplicity 714014

Screw, Self-Tapping, #10 x 3/8

$

$

Not available

BY

Simplicity 2719006

Washer, Plaln, 1/4"

$

$

Not available

BZ

Simplicity 2715018

Hex Capscrew, 1/4"-20 x 5/8

$

$

Not available

CA

Simplicity 153121

Spring, Reverse Lever

$

$

Not available

CB

Simplicity 153011

Extension, Spring

$

$

Not available

DT

Simplicity 106419

Wheel & Tire Assembly

$

$

Not available

DU

Simplicity 2118053SM

Pin
(Superseded to 704241)

$9.99

$

Usually ships in 2-12 days

0

DV

Simplicity 1918196SM

Spring Clip
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 5

0

DW

Simplicity 106420

Steel Wheels

$

$

Not available

DX

Simplicity 8061055

Seal, Felt

$

$

Not available
