990300 (PM 350) - Gravely Pro-Master Zero-Turn Mower, 21hp Kubota (SN: 000101 & Above) Clutch Assembly Parts Diagram

Pro-Master Zero-Turn Mower, 21hp Kubota

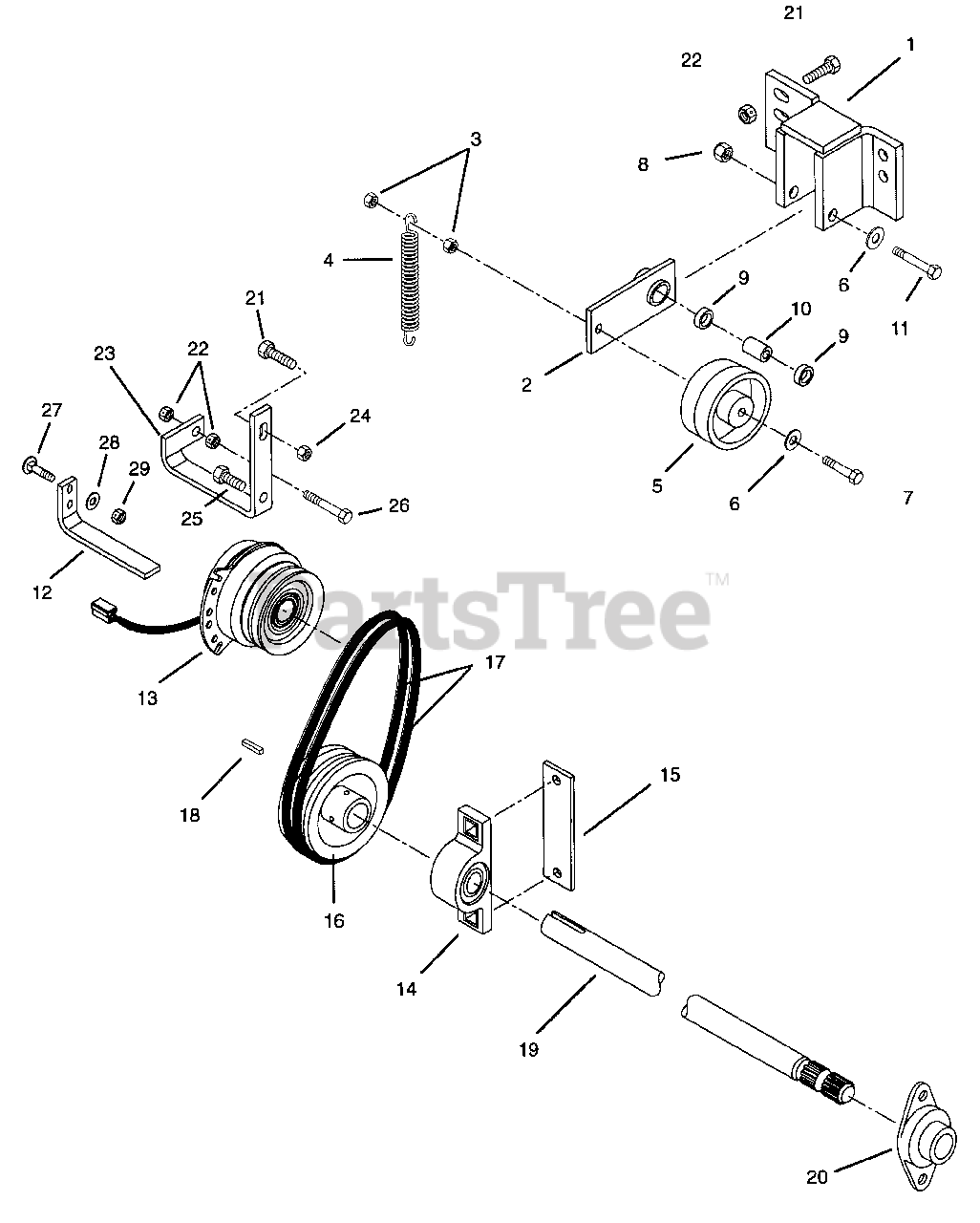

Clutch Assembly Parts Diagram

  • Title

1

Gravely 09063100

Bracket,Idler Pivot Mount
(Superseded to 59001200)

$

$

Not available

2

Gravely 09050900

Weldment,PTO Idler Arm

$135.99

$

Usually ships in 4-12 days

0

3

Gravely 120377

Nut-Hex .375-16 Grade 2
(Superseded to 06500917)

$0.99

$

Usually ships in 4-12 days

0

4

Gravely 08329200

Spring-Tension .091 x .56 x 5.07

$20.99

$

Usually ships in 4-12 days

0

5

Gravely 039173

Idler-Flat 3.25 x .38
(Superseded to 07308800)

$39.99

$

In Stock, only 3 left!

0

6

Gravely 120394

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 180122

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

9

Gravely 00520100

Bushing,Bronze .75ID x .88OD x .5LG

$

$

Not available

10

Gravely 00520000

Spacer, .38ID x .5OD x 1.5LG

$21.99

$

Usually ships in 4-12 days

0

11

Gravely 180128

Bolt-Hex .38-16 x 1.75 Grade 5
(Superseded to 05901809)

$1.49

$

In Stock, only 3 left!

0

12

Gravely 09065100

Bracket, Clutch Stop PM-350

$

$

Not available

13

Gravely 09049000

Electric Clutch

$672.99

$

Usually ships in 4-12 days

0

14

Gravely 00511900

PillowBlock, 65 Deg.

$82.99

$

Usually ships in 4-12 days

0

15

Gravely 09050700

Plate,Bearing Mount

$

$

Not available

16

Gravely 00512300

Sheave, 2 Groove
(Superseded to 09419000)

$

$

Not available

17

Gravely 039179

Belt,Set(2) 4L-Section 34.12 x 17/32
(Superseded to 07211100)

Note: (2) 4L-Section 34.12 x 17/32

$38.99

$

In Stock, only 1 left!

0

18

Gravely 00512500

Key,Gib .25 x 1.5

$

$

Not available

19

Gravely 09049400

Shaft, PM-350 PTO Output

$

$

Not available

20

Gravely 05431200

Bearing, 1" I.D. Flange Mount

$

$

Not available

21

Gravely 05946900

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, only 2 left!

0

22

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 09065100

PTO Clutch Stop (003)

Note: (003)

$

$

Not available

24

Gravely 06529200

Nut-Hex .31-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 16

0

25

Gravely 046360

Bolt-Hex M8 x 1.25 x 16MM
(Superseded to 05956300)

$

$

Not available

26

Gravely 05952600

Bolt-Hex .31-18 x 2.50 Grade 5
(Superseded to 05901912)

$1.49

$

In Stock, only 4 left!

0

27

Gravely 06219800

Bolt-Round head Square neck .25-20 x 1.00
(Superseded to 06200402)

$2.49

$

In Stock, only 3 left!

0

28

Gravely 06435800

Washer-Flat-Steel .312 x .734 x .065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 8

0

29

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0
