990300 (PM 350) - Gravely Pro-Master Zero-Turn Mower, 21hp Kubota (SN: 000101 & Above) Direction Control Parts Diagram

Pro-Master Zero-Turn Mower, 21hp Kubota

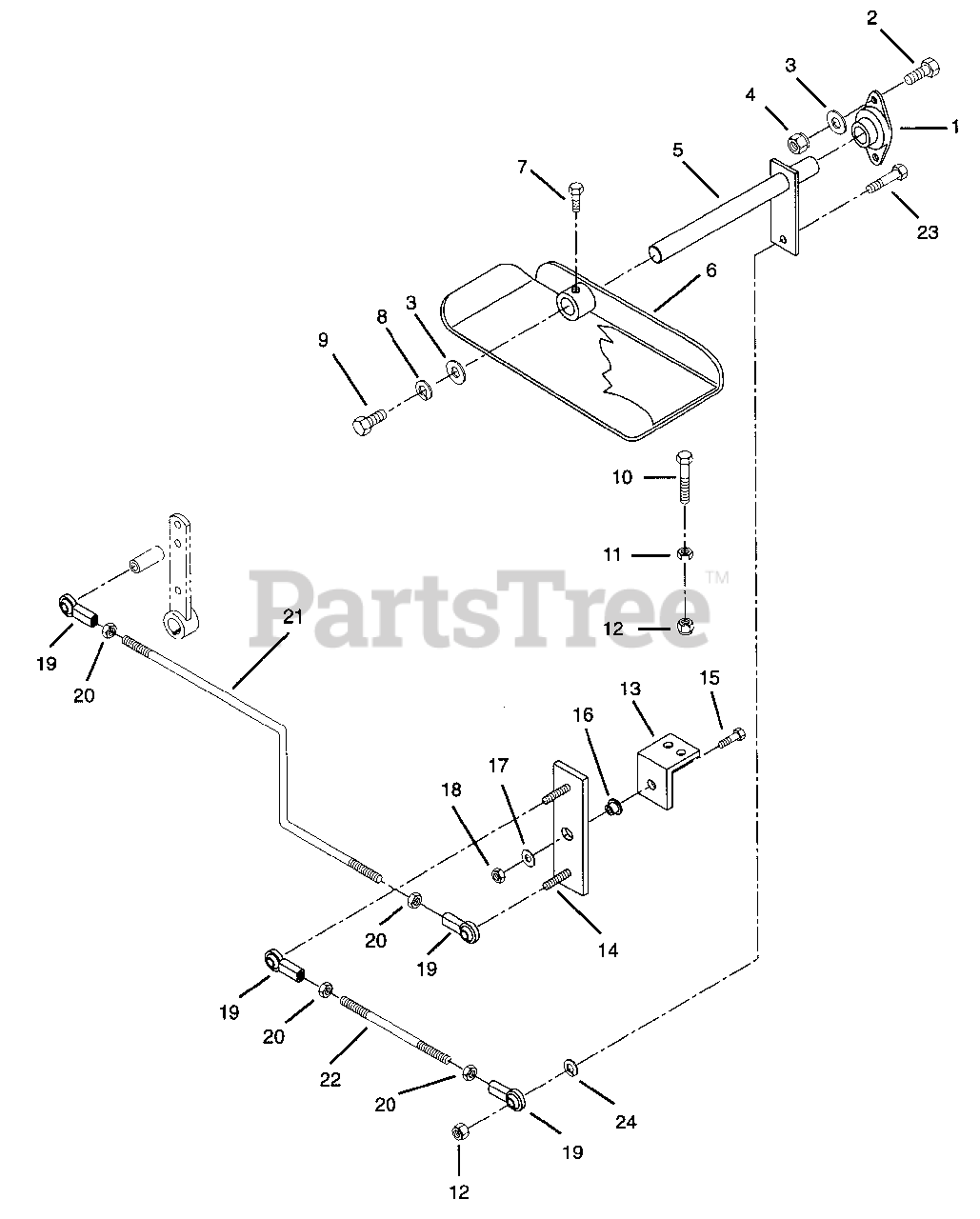

Direction Control Parts Diagram

  • Title

1

Gravely 030986

Bearing-Flange .75 x 2 Hole x 2.123
(Superseded to 05424100)

$

$

Not available

2

Gravely 180120

Bolt-Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, only 2 left!

0

3

Gravely 120394

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

5

Gravely 050721

Weldment,Control
(Superseded to 09000500)

$

$

Not available

6

Gravely 09061400

Weldment,Foot Control Lever

$31.99

$

Usually ships in 4-12 days

0

7

Gravely 181561

Bolt-Hex .25-28 x .50
(Superseded to 05936600)

$

$

Not available

8

Gravely 120382

Washer-Lock .375 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 18

0

9

Gravely 180122

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 05926000

Bolt-Hex .31-18 x 3.50 Grade 2
(Superseded to 05948000)

$2.49

$

Usually ships in 4-12 days

0

11

Gravely 120376

Nut-Hex .312-18 Grade 2
(Superseded to 06529200)

$0.99

$

In Stock, Qty 16

0

12

Gravely 419455

Nut-Locking-Nylon .312-18 Grade 2
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

13

Gravely 09059300

Bracket,Reverse Pivot Mount

$5.99

$

Usually ships in 4-12 days

0

14

Gravely 09059200

Weldment,Reverse Pivot Bracket
(Superseded to 09088800)

$17.99

$

Usually ships in 4-12 days

0

15

Gravely 180085

Bolt-Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$2.99

$

In Stock, Qty 12

0

16

Gravely 05514400

Bushing-Flange .344 x .468 x .485 x .750

$19.99

$

Usually ships in 4-12 days

0

17

Gravely 120393

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 11

0

18

Gravely 180085

Bolt-Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$2.99

$

In Stock, Qty 12

0

19

Gravely 045002

RodEnd, 5/16" Femate
(Superseded to 03787100)

$12.99

$

In Stock, Qty 5

0

20

Gravely 124920

Nut-Jam .312-24
(Superseded to 06500923)

$0.99

$

In Stock, Qty 8

0

21

Gravely 09059400

Rod,Direction Control Rear

$13.99

$

Usually ships in 4-12 days

0

22

Gravely 09060700

Rod,Direction Control Short

$5.99

$

Usually ships in 4-12 days

0

23

Gravely 180081

Bolt-Hex .31-18 x 1.25 Grade 5
(Superseded to 05901803)

$2.49

$

Usually ships in 4-12 days

0

24

Gravely 120214

Washer-Lock .313 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0
