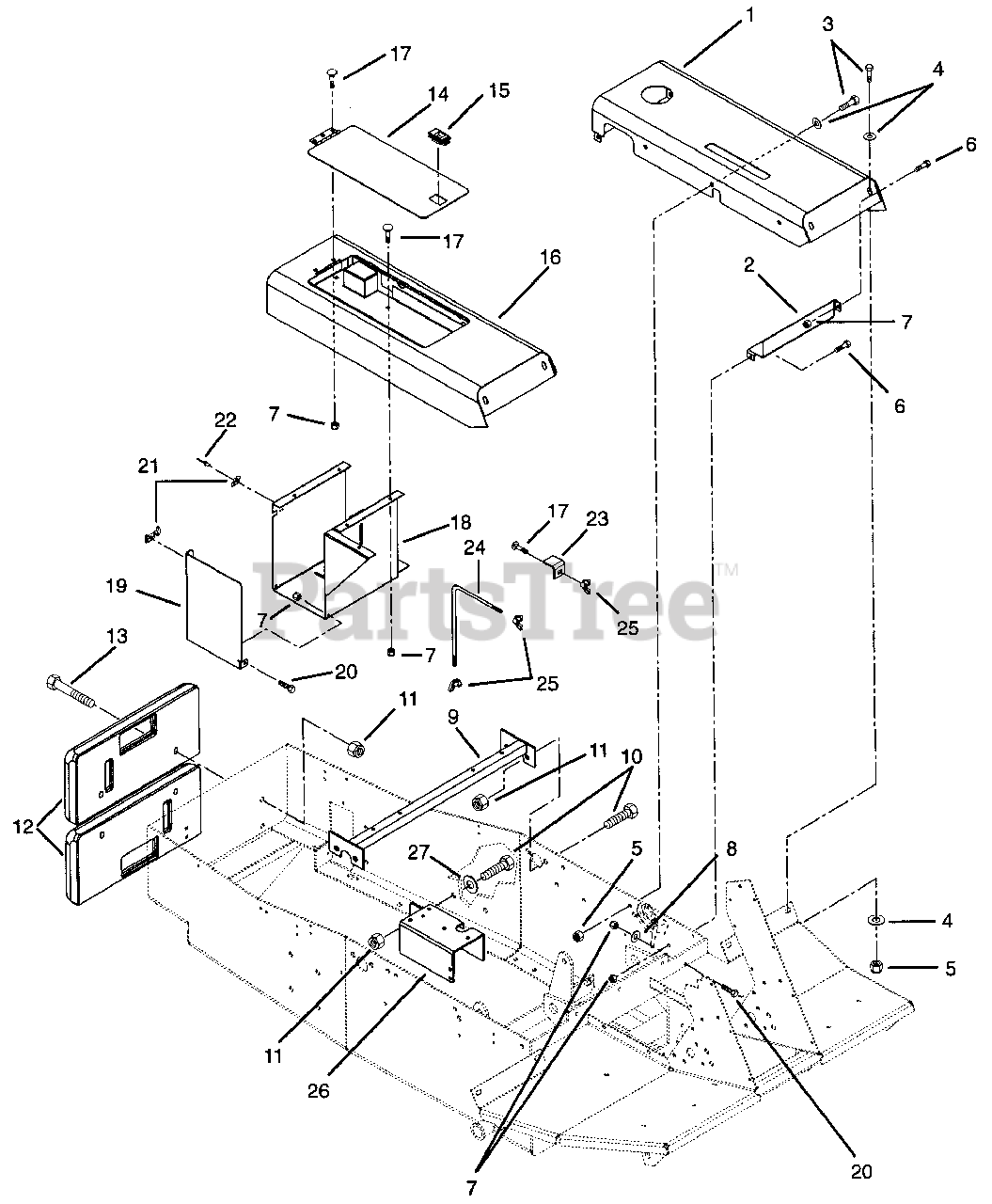

990300 (PM 350) - Gravely Pro-Master Zero-Turn Mower, 21hp Kubota (SN: 000101 & Above) Fender Assembly Parts Diagram

Pro-Master Zero-Turn Mower, 21hp Kubota

Fender Assembly Parts Diagram

  • Title

1

Gravely 09062500

Weldment,Left Hand Fender

$79.99

$

Usually ships in 4-12 days

0

2

Gravely 09055100

Bracket,Fuel Tank Front Support

$5.99

$

Usually ships in 4-12 days

0

3

Gravely 180121

Bolt-Hex .380-16 x .875
(Superseded to 05932600)

$2.49

$

In Stock, only 1 left!

0

4

Gravely 06429300

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

6

Gravely 180020

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

7

Gravely 419454

Nut-Locking-Nylon .250-20 Grade 2
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

8

Gravely 050365

Washer-Flat-Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

9

Gravely 09061100

Weldment,Seat Cross Support

$13.99

$

Usually ships in 4-12 days

0

10

Gravely 180173

Bolt-Hex .50-13 x 1 Grade 5
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

Gravely 180173

Bolt-Hex .50-13x 1 Grade 5
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

11

Gravely 435507

Nut-Locking-Nylon .50-13 Grade 5
(Superseded to 06500830)

$2.49

$

In Stock, Qty 20+

0

Gravely 435507

Nut-Locking-Nylon .50-13Grade 5
(Superseded to 06500830)

$2.49

$

In Stock, Qty 20+

0

12

090547

Weight,Rear Frame

$

$

Not available

090547

Weight,RearFrame

$

$

Not available

13

Gravely 180179

Bolt-Hex .50-13 x 1.75
(Superseded to 05901939)

$3.99

$

In Stock, Qty 7

0

Gravely 445608

Bolt-Hex .50-13x 5.50
(Superseded to 05901632)

$6.99

$

Usually ships in 4-12 days

0

14

Gravely 09054800

Weldment,Tool Box Lid

$

$

Not available

15

Gravely 01510400

Latch Body

$

$

Not available

16

Gravely 09053600

Weldment,Fender Right Hand

$

$

Not available

17

Gravely 120518

Bolt-Round Head Square Neck .25-20 x .75
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

Gravely 120518

Bolt-Round Head Square Neck .25-20 x .75
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 09055200

Panel, Battery Holder

$

$

Not available

19

Gravely 09055300

Cover,Battery Box

$5.99

$

Usually ships in 4-12 days

0

20

Gravely 180022

Bolt-Hex .25-20 x 1.00 Grade 5
(Superseded to 05901639)

$1.49

$

In Stock, Qty 7

0

21

Gravely 035294

Latch,Flexible
(Superseded to 08704700)

$25.99

$

Usually ships in 4-12 days

0

22

Gravely 011884

Rivet-Pop .125 x .232
(Superseded to 06807300)

$

$

Not available

23

Gravely 09057800

Bracket,Battery Hold Down

$

$

Not available

24

Gravely 09058100

Bracket,Battery Hold Down

$

$

Not available

25

Gravely 010413

Nut-Wing .250-20
(Superseded to 06537500)

$4.99

$

In Stock, Qty 9

0

Gravely 010413

Nut-Wing .250-20
(Superseded to 06537500)

$4.99

$

In Stock, Qty 9

0

26

Gravely 09061800

Harness Bracket

$

$

Not available

27

Gravely 417098

Washer-Flat-Steel .531 x 1.000 x .063
(Superseded to 06401115)

$0.99

$

In Stock, Qty 7

0
