990300 (PM 350) - Gravely Pro-Master Zero-Turn Mower, 21hp Kubota (SN: 000101 & Above) Frame and Dash Parts Diagram

Pro-Master Zero-Turn Mower, 21hp Kubota

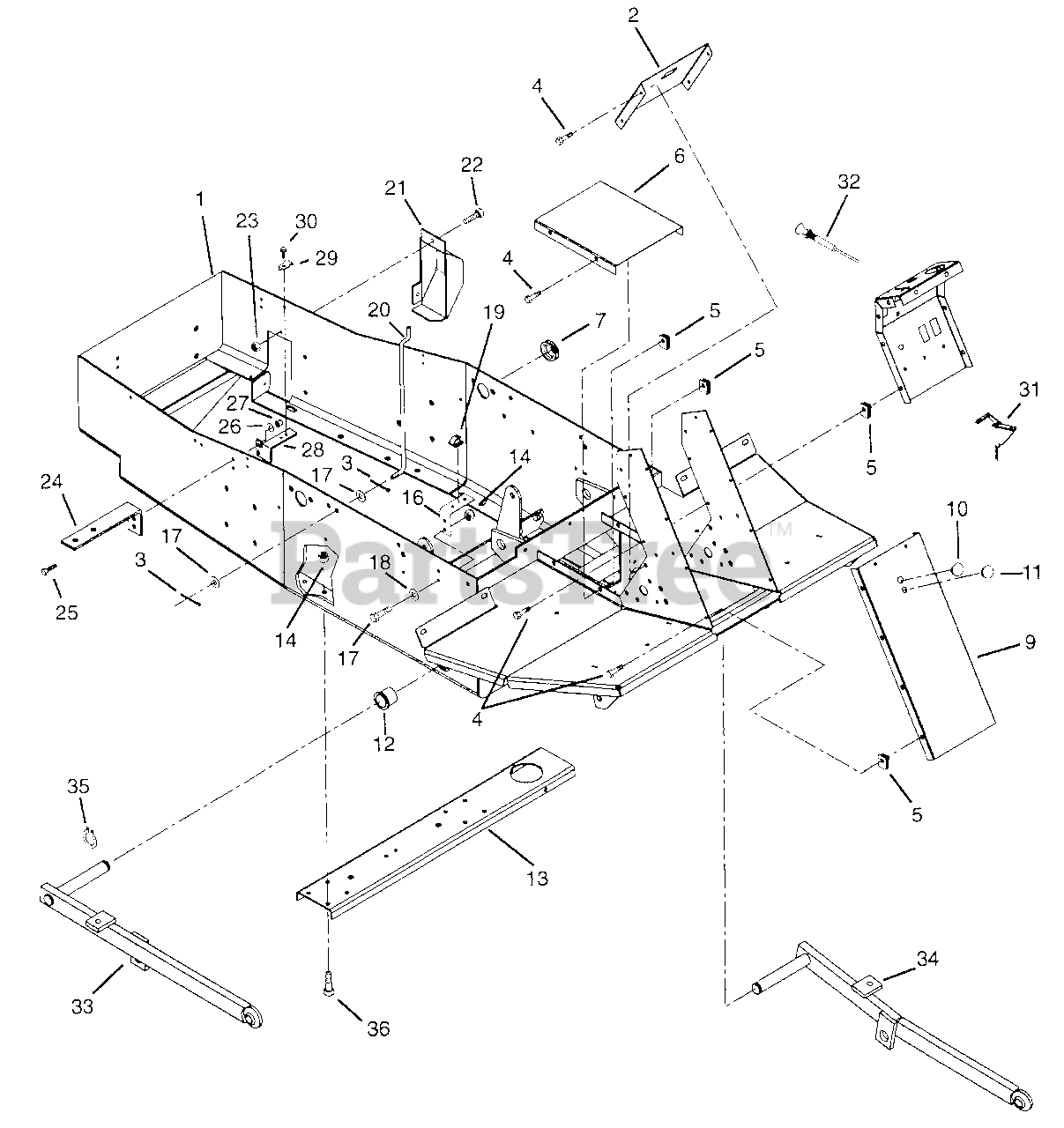

Frame and Dash Parts Diagram

  • Title

1

Gravely 09049700

Weldment, PM-350 Frame

$

$

Not available

2

Gravely 052086

Panel, Brake Lock
(Superseded to 09009700)

$22.99

$

Usually ships in 4-12 days

0

3

Gravely 121222

Pin-Cotter .09 x .75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 5

0

4

Gravely 160541

Screw-Machine .25-20
(Superseded to 06113500)

$1.99

$

In Stock, only 3 left!

0

5

Gravely 032369

Nut-Retainer .25-20 x .56
(Superseded to 07009000)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 045201

Panel, Access
(Superseded to 08966600)

$

$

Not available

7

Gravely 052579

Grommet, 1.25
(Superseded to 07536800)

$12.99

$

Usually ships in 4-12 days

0

8

Gravely 09058400

Panel, Instrument

$11.99

$

Usually ships in 4-12 days

0

9

Gravely 046394

Panel, Front
(Superseded to 08978500)

$

$

Not available

10

Gravely 045330

Hole Plug
(Superseded to 07508500)

$

$

Not available

11

Gravely 051224

Plug, Hole
(Superseded to 07536300)

$

$

Not available

12

055262

Bushing, Flange Nylon 1.25 x 1.50 x 1.50

$

$

Not available

13

Gravely 052579

Grommet, 1.25
(Superseded to 07536800)

$12.99

$

Usually ships in 4-12 days

0

14

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

15

Gravely 180121

Bolt-Hex .380-16 x .875
(Superseded to 05932600)

$2.49

$

In Stock, only 1 left!

0

16

Gravely 09057500

Bracket,Oil Filter Mount

$5.99

$

Usually ships in 4-12 days

0

17

Gravely 180122

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06429300

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 050132

Lever,Choke Control 8 HP
(Superseded to 06929300)

$

$

Not available

20

Gravely 045214

Rod,Stay
(Superseded to 09029500)

$

$

Not available

21

Gravely 09061500

Cover, PTO Pulley

$13.99

$

Usually ships in 4-12 days

0

22

Gravely 180022

Bolt-Hex .25-20 x 1.00 Grade 5
(Superseded to 05901639)

$1.49

$

In Stock, Qty 7

0

23

Gravely 419454

Nut-Locking-Nylon .250-20 with Insert Grade 2
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

24

Gravely 09054900

Bracket, Air Filter Mount (003,300)

Note: (003,300)

$

$

Not available

25

Gravely 180077

Bolt-Hex .31-18 x .75 Grade 5 (003,300)
(Superseded to 05901704)

Note: (003,300)

$1.49

$

In Stock, Qty 10

0

26

Gravely 06412300

Washer-Flat-Steel .344 x .688 x .065 (003,300)
(Superseded to 06437200)

Note: (003,300)

$0.99

$

In Stock, Qty 11

0

27

Gravely 419455

Nut-Locking-Nylon .312-18 (003,300)
(Superseded to 06500820)

Note: (003,300)

$0.99

$

Usually ships in 4-12 days

0

28

Gravely 09062400

Throttle Cable Bracket (003,300)

Note: (003,300)

$

$

Not available

29

Gravely 00518400

Clip, Diesel Throttle Cable (003,300)

Note: (003,300)

$

$

Not available

30

Gravely 159929

Screw-Machine 10-24 x .62 (003,300)
(Superseded to 06111100)

Note: (003,300)

$0.99

$

In Stock, Qty 16

0

31

Gravely 06928100

Throttle Cable (003,300)

Note: (003,300)

$

$

Not available

6938600

Throttle Cable (004)

Note: (004)

$

$

Not available

32

Gravely 06932600

Choke Cable (004)

Note: (004)

$

$

Not available

33

Gravely 09051900

Weldment, Lift Arm Right Hand

$

$

Not available

34

Gravely 09052400

Weldment, Lift Arm Left Hand

$

$

Not available

35

Gravely 021608

Ring-Retaining-External 1.15- x .093
(Superseded to 05713800)

$

$

Not available

36

Gravely 180121

Bolt-Hex .38-16 x .875
(Superseded to 05932600)

$2.49

$

In Stock, only 1 left!

0
