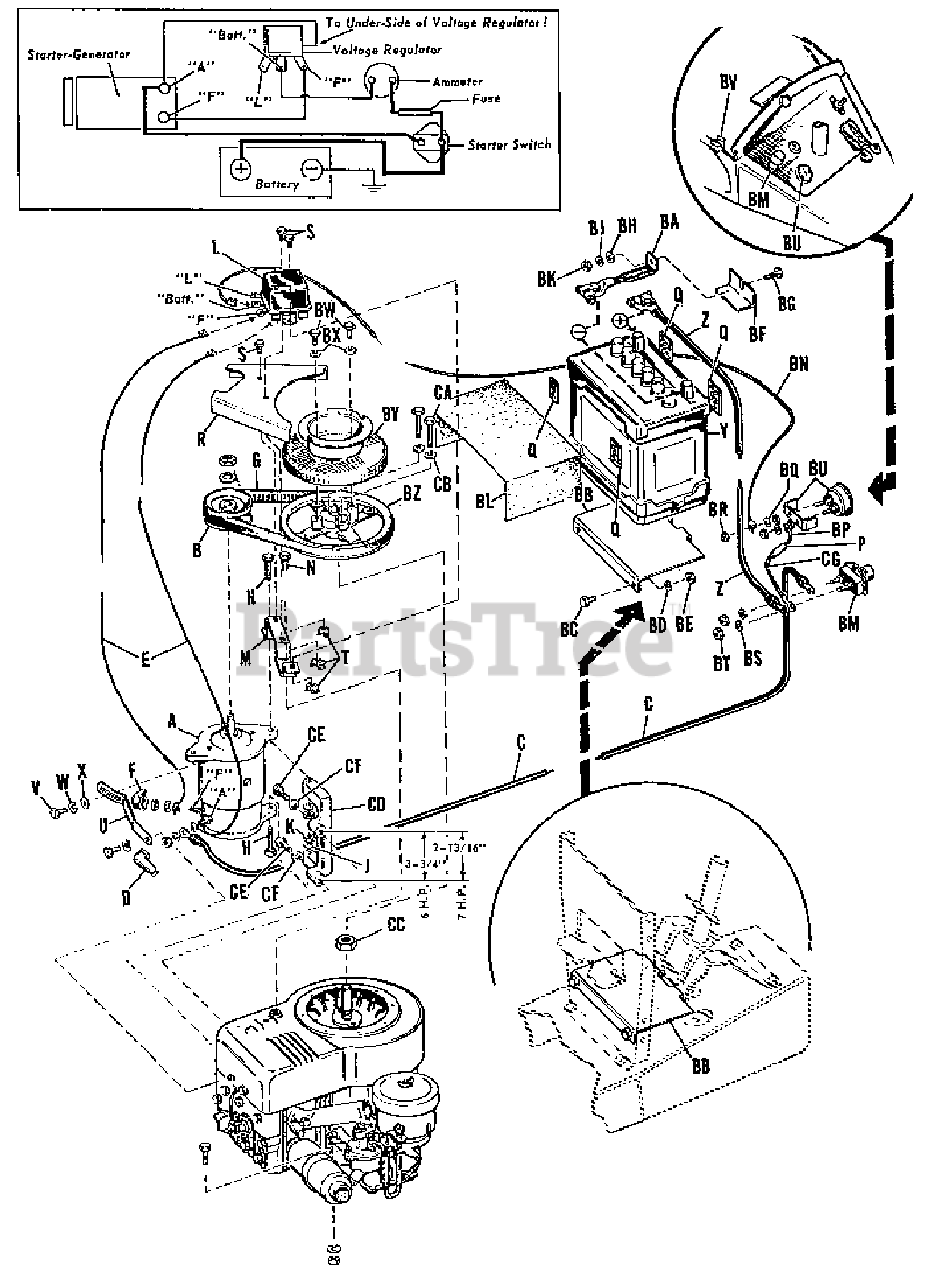

  • Title

A

Simplicity 122136

MOTOR-GENERATOR

$

$

Not available

B

Simplicity 122132

GENERATOR PULLEY

$

$

Not available

C

Simplicity 122117

CABLE (Generator to Switch

$

$

Not available

D

Simplicity 2122023SM

TERMINAL, Cover

$5.99

$

In Stock, only 3 left!

0

E

Simplicity 122113

WIRE

$

$

Not available

F

Simplicity 2122116

TERMINAL, Cover

$

$

Not available

G

Simplicity 2122120SM

V"-BELT`

$23.99

$

In Stock, only 1 left!

0

H

Simplicity 2705023

HEX CAPSCREW, 5/16-18 x 1-3/4" Large

$

$

Not available

J

Simplicity 2720001

LOCKWASHER, 5/16"

$

$

Not available

K

Simplicity 2717001

HEX NUT, Full, 5/16-18

$

$

Not available

L

Simplicity 122044

VOLTAGE REGULATOR

$

$

Not available

M

Simplicity 122133

REGULATOR BRACKET

$

$

Not available

N

Simplicity 2705015

HEX CAPSCREW, 1/4"-20 x 5/8" Large

$

$

Not available

P

Simplicity 122172

FUSE- 20 Amp

$

$

Not available

Q

Simplicity 2106532SM

FELT, Gasket

$67.99

$

Usually ships in 2-12 days

0

R

Simplicity 122137

PULLEY, Guard

$

$

Not available

S

Simplicity 2705015

HEX, Capscrew, 1/4"-20 x 5/8" Large

$

$

Not available

T

Simplicity 2718032

TIMERMAN NUT

$

$

Not available

U

Simplicity 122134

ADJUSTMENT STRAP

$

$

Not available

V

Simplicity 2705017

HEX, Capscrew, 5/16-18 x 3/4" Large

$

$

Not available

W

Simplicity 2719002

WASHER, Plain, 5/16

$

$

Not available

X

Simplicity 2720001

WASHER, Lock, 5/16

$

$

Not available

Y

Simplicity 132190

BATTERY

$

$

Not available

Z

Simplicity 2122129

BATTERY, Cable

$

$

Not available

BA

Simplicity 122130

GROUND, Cable

$

$

Not available

BB

Simplicity 156226

BATTERY, Support

$

$

Not available

BC

Simplicity 2705015

CAPSCREW, Hex, 1/4-20 X 5/8" Large

$

$

Not available

BD

Simplicity 2720003

LOCKWASHER, 1/4"

$

$

Not available

BE

Simplicity 2717005

NUT, Hex, Full 1/4-20

$

$

Not available

BF

Simplicity 156045

BATTERY, Clamp

$

$

Not available

BG

Simplicity 2705030

CAPSCREW, Hex 1/4-20 x 3/4" Large

$

$

Not available

BH

Simplicity 2719006

WASHER, Plain 1/4"

$

$

Not available

BJ

Simplicity 2720003

WASHER, Lock, 1/4"

$

$

Not available

BK

Simplicity 2717005

NUT, Hex, Full, 1/4-20"

$

$

Not available

BL

Simplicity 122121

BATTERY INSULATION

$

$

Not available

BM

Simplicity 2122046

STARTER SWITCH

$

$

Not available

BN

Simplicity 122118

WIRE (Starter Switch To Regulator)

$

$

Not available

BP

Simplicity 122180

WIRE (Fuse to Ammeter)

$

$

Not available

BQ

Simplicity 2720002

LOCKWASHER, 3/8"

$

$

Not available

BR

Simplicity 2717003

NUT, Hex, Full, 3/8-16"

$

$

Not available

BS

Simplicity 2720003

WASHER, Lock 1/4"

$

$

Not available

BT

Simplicity 2717005

NUT, Hex, Full, 1/4-20"

$

$

Not available

BU

Simplicity 2122131SM

AMMETER
(Superseded to 7019547YP)

$90.99

$

Usually ships in 2-12 days

0

BV

Simplicity 122183

CLIP, Fuse

$

$

Not available

BW

Simplicity 2705017

CAPSCREW, Hex, 5/16-18 X 3/4" Large

$

$

Not available

BX

Simplicity 2720003

LOCKWASHER, 1/4"

$

$

Not available

BY

Simplicity 122188

PULLEY AND SCREEN

$

$

Not available

BZ

Simplicity 122122

PULLEY, Electric Starter

$

$

Not available

CA

Simplicity 2715053

CAPSCREW, Hex, 1/4-20 X 2-1/4" Large

$

$

Not available

CB

Simplicity 2720001

LOCKWASHER, 5/16"

$

$

Not available

CC

Simplicity 122125

FLYWHEEL NUT

$

$

Not available

CD

Simplicity 122126

STARTER MOUNTING BRACKET G HP ONLY (122189 Y HP ONLY)

$

$

Not available

CE

Simplicity 2705023

CAPSCREW, Hex, 5/16-19 x 1-3/4" Large

$

$

Not available

CF

Simplicity 2720001

LOCKWASHER, 5/16"

$

$

Not available

CG

Simplicity 122181

WIRE (Fuse to Starter Switch)

$

$

Not available
