990311 - Simplicity 36" Rotary Snow Thrower BODY & ROTOR GROUP Parts Diagram

36" Rotary Snow Thrower

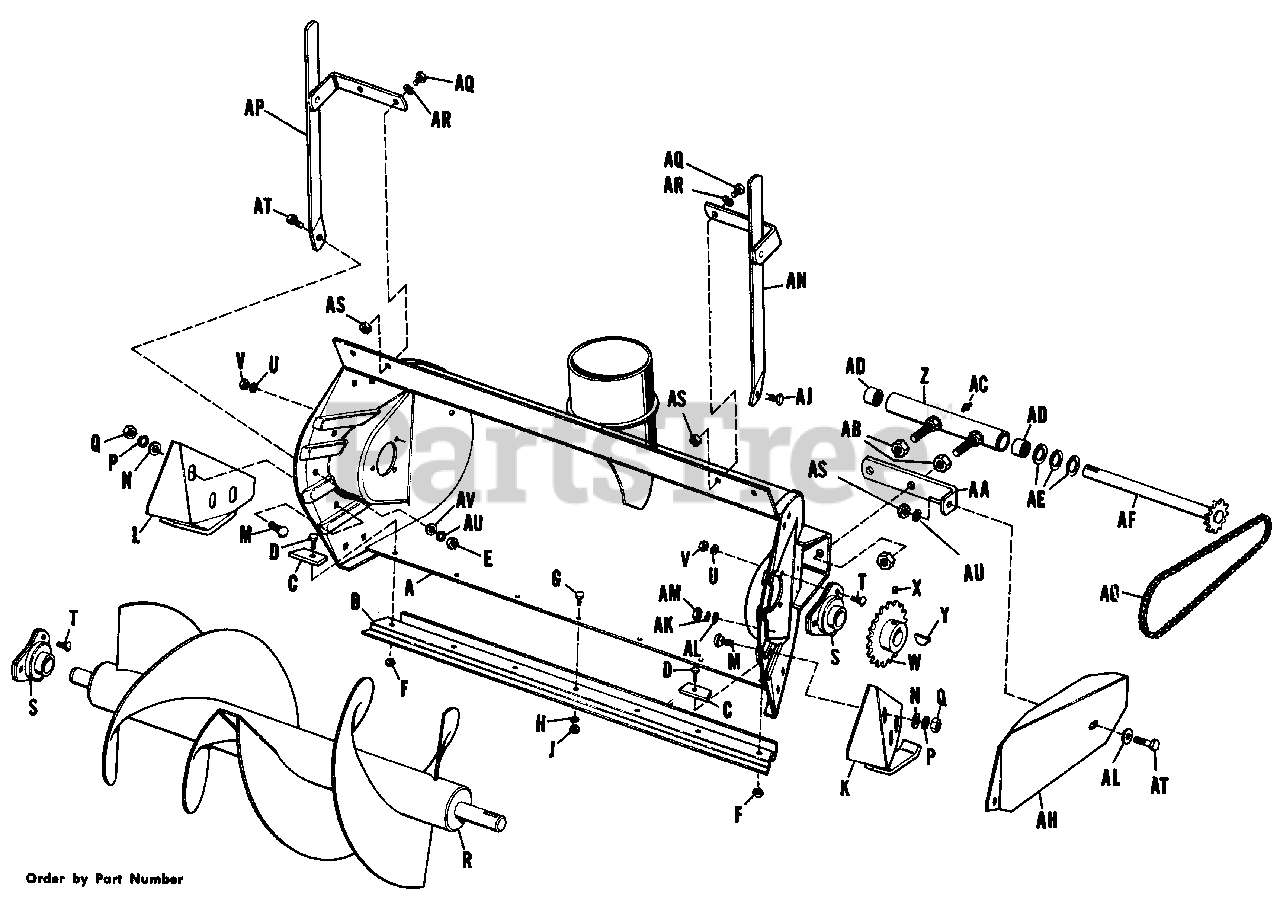

BODY & ROTOR GROUP Parts Diagram

  • Title

A

Simplicity 106593

Body Assembly

$

$

Not available

B

Simplicity 106438

Scraper, Body

$

$

Not available

C

Simplicity 106137

Clamp, Scraper

$

$

Not available

D

Simplicity 2715020

Capscrew, Hex Hd., 5/16"-18 NC x 3/4" lg.

$

$

Not available

E

Simplicity 2717001

Nut, Hex, Full, 5/16"-18 NC

$

$

Not available

F

Simplicity 2717511

Nut, Hex, Full, 5/16 "-18 NC

$

$

Not available

G

Simplicity 2715018

Capscrew, Hex Hd., 1/4"-20 NC x 1/2" lg.

$

$

Not available

H

Simplicity 2720003

Washer, Lock, 1/4"

$

$

Not available

J

Simplicity 2717005

Nut, Hex, Full, 1/4"-20 NC

$

$

Not available

K

Simplicity 106610

Shoe Assembly, Left Hand

$

$

Not available

L

Simplicity 106611

Shoe Assembly, Right Hand

$

$

Not available

M

Simplicity 2703004

Bolt, Carriage, 3/8"-16 NC x 3/4" lg.

$

$

Not available

N

Simplicity 2719001

Washer, Plain, 3/8"

$

$

Not available

P

Simplicity 2720002

Washer, Lock, 3/8"

$

$

Not available

Q

Simplicity 2717003

Nut, Hex, Full, 3/8"-16 NC

$

$

Not available

R

Simplicity 106047

Rotor Assembly

$

$

Not available

S

Simplicity 2106532SM

Bearing, Ball

$67.99

$

Usually ships in 2-12 days

0

T

Simplicity 2705017

Capscrew, 5/16"-18 NC x 3/4" lg.

$

$

Not available

U

Simplicity 2720001

Washer, Lock, 5/16"

$

$

Not available

V

Simplicity 2717001

Nut, Hex, Full, 5/16"-18 NC

$

$

Not available

W

Simplicity 106052

Sprocket, Rotor

$

$

Not available

X

Simplicity 2713503

Set Screw, Cup Point, Hex Socket, 5/16"-18 NC x 5/16" lg.

$

$

Not available

Y

Simplicity 2151040SM

Key, "Hi-Pro"

$9.49

$

In Stock, only 2 left!

0

Z

Simplicity 106053

Housing Assembly, Bearing

$

$

Not available

AA

Simplicity 106104

Bracket, Chain Guard

$

$

Not available

AB

Simplicity 2717006

Nut, Hex, Full, 1/2"-13 NC

$

$

Not available

AC

Simplicity 2727002

Fitting, Grease

$

$

Not available

AD

Simplicity 2154258SM

Bearing, Needle

$26.99

$

In Stock, only 2 left!

0

AE

Simplicity 1729259SM

Washer

$5.99

$

In Stock, Qty 11

0

AF

Simplicity 106055

Shaft Assembly

$

$

Not available

AG

Simplicity 106058

Chain, Rotor

$

$

Not available

AH

Simplicity 106103

Guard, Chain

$

$

Not available

AJ

Simplicity 2705017

Capscrew, Hex Hd., 5/16"-18 NC x 3/4" lg.

$

$

Not available

AK

Simplicity 2720001

Washer, Lock, 5/16"

$

$

Not available

AL

Simplicity 2719002

Washer, Plain, 5/16"

$

$

Not available

AM

Simplicity 2717001

Nut, Hex, Full, 5/16"-18 NC

$

$

Not available

AN

Simplicity 106146

Cutter Assembly, Drift, Left Hand

$

$

Not available

AP

Simplicity 106149

Cutter Assembly, Drift, Right Hand

$

$

Not available

AQ

Simplicity 2705017

Capscrew, Hex Hd., 5/16"-18 NC x 5/8" lg.

$

$

Not available

AR

Simplicity 2720001

Washer, Lock, 5/16"

$

$

Not available

AS

Simplicity 2717001

Nut, Hex, Full, 5/16"-18 NC

$

$

Not available

AT

Simplicity 2705017

Capscrew, Hex Hd., 5/16"-18 NC x 3/4" lg.

$

$

Not available

AU

Simplicity 2720001

Washer, Lock, 5/16"

$

$

Not available

AV

Simplicity 2719002

Washer, Plain, 5/16"

$

$

Not available
