990311 - Simplicity 36" Rotary Snow Thrower DRIVE GROUP Parts Diagram

36" Rotary Snow Thrower

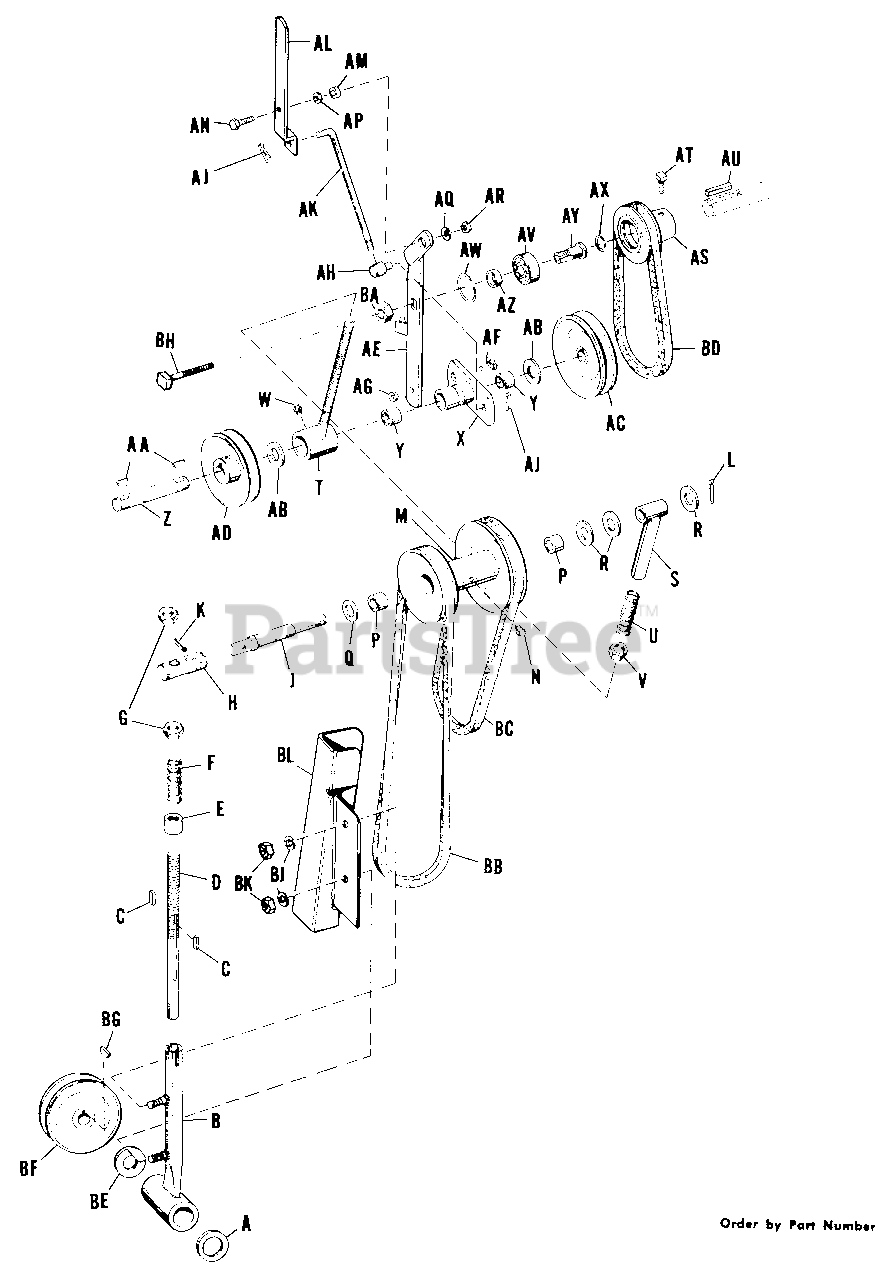

DRIVE GROUP Parts Diagram

  • Title

A

Simplicity 106059

Washer

$

$

Not available

B

Simplicity 106448

Post Assy., Pulley

$

$

Not available

C

Simplicity 8101046

Key

$

$

Not available

D

Simplicity 106139

Stud

$

$

Not available

E

Simplicity 106138

Cap

$

$

Not available

F

Simplicity 106064

Spring

$

$

Not available

G

Simplicity 2717018

Nut, Hex, Jam, 5/8"-11 N. C.

$

$

Not available

H

Simplicity 106122

Pivot, Pulley Post

$

$

Not available

J

Simplicity 106116

Shaft, Pulley

$

$

Not available

K

Simplicity 723009

Pin, Roll, 5/16" x 1" lg.

$

$

Not available

L

Simplicity 2722003

Pin, Cotter 3/16" x 1-1/4" lg.

$

$

Not available

M

Simplicity 106068

Pulley Assy.

$

$

Not available

N

Simplicity 2727001

Fitting, Grease

$

$

Not available

P

Simplicity 2154258SM

Bearing, Needle

$26.99

$

In Stock, only 2 left!

0

Q

Simplicity 106069

Washer

$

$

Not available

R

Simplicity 119018

Washer

$

$

Not available

S

Simplicity 106111

Post Assy., Pulley

$

$

Not available

T

Simplicity 106113

Screw Assy., Belt Tension

$

$

Not available

U

Simplicity 106064

Spring

$

$

Not available

V

Simplicity 2717018

Nut, Hex, Jam, 5/8"-11 N. C.

$

$

Not available

W

Simplicity 2727001

Fitting, Grease

$

$

Not available

X

Simplicity 106078

Flange Assy.

$

$

Not available

Y

Simplicity 2154258SM

Bearing, Needle

$26.99

$

In Stock, only 2 left!

0

Z

Simplicity 106081

Shaft

$

$

Not available

AA

Simplicity 2725003

Key, Woodruff

$

$

Not available

AB

Simplicity 1960061SM

Washer

$7.99

$

Usually ships in 2-12 days

0

AC

Simplicity 154308

Pulley

$

$

Not available

AD

Simplicity 2106057SM

Pulley

$92.99

$

Usually ships in 2-12 days

0

AE

Simplicity 106117

Arm Assy., Pulley

$

$

Not available

AF

Simplicity 2703002

Bolt, Carriage, 3/8"-16 N. C. x 1 1/4" lg.

$

$

Not available

AG

Simplicity 2717504

Nut, Hex, Full Lock, 3/8"-16 N. C., Elastic Stop Nut

$

$

Not available

AH

Simplicity 106109

Pivot, Adj. Rod

$

$

Not available

AJ

Simplicity 2722016

Pin, Cotter, 3/32" x 5/8" lg.

$

$

Not available

AK

Simplicity 106110

Rod, Adj.

$

$

Not available

AL

Simplicity 106121

Lever, Belt Release

$

$

Not available

AM

Simplicity 2153081

Spacer

$

$

Not available

AN

Simplicity 2705005

Screw, Hex Hd. Cap, 3/8"-16 N. C. x 1" lg.

$

$

Not available

AP

Simplicity 2719002

Washer, Plain, 5/16"

$

$

Not available

AQ

Simplicity 2720002

Washer, Lock, 3/8"

$

$

Not available

AR

Simplicity 2717003

Nut, Hex, Full, 3/8"-16 N. C.

$

$

Not available

AS

Simplicity 106090

Pulley, Engine

$

$

Not available

AT

Simplicity 2713006

Screw, Sq. Hd., Cup Point, Set, 5/16"-18 N. C. x 1/2" lg.

$

$

Not available

AU

Simplicity 2159129

Key

$

$

Not available

AV

Simplicity 2108202SM

Bearing, Ball

$11.99

$

In Stock, Qty 20+

0

AW

Simplicity 1180-94

Ring, Retaining

$

$

Not available

AX

Simplicity 106093

Ring, Retaining

$

$

Not available

AY

Simplicity 106094

Pin, Bearing

$

$

Not available

AZ

Simplicity 2106092

Spacer

$

$

Not available

BA

Simplicity 2717517

Nut, Hex, Jam, Lock, 3/4"-16 N. F.

$

$

Not available

BB

Simplicity 2152017SM

Belt, "V"

$29.99

$

Usually ships in 2-12 days

0

BC

Simplicity 2121078SM

Belt, "V"

$26.99

$

Usually ships in 2-12 days

0

BD

Simplicity 106123

Belt, "V"

$

$

Not available

BE

Simplicity 1960061SM

Washer

$7.99

$

Usually ships in 2-12 days

0

BF

Simplicity 2106057SM

Pulley

$92.99

$

Usually ships in 2-12 days

0

BG

Simplicity 2725003

Key, Woodruff

$

$

Not available

BH

Simplicity 716002

Capscrew, 3/8- 16 N. C. x 3-1/2" lg., minimum thread length 2- 1/2"

$

$

Not available

BJ

Simplicity 2720002

Washer, Lock, 3/8"

$

$

Not available

BK

Simplicity 2717003

Nut, Hex, Full, 3/8"-16 NC

$

$

Not available

BL

Simplicity 106447

Guard, Belt

$

$

Not available
