990311 - Simplicity 36" Rotary Snow Thrower PUSH BAR GROUP Parts Diagram

36" Rotary Snow Thrower

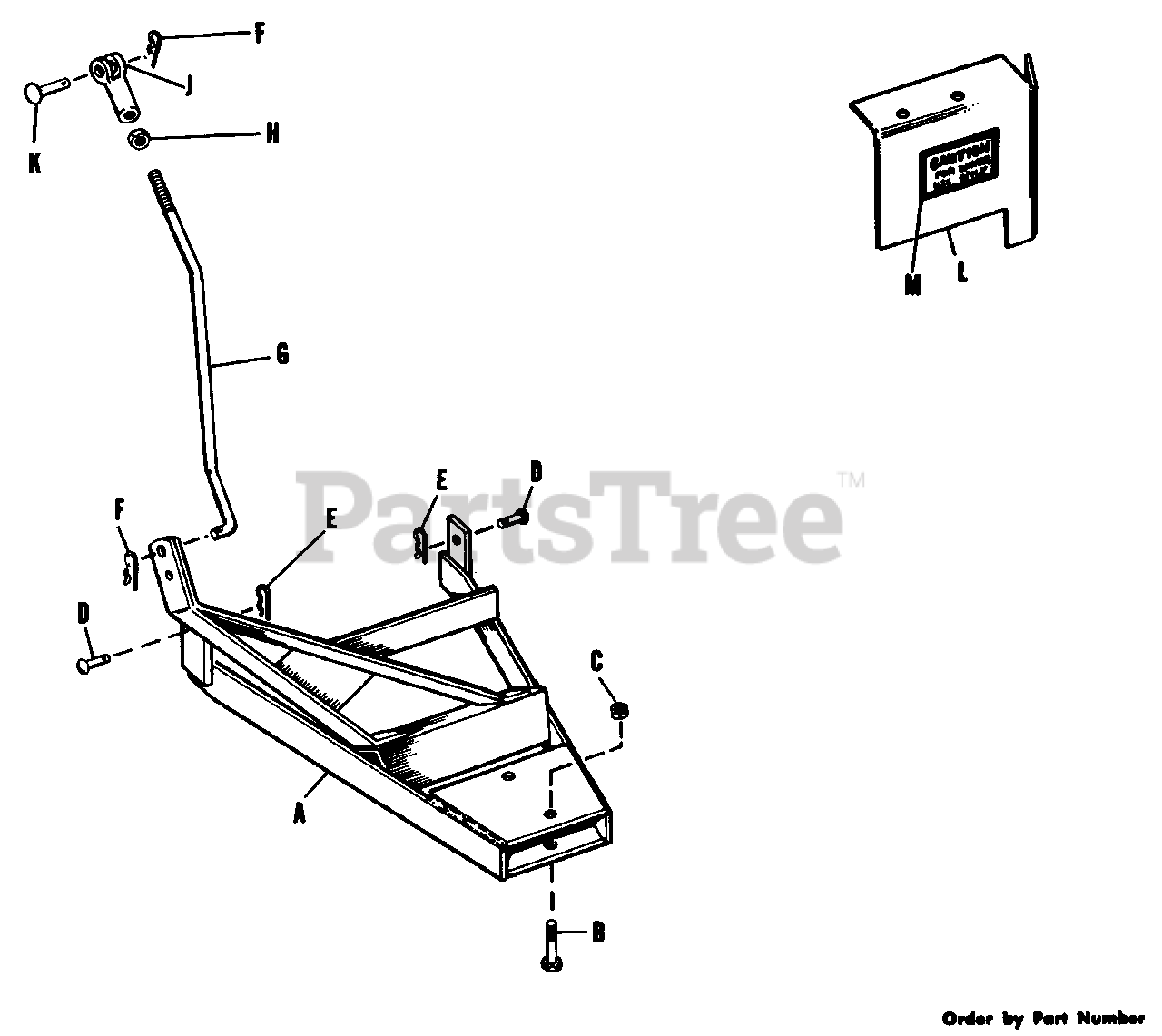

PUSH BAR GROUP Parts Diagram

  • Title

A

Simplicity 106096

Bar Assembly, Push

$

$

Not available

B

Simplicity 705048

Capscrew, Hex Hd., 1/2" - 13 N. C. x 2-1/2" lg.
(Superseded to 705057)

$106.99

$

In Stock, only 1 left!

0

C

Simplicity 2717518

Nut, Hex, Full, Lock, 1/2" - 13 N. C.

$

$

Not available

D

Simplicity 2118053SM

Pin
(Superseded to 704241)

$9.99

$

Usually ships in 2-12 days

0

E

Simplicity 1918196SM

Clip, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, only 2 left!

0

F

Simplicity 1918196SM

Clip, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, only 2 left!

0

G

Simplicity 106178

Rod, Front Lift

$

$

Not available

H

Simplicity 717008

Nut, Full, Hex, 1/4" - 20 N. F.

$

$

Not available

J

Simplicity 2154304SM

Yoke End, Adjusting

$67.99

$

Usually ships in 2-12 days

0

K

Simplicity 2154305

Pin, Yoke

$

$

Not available

L

Simplicity 106172

Deflector, Hot Air

$

$

Not available

M

Simplicity 106173

Decal, "Caution"

$

$

Not available
