990316 - Simplicity Electric Starter Generator for Landlord ELECTRIC STARTER-GENERATOR SYSTEM Parts Diagram

Electric Starter Generator for Landlord

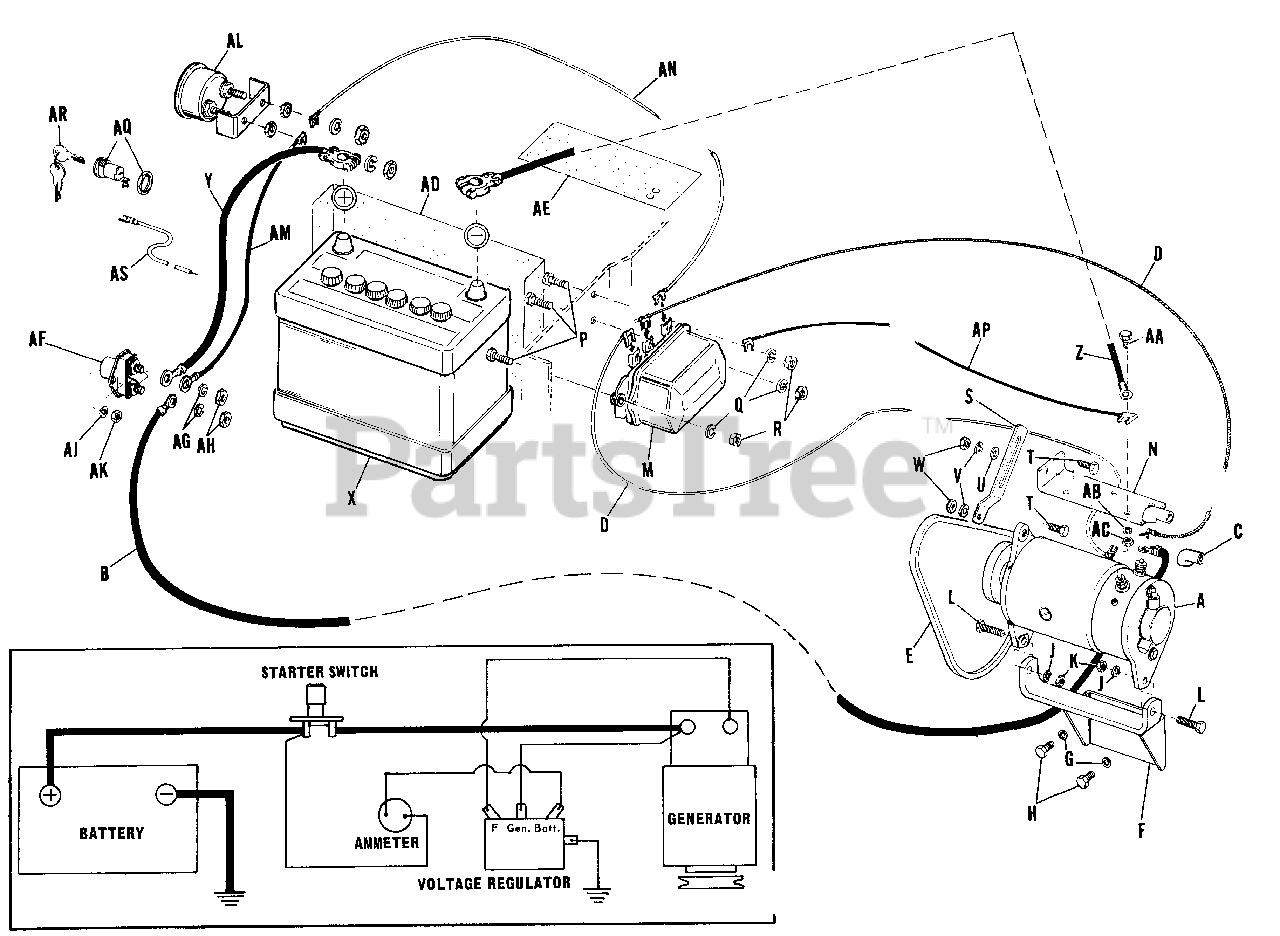

ELECTRIC STARTER-GENERATOR SYSTEM Parts Diagram

  • Title

A

Simplicity 122041

Motor-Generator

$

$

Not available

B

Simplicity 122149

Cable, Generator, Start

$

$

Not available

C

Simplicity 2122023SM

Terminal Cover

$5.99

$

In Stock, only 3 left!

0

D

Simplicity 122140

Wire, Reg. Gen.

$

$

Not available

E

Simplicity 2122146

"V"-Belt

$

$

Not available

F

Simplicity 2157004

Support Assembly

$

$

Not available

G

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

H

Simplicity 2705017

Hex Capscrew, 5/16"-18 x 3/4" lg.

$

$

Not available

J

Simplicity 2720001

Lock Washer, 5/16 "

$

$

Not available

K

Simplicity 2717001

Hex Nut, Full, 5/16"-18

$

$

Not available

L

Simplicity 2705019

Hex Capscrew, 5/16"-18 x 1-1/4"

$

$

Not available

M

Simplicity 122148

Voltage Regulator

$

$

Not available

N

Simplicity 154002

Bracket

$

$

Not available

P

Simplicity 2705030

Hex Capscrew, 1/4"-20 x 3/4" lg.

$

$

Not available

Q

Simplicity 2720003

Lock Washer, 1/4"

$

$

Not available

R

Simplicity 2717005

Hex Nut, Full, 1/4"-20

$

$

Not available

S

Simplicity 2157102SM

Belt Tightener

$

$

Not available

T

Simplicity 2705017

Hex Capscrew, 5/16"-18 x 3/4" lg.

$

$

Not available

U

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

V

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

W

Simplicity 2717001

Hex Nut, Full, 5/16"-18

$

$

Not available

X

Simplicity 2122135

Battery

$

$

Not available

Y

Simplicity 122139

Cable (Battery to Starter)

$

$

Not available

Z

Simplicity 2122138

Cable (Battery to Ground)

$

$

Not available

AA

Simplicity 2705015

Hex Capscrew, 1/4"-20 x 5/8" lg.

$

$

Not available

AB

Simplicity 2720003

Lock Washer, 1/4"

$

$

Not available

AC

Simplicity 2717005

Hex Nut, Full, 1/4"-20

$

$

Not available

AD

Simplicity 122142

Battery Insulation

$

$

Not available

AE

Simplicity 122143

Fuel Tank Insulation

$

$

Not available

AF

Simplicity 2122046

Starter Switch

$

$

Not available

AG

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

AH

Simplicity 2717003

Hex Nut, Full

$

$

Not available

AJ

Simplicity 2720003

Lock Washer, 1/4"

$

$

Not available

AK

Simplicity 2717005

Hex Nut, Full, 1/4"-20

$

$

Not available

AL

Simplicity 2122131SM

Ammeter
(Superseded to 7019547YP)

$90.99

$

Usually ships in 2-12 days

0

AM

Simplicity 122145

Wire (Ammeter to Starter)

$

$

Not available

AN

Simplicity 122144

Wire (Ammeter to Regulator)

$

$

Not available

AP

Simplicity 122147

Wire (Ground to Ground)

$

$

Not available

AQ

Simplicity 1686702SM

Ignition Switch

$

$

Not available

AR

Simplicity 2122111SM

Keys

$22.99

$

Usually ships in 2-12 days

0

AS

Simplicity 122141

Wire (Switch to Engine)

$

$

Not available
