990317 - Simplicity PTO Kit for Landlord POWER TAKE-OFF Parts Diagram

PTO Kit for Landlord

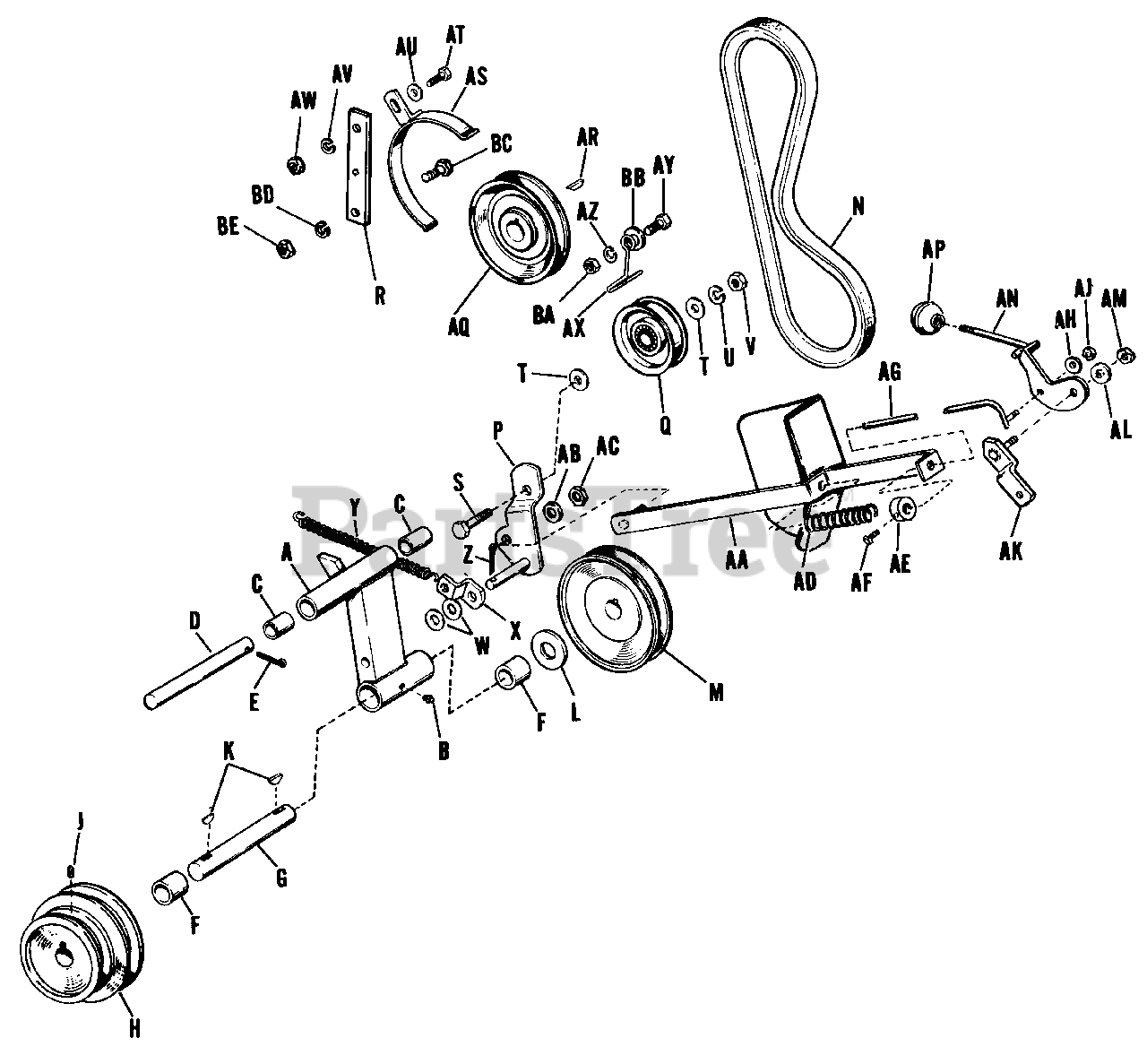

POWER TAKE-OFF Parts Diagram

  • Title

A

Simplicity 154228

Bracket Assembly, Drive

$

$

Not available

B

Simplicity 2727006

Fitting, Grease

$

$

Not available

C

Simplicity 2156064SM

Bushing

$22.99

$

Usually ships in 2-12 days

0

D

Simplicity 2154233

Rod, Pivot

$

$

Not available

E

Simplicity 2722007

Pin, Cotter

$

$

Not available

F

Simplicity 2154258SM

Bearing, Needle

$26.99

$

In Stock, only 2 left!

0

G

Simplicity 157118

Shaft, Power Take-Off

$

$

Not available

H

Simplicity 2157116SM

Pulley, Power Take-Off

$104.99

$

Usually ships in 2-12 days

0

J

Simplicity 2713503

Screw, Set, Cup Point, Socket Hd., 5/16"-18 N.C. x 5/16" lg.

$

$

Not available

K

Simplicity 2725003

Key, Woodruff

$

$

Not available

L

Simplicity 2108182SM

Washer

$

$

Not available

M

Simplicity 154308

Pulley

$

$

Not available

N

Simplicity 2106390

Belt, "V", Power Take-Off

$

$

Not available

P

Simplicity 154360

Lever Assembly, Idler

$

$

Not available

Q

Simplicity 2154534SM

Pulley, Idler

$32.99

$

In Stock, only 2 left!

0

R

Simplicity 157050

Guard Support

$

$

Not available

S

Simplicity 2705016

Capscrew, Hex Hd., 3/8"-16 N.C. x 1-1/4" lg.

$

$

Not available

T

Simplicity 2719002

Washer, Plain, 5/16"

$

$

Not available

U

Simplicity 2720002

Washer, Lock, 3/8"

$

$

Not available

V

Simplicity 2717003

Nut, Hex, Full, 3/8"-16 N.C.

$

$

Not available

W

Simplicity 2719001

Washer, Plain, 3/8"

$

$

Not available

X

Simplicity 154368

Clip, Spring

$

$

Not available

Y

Simplicity 2154369SM

Spring, Tension

$17.99

$

In Stock, only 1 left!

0

Z

Simplicity 2722009

Pin, Cotter, 1/8" x 3/4" lg.

$

$

Not available

AA

Simplicity 154540

Guide Assembly, Rod

$

$

Not available

AB

Simplicity 2719001

Washer, Plain, 3/8"

$

$

Not available

AC

Simplicity 2717510

Nut, Lock, Hex Hd., Full, 3/8"-16 N.C.

$

$

Not available

AD

Simplicity 1729277SM

Spring

$6.99

$

Usually ships in 2-12 days

0

AE

Simplicity 1729276SM

Collar, Set

$

$

Not available

AF

Simplicity 2713001

Screw, Set. Sq. Hd. Cup Pt., 1/4"-20 N.C. x 3/8" lg.

$

$

Not available

AG

Simplicity 2154364

Rod Assembly, Clutch

$

$

Not available

AH

Simplicity 2719002

Washer, Plain, 5/16"

$

$

Not available

AJ

Simplicity 2717511

Nut, Lock, Hex Hd., Full, 5/16"-18 N.C.

$

$

Not available

AK

Simplicity 154362

Pivot Bar Assembly

$

$

Not available

AL

Simplicity 2719001

Washer, Plain, 3/8"

$

$

Not available

AM

Simplicity 2717510

Nut, Lock, Hex Hd. Full, 3/8"-16 N.C.

$

$

Not available

AN

Simplicity 154356

Lever Assembly, Clutch

$

$

Not available

AP

Simplicity 2122005SM

Knob

$14.99

$

In Stock, only 1 left!

0

AQ

Simplicity 2157121SM

Pulley

$55.99

$

Usually ships in 2-12 days

0

AR

Simplicity 2805850SM

Key

$2.49

$

Usually ships in 2-12 days

0

AS

Simplicity 157132

Guard Assembly, Belt

$

$

Not available

AT

Simplicity 2705005

Capscrew, 3/8"-16 N.C. x 1" lg.

$

$

Not available

AU

Simplicity 2719001

Washer, Plain, 3/8"

$

$

Not available

AV

Simplicity 2720002

Washer, Lock, 3/8"

$

$

Not available

AW

Simplicity 2717003

Nut, Hex, Full, 3/8"-16 N.C.

$

$

Not available

AX

Simplicity 8021014

Stop, Belt

$

$

Not available

AY

Simplicity 2705031

Capscrew, 3/8"-16 N.C. x 7/8" lg.

$

$

Not available

AZ

Simplicity 2720002

Washer, Lock, 3/8"

$

$

Not available

BA

Simplicity 2717003

Nut, Full, Hex, 3/8"-16 N.C.

$

$

Not available

BB

Simplicity 2719001

Washer, Plain, 3/8"

$

$

Not available

BC

Simplicity 2705007

Hex Capscrew, 5/16"-18 x 1" lg.

$

$

Not available

BD

Simplicity 2720001

Lockwasher, 5/16"

$

$

Not available

BE

Simplicity 2717001

Hex Nut, 5/16"-18

$

$

Not available
