990328 - Simplicity Vacuum Collector COLLECTOR & BLOWER HOUSING Parts Diagram

Vacuum Collector

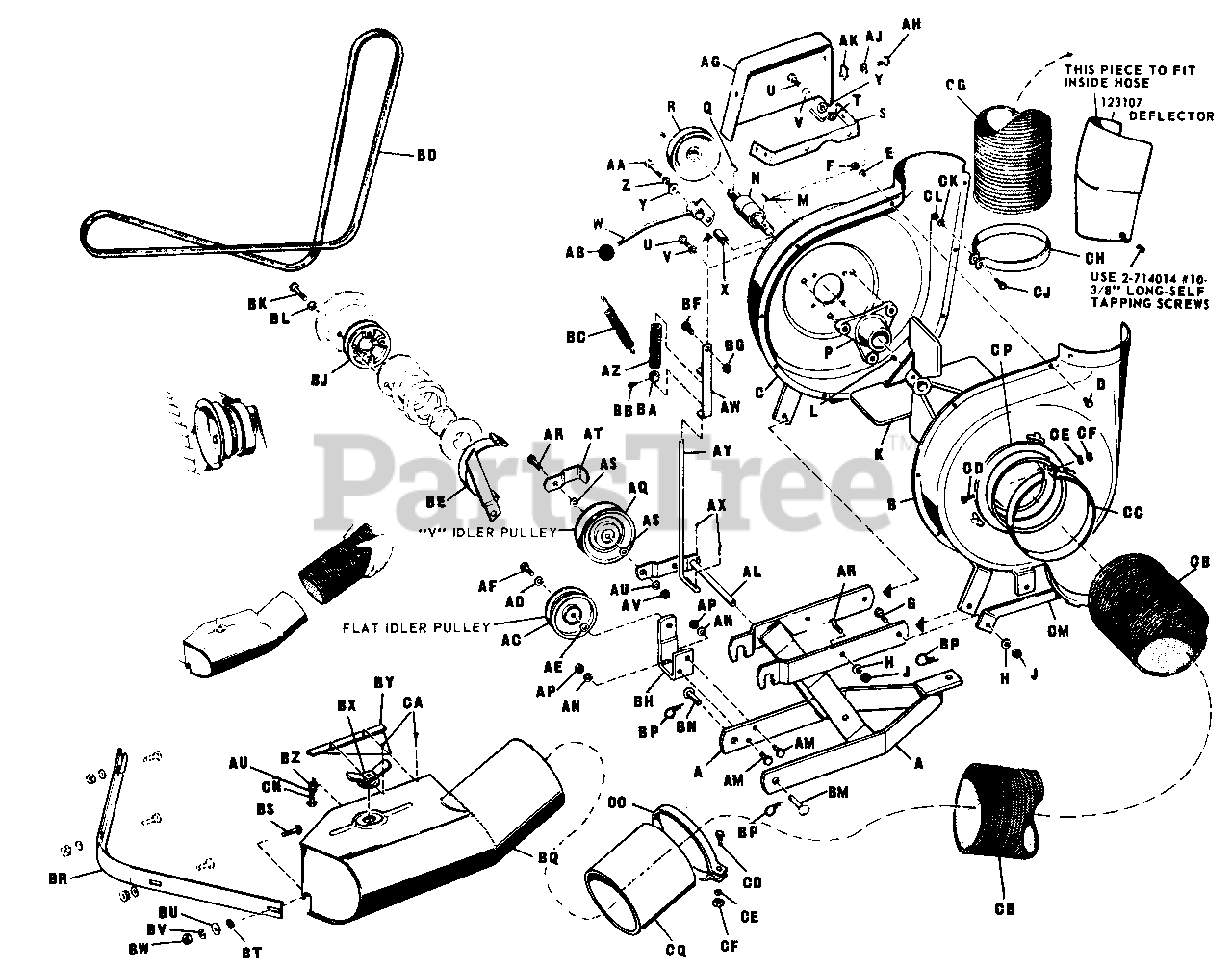

COLLECTOR & BLOWER HOUSING Parts Diagram

  • Title

A

Simplicity 123001

Blower Housing Support Assembly

$

$

Not available

B

Simplicity 2177268

Housing Assembly, Inlet Half

$

$

Not available

C

Simplicity 2123012

Blower Housing Half Assy., R.H.

$

$

Not available

D

Simplicity 2705002

Hex Capscrew, 1/4"-20 x 1/2 " lg.

$

$

Not available

E

Simplicity 2720003

Lock Washer, 1/4"

$

$

Not available

F

Simplicity 2717005

Hex Nut, Full, 1/4"-20

$

$

Not available

G

Simplicity 2705005

Hex Capscrew, 3/8"-16 x 1" lg.

$

$

Not available

H

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

J

Simplicity 2717003

Hex Nut, Full, 3/8"-16

$

$

Not available

K

Simplicity 2123015ASM

Fan Assembly

$353.99

$

Usually ships in 2-12 days

0

L

Simplicity 2713006

Set Screw, Cup Pt., 5/16"-18 x 1/2"

$

$

Not available

M

Simplicity 2725504

Hi-Pro Key, 3/16" x 3/4" Dia.

$

$

Not available

N

Simplicity 2123087SM

Shaft & Bearing*

$139.99

$

Usually ships in 2-12 days

0

P

Simplicity 2123087SM

Flange, Shaft & Bearing*

$139.99

$

Usually ships in 2-12 days

0

Q

Simplicity 2725504

Hi-Pro Key, 3/16" x 3/4 Dia.

$

$

Not available

R

Simplicity 123021

Pulley

$

$

Not available

S

Simplicity 123084

Belt Guard Bracket

$

$

Not available

T

Simplicity 106346

Belt Stop

$

$

Not available

U

Simplicity 2705016

Hex Capscrew, 3/8"-16 x 1-1/4" lg.

$

$

Not available

V

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

W

Simplicity 123082

Clutch Lever Assembly

$

$

Not available

X

Simplicity 2123027SM

Clutch Lever Spacer

$10.99

$

Usually ships in 2-12 days

0

Y

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

Z

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

AA

Simplicity 2705006

Hex Capscrew, 3/8"-16 x 2" lg.

$

$

Not available

AB

Simplicity 2106567

Knob

$

$

Not available

AC

Simplicity 159066

Idler Pulley

$

$

Not available

AD

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

AE

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

AF

Simplicity 2705005

Hex Capscrew, 3/8"-16 x 1" lg.

$

$

Not available

AG

Simplicity 123085

Belt Guard

$

$

Not available

AH

Simplicity 2705012

Hex Capscrew, 5/16"-18 x 5/8" lg.

$

$

Not available

AJ

Simplicity 2720001

Lockwasher, 5/16"

$

$

Not available

AK

Simplicity 2718030

Nut, Retainer

$

$

Not available

AL

Simplicity 123078

Idler Arm Assembly

$

$

Not available

AM

Simplicity 2705007

Hex Capscrew, 5/16"-18 x 1" lg.

$

$

Not available

AN

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

AP

Simplicity 2717001

Hex Nut, 5/16"-18

$

$

Not available

AQ

Simplicity 2101096SM

Idler Pulley

$59.99

$

In Stock, only 1 left!

0

AR

Simplicity 2705009

Hex Capscrew, 3/8"-16 x 1-1/2" lg.

$

$

Not available

AS

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

AT

Simplicity 123031

Belt Stop

$

$

Not available

AU

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

AV

Simplicity 2717003

Hex Nut, Full, 3/8"-16

$

$

Not available

AW

Simplicity 123076

Rod Guide Assembly

$

$

Not available

AX

Simplicity 2722001

Cotter Pin, 3/32" x 3/4" lg.

$

$

Not available

AY

Simplicity 123074

Clutch Rod

$

$

Not available

AZ

Simplicity 1729277SM

Spring

$6.99

$

Usually ships in 2-12 days

0

BA

Simplicity 1729276SM

Set Collar

$

$

Not available

BB

Simplicity 2713001

Set Screw, Cup Pt., 1/4"-20 x 3/8

$

$

Not available

BC

Simplicity 2121037SM

Spring

$

$

Not available

BD

Simplicity 2123073

"V" Belt

$

$

Not available

BE

Simplicity 123071

Belt Guard Assembly

$

$

Not available

BF

Simplicity 2705012

Hex Capscrew, 5/16"-18 x 5/8" lg.

$

$

Not available

BG

Simplicity 2717511

Lock Nut, 5/16"-18

$

$

Not available

BH

Simplicity 123081

Idler Support Bracket

$

$

Not available

BJ

Simplicity 122151

Pulley

$

$

Not available

BK

Simplicity 2705023

Hex Capscrew, 5/16"-18 x 1-3/4" lg

$

$

Not available

BL

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

BM

Simplicity 2118053SM

Pin
(Superseded to 704241)

$9.99

$

Usually ships in 2-12 days

0

BN

Simplicity 2155037SM

Pin

$12.99

$

In Stock, only 1 left!

0

BP

Simplicity 1918196SM

Spring Clip
(Superseded to 5025210YP)

$3.99

$

In Stock, only 3 left!

0

BQ

Simplicity 123054

Housing Assembly, Side Collector

$

$

Not available

BR

Simplicity 123059

Front Baffle

$

$

Not available

BS

Simplicity 2703002

Carriage Bolt, 3/8"-16 x 1-1/4" lg.

$

$

Not available

BT

Simplicity 2153081

Spacer

$

$

Not available

BU

Simplicity 157169

Washer

$

$

Not available

BV

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

BW

Simplicity 2717003

Hex Nut, Full, 3/8"-16

$

$

Not available

BX

Simplicity 2123060

Nut Assembly

$

$

Not available

BY

Simplicity 123062

Baffle (To be used with new 42" Mower)

$

$

Not available

BZ

Simplicity 2717003

Hex Nut 3/8 x 16NC

$

$

Not available

CA

Simplicity 714005

Self-Tapping Screw, #10-24 x 1/2" lg.

$

$

Not available

CB

Simplicity 123064

Intake Hose, 7" Dia.

$

$

Not available

CC

Simplicity 123065

Hose Clamp

$

$

Not available

CD

Simplicity 715069

Hex Capscrew, 1/4"-20 x 3" lg.
(Superseded to 715327)

$122.99

$

Usually ships in 2-12 days

0

CE

Simplicity 2720003

Lock Washer, 1/4"

$

$

Not available

CF

Simplicity 2717005

Hex Nut, Full, 1/4"-20

$

$

Not available

CG

Simplicity 2123066

Exhaust Hose, 6" Dia.

$

$

Not available

CH

Simplicity 2123067

Hose Clamp

$

$

Not available

CJ

Simplicity 710005

Hex Capscrew, 1/4"-20 x 3 lg.

$5.49

$

Usually ships in 2-12 days

0

CK

Simplicity 2720003

Lock Washer, 1/4"

$

$

Not available

CL

Simplicity 2717005

Hex Nut, Full, 1/4"-20

$

$

Not available

CM

Simplicity 123068

Hose support Assembly

$

$

Not available

CN

Simplicity 2703003

Carriage Bolt, 3/8"-16 x 1" lg.

$

$

Not available

CP

Simplicity 2123111SM

Flange

$

$

Not available

CQ

Simplicity 123117

Hose Extension

$

$

Not available
