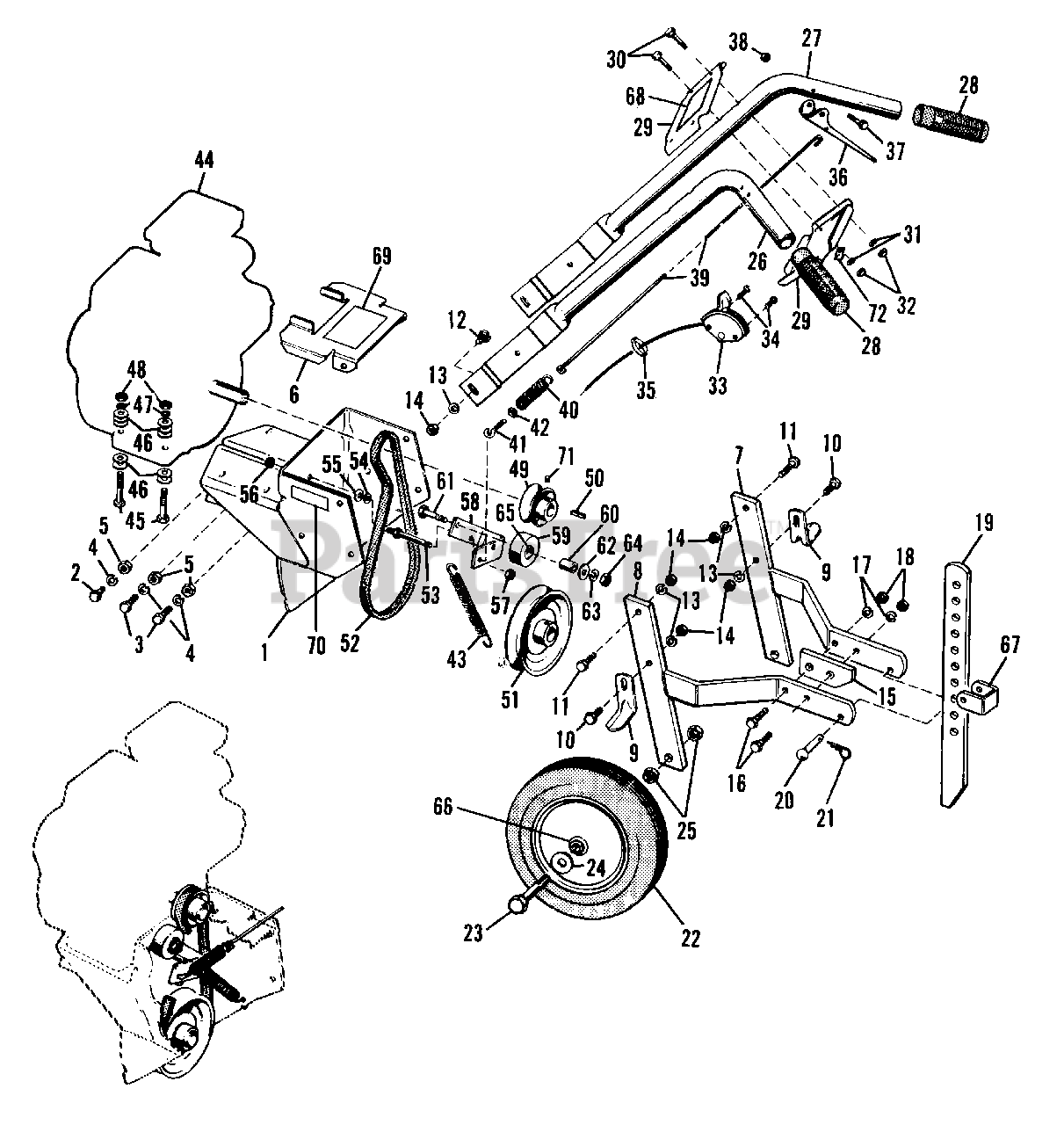

990336 - Simplicity Roticul Tiller, 3hp Frame, Handles & Controls Parts Diagram

Roticul Tiller, 3hp

Frame, Handles & Controls Parts Diagram

  • Title

1

Simplicity 118307

BODY ASSY

$

$

Not available

2

Simplicity 2808127

CAPSCREW, Hex, 3/8-16 x 3/4

$

$

Not available

3

Simplicity 2822605

CAPSCREW, Hex, 3/8-16 x 1-1/4

$

$

Not available

4

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 9

0

5

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 10

0

6

Simplicity 118303

COVER

$

$

Not available

7

Simplicity 118229

SUPPORT ASSY, R.H.

$

$

Not available

8

Simplicity 118232

SUPPORT ASSY, L.H.

$

$

Not available

9

Simplicity 118220

SCRAPER

$

$

Not available

10

Simplicity 2807731

CAPSCREW, Hex, 3/8-16 x 1

$

$

Not available

11

Simplicity 2817400

CAPSCREW, Hex, 3/8-16 x 1-1/4

$

$

Not available

12

Simplicity 2822110

BOLT, Carriage, 3/8-16 x 3/4

$

$

Not available

13

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 9

0

14

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 10

0

15

Simplicity 118207

PLATE, Stop

$

$

Not available

16

Simplicity 2819360

CAPSCREW, Hex, 3/8-16 x 1-1/2

$

$

Not available

17

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 9

0

18

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 10

0

19

Simplicity 118081

BAR, Depth

$

$

Not available

20

Simplicity 2105249SM

PIN

$16.99

$

Usually ships in 2-12 days

0

21

Simplicity 1918196SM

CLIP, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, only 2 left!

0

22

Simplicity 118030

WHEEL & TIRE ASSY

$

$

Not available

23

Simplicity 2808529

CAPSCREW, Hex, 1/2-13 x 3-1/4

$

$

Not available

24

Simplicity 2818431

WASHER, Plain, 1/2

$

$

Not available

25

Simplicity 2813744

NUT, Jam, Hex, 1/2-13

$

$

Not available

26

Simplicity 118345

HANDLE, L.H.

$

$

Not available

27

Simplicity 118344

HANDLE, R.H.

$

$

Not available

28

Simplicity 2106558

GRIP, Handle

$

$

Not available

29

Simplicity 118298

COVER, Handle, Upper

$

$

Not available

30

Simplicity 2818240

CAPSCREW, Hex, 1/4-20 x 1-1/2

$

$

Not available

31

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

32

Simplicity 2816622SM

NUT, Hex, Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 3 left!

0

33

Simplicity 118300

THROTTLE ASSY, Control

$

$

Not available

34

Simplicity 922124

SCREW, Self-Tapping, #10-24 x 1

$

$

Not available

35

Simplicity 80611-08

CLIP, Cable

$

$

Not available

36

Simplicity 1180-56

GRIP, Clutch

$

$

Not available

37

Simplicity 2818240

CAPSCREW, Hex, 1/4-20 x 1-1/2

$

$

Not available

38

Simplicity 2823358

NUT, Hex, Full Lock, 1/4-20

$

$

Not available

39

Simplicity 118291

EXTENSION, Spring

$

$

Not available

40

Simplicity 118290

SPRING

$

$

Not available

41

Simplicity 118311

BOLT, Eye

$

$

Not available

42

Simplicity 2816621

NUT, Hex, Full, #10-24

$

$

Not available

43

Simplicity 2159106SM

SPRING (Clutch Return)
(Superseded to 703144)

$5.99

$

In Stock, Qty 10

0

44

ENGINE, Briggs & Stratton, Model 80202, Type 0252-01

$

$

Not available

45

Simplicity 2819354

CAPSCREW, hex, 5/16-18 x 2

$

$

Not available

46

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

47

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

48

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

49

Simplicity 2118027SM

PULLEY, Engine

$50.99

$

Usually ships in 2-12 days

0

50

Simplicity 2805850SM

KEY

$2.49

$

Usually ships in 2-12 days

0

51

Simplicity 118301

PULLEY, Driven

$

$

Not available

52

Simplicity 2118312

BELT, V

$

$

Not available

53

Simplicity 118292

STUD, Pivot

$

$

Not available

54

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

55

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

56

Simplicity 2827557

NUT, Flange, Whiz-Lock, 5/16-1

$

$

Not available

57

Simplicity 2823362

NUT, Lock, Full, 5/16-18

$

$

Not available

58

Simplicity 118302

CLUTCH, Lever

$

$

Not available

59

Simplicity 101002

PULLEY ASSY, Idler

$

$

Not available

60

Simplicity 8191020

SPACER

$

$

Not available

61

Simplicity 2819360

CAPSCREW, Hex, 3/8-16 x 1-1/2

$

$

Not available

62

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

63

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 9

0

64

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 10

0

65

Simplicity 8161243

BEARING

$

$

Not available

66

Simplicity 2118132SM

BUSHING

$

$

Not available

67

Simplicity 118371

CLAMP

$

$

Not available

68

Simplicity 118310

DECAL

$

$

Not available

69

Simplicity 106719

DECAL

$

$

Not available

70

Simplicity 118297

DECAL

$

$

Not available

71

Simplicity 2828691

SETSCREW

$

$

Not available

72

Simplicity 2106786

CLIP, Cable

$

$

Not available
