990336 - Simplicity Roticul Tiller, 3hp Tine Assy & Gear Housing Parts Diagram

Roticul Tiller, 3hp

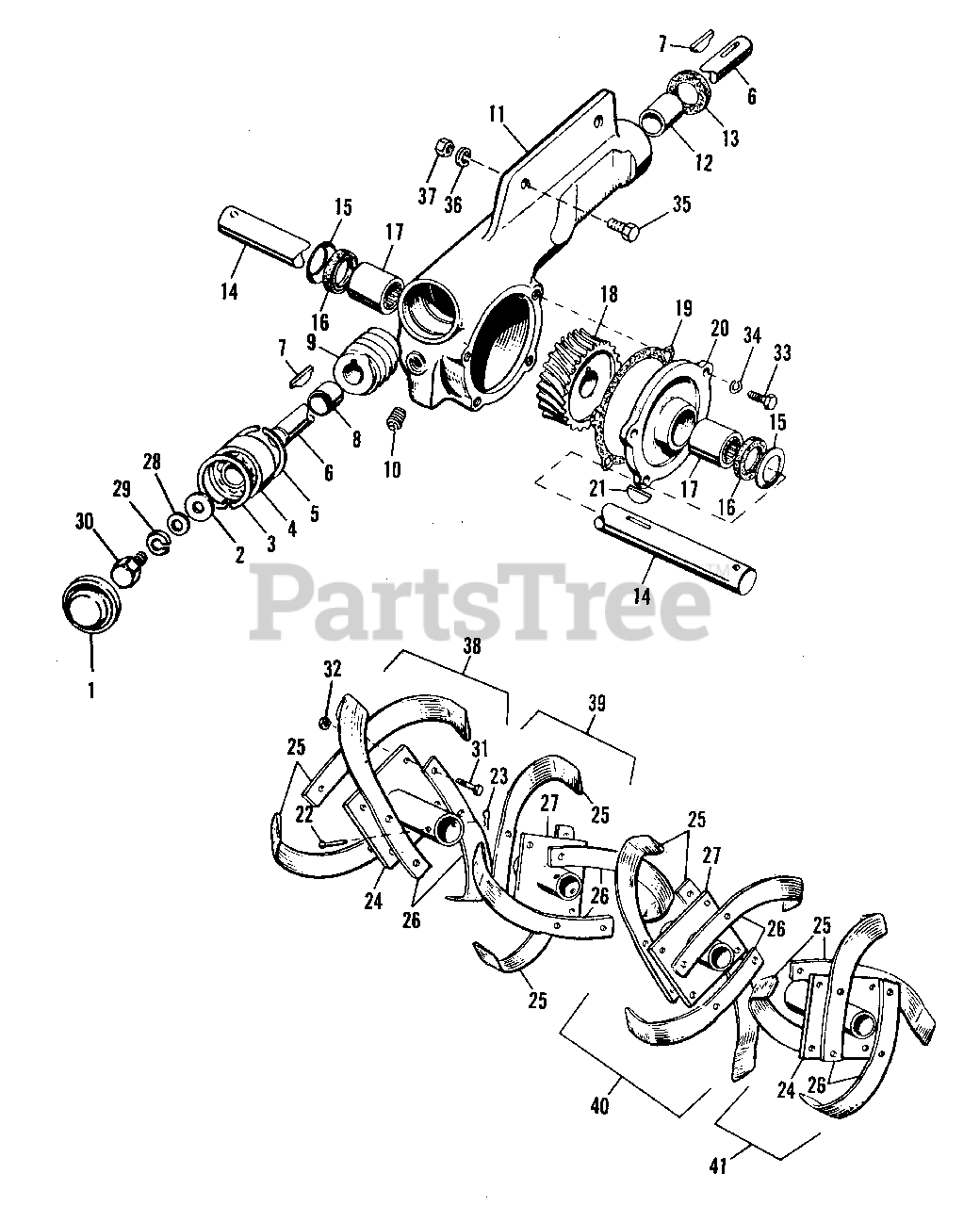

Tine Assy & Gear Housing Parts Diagram

  • Title

1

Simplicity 1181-79

CUP

$

$

Not available

2

Simplicity 1181-78

WASHER

$

$

Not available

3

Simplicity 1180-61

RING, Retaining

$

$

Not available

4

Simplicity 2118011SM

BEARING, Ball

$

$

Not available

5

Simplicity 1180-94

RING, Snap

$

$

Not available

6

Simplicity 118177

SHAFT, Worm

$

$

Not available

7

Simplicity 911171

KEY, Hi-Pro #706

$

$

Not available

8

Simplicity 1180-60

SPACER

$

$

Not available

9

Simplicity 118016

WORM

$

$

Not available

10

Simplicity 2801653

PLUG, Pipe, 3/8

$

$

Not available

11

Simplicity 110869

DRIVE HOUSING, Worm

Note: Used On Mfg. No. 990107 & 990233 Only.

$

$

Not available

11

Simplicity 118387

DRIVE HOUSING, Worm

$

$

Not available

12

Simplicity 118072

BUSHING

Note: Used On Mfg. No. 990107 & 990233 Only.

$

$

Not available

12

Simplicity 118389

BUSHING

$

$

Not available

13

Simplicity 2118117SM

SEAL, Oil

$13.99

$

In Stock, only 2 left!

0

14

Simplicity 118021

SHAFT, Worm Gear

$

$

Not available

15

Simplicity 2118082SM

WASHER

$2.99

$

Usually ships in 2-12 days

0

16

Simplicity 2118118SM

SEAL, Oil

$10.99

$

In Stock, only 4 left!

0

17

Simplicity 2118020SM

BEARING, Needle

$31.99

$

Usually ships in 2-12 days

0

18

Simplicity 2118022SM

GEAR, Worm

$286.99

$

Usually ships in 2-12 days

0

19

Simplicity 2118024SM

GASKET

$12.99

$

In Stock, only 1 left!

0

20

Simplicity 118070

COVER

Note: Used On Mfg. No. 990107 & 990233 Only.

$

$

Not available

20

Simplicity 1183-16

COVER

$

$

Not available

21

Simplicity 2830246SM

KEY, Woodruff, 1/4-3/4, #91
(Superseded to 704280)

$4.99

$

In Stock, Qty 10

0

22

Simplicity 2118053SM

PIN
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

23

Simplicity 1918196SM

CLIP, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, only 1 left!

0

24

Simplicity 105221

PLATE ASSY, Outer Tine (990233 Only)

$

$

Not available

24

Simplicity 118046

PLATE ASSY, Outer Tine

$

$

Not available

25

Simplicity 1729271SM

BLADE, L.H. Tine

Note: Used On Mfg. No. 990107 & 990233 Only.

$

$

Not available

25

Simplicity 2118294

BLADE, L.H. Tine

$

$

Not available

26

Simplicity 1729272SM

BLADE, R.H. Tine

Note: Used On Mfg. No. 990107 & 990233 Only.

$28.99

$

Usually ships in 2-12 days

0

26

Simplicity 2118295

BLADE, R.H. Tine

$

$

Not available

27

Simplicity 118084

PLATE ASSY, Inner Tine

$

$

Not available

28

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

29

Simplicity 1916965SM

LOCKWASHER, 5/16
(Superseded to 703454)

$3.49

$

In Stock, Qty 7

0

30

Simplicity 2827008SM

CAPSCREW, Hex Hd., 3/8-24 x 1

$2.99

$

Usually ships in 2-12 days

0

31

Simplicity 920488

CAPSCREW, Hex Hd., 7/16-20 x 1-1/4

$

$

Not available

32

Simplicity 2828867

NUT, Hex, Full Lock, 7/16-20

$

$

Not available

33

Simplicity 2821959

CAPSCREW, Hex Hd., 1/4-20 x 5/8

$

$

Not available

34

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

35

Simplicity 2822605

CAPSCREW, Hex Hd., 3/8-16 x 3/4

Note: Used On Mfg. No. 990107 & 990233 Only.

$

$

Not available

36

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

Note: Used On Mfg. No. 990107 & 990233 Only.

$3.49

$

In Stock, Qty 7

0

37

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

Note: Used On Mfg. No. 990107 & 990233 Only.

$4.49

$

In Stock, Qty 10

0

38

Simplicity 1652471

TINE ASSY, Outer R.H.

Note: Used On Mfg. No. 990336 Only.

$

$

Not available

39

Simplicity 1609338

TINE ASSY, Inner R.H.

Note: Used On Mfg. No. 990336 Only.

$

$

Not available

40

Simplicity 1609337

TINE ASSY, Inner L.H.

Note: Used On Mfg. No. 990336 Only.

$

$

Not available

41

Simplicity 1652470

TINE ASSY, Outer L.H.

Note: Used On Mfg. No. 990336 Only.

$

$

Not available

42

Simplicity 2118315SM

WASHER, Thrust

Note: Used On Mfg. No. 990336 Only.

$9.99

$

In Stock, Qty 7

0
