990339 - Simplicity Hydraulic Kit Hydraulic Group (3634I01) Parts Diagram

Hydraulic Kit

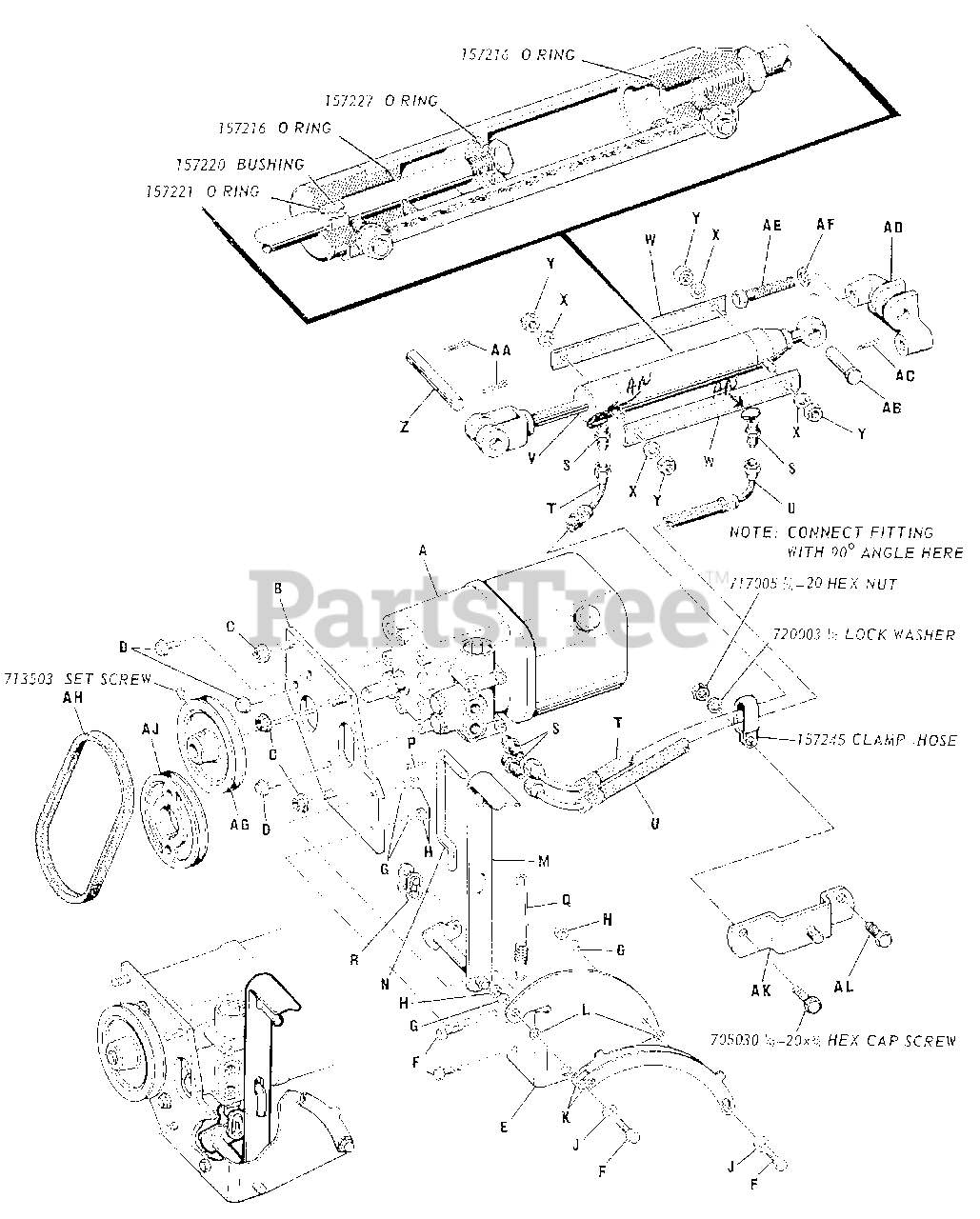

Hydraulic Group (3634I01) Parts Diagram

  • Title

A

Simplicity 157175

PUMP & TANK

$

$

Not available

B

Simplicity 157420

SUPPORT

$

$

Not available

C

Simplicity 2718033

NUT, Hex, Whiz Lock, Flange, 5/16-18

$

$

Not available

D

Simplicity 2715060

CAPSCREW, Hex, 1/4-20 x 3/4 Lg.

$

$

Not available

E

Simplicity 157199

QUADRANT

$

$

Not available

F

Simplicity 2715057

CAPSCREW, Hex, 1/4-20 x 3/4 Lg.

$

$

Not available

G

Simplicity 2720003

WASHER, Lock, 1/4

$

$

Not available

H

Simplicity 2717005

NUT, Hex, Full, 1/4-20

$

$

Not available

J

Simplicity 2719006

WASHER, Flat, 1/4

$

$

Not available

K

Simplicity 157204

PLATE, Stop

$

$

Not available

L

Simplicity 157205

SPACER

$

$

Not available

M

Simplicity 157200

LEVER ASSEMBLY

$

$

Not available

N

Simplicity 157206

ROD, Latch

$

$

Not available

P

Simplicity 2722016

PIN, Cotter, 3/32 x 5/8

$

$

Not available

Q

Simplicity 2157207SM

SPRING

$15.99

$

Usually ships in 2-12 days

0

R

Simplicity 157208

LINK, Connecting

$

$

Not available

S

Simplicity 157209

FITTING

$

$

Not available

T

Simplicity 157210

HOSE ASSEMBLY, Short

$

$

Not available

U

Simplicity 157211

HOSE ASSEMBLY, Long

$

$

Not available

V

Simplicity 157236

CYLINDER ASSEMBLY

$

$

Not available

W

Simplicity 157228

BAR, Side

$

$

Not available

X

Simplicity 2720001

WASHER, Lock, 5/16"

$

$

Not available

Y

Simplicity 2717001

NUT, Hex, Full, 5/16-18

$

$

Not available

Z

Simplicity 157225

PIN

$

$

Not available

AA

Simplicity 2722009

PIN, Cotter, 1/8 x 3/4

$

$

Not available

AB

Simplicity 157194

PIN, Ram Bracket

$

$

Not available

AC

Simplicity 2722009

PIN, Cotter, 1/8 x 3/4

$

$

Not available

AD

Simplicity 157001

BRACKET, Ram

$

$

Not available

AE

Simplicity 705052

CAPSCREW, Hex, 7/16-14 x 2-1/4 Lg.

$10.99

$

In Stock, only 1 left!

0

AF

Simplicity 2720006

WASHER, Lock, 7/16"

$

$

Not available

AG

Simplicity 157229

PULLEY, Pump

$

$

Not available

AH

Simplicity 2157230SM

BELT, "V"

$20.99

$

Usually ships in 2-12 days

0

AJ

Simplicity 157231

PULLEY, Drive

$

$

Not available

AK

Simplicity 157233

BAR ASSEMBLY

$

$

Not available

AL

Simplicity 2705007

CAPSCREW, Hex, 5/16-18 x 1 Lg.

$

$

Not available
