990345 - Simplicity 36" Rotary Snow Blower Attachment HITCH & PULLEY GROUP Parts Diagram

36" Rotary Snow Blower Attachment

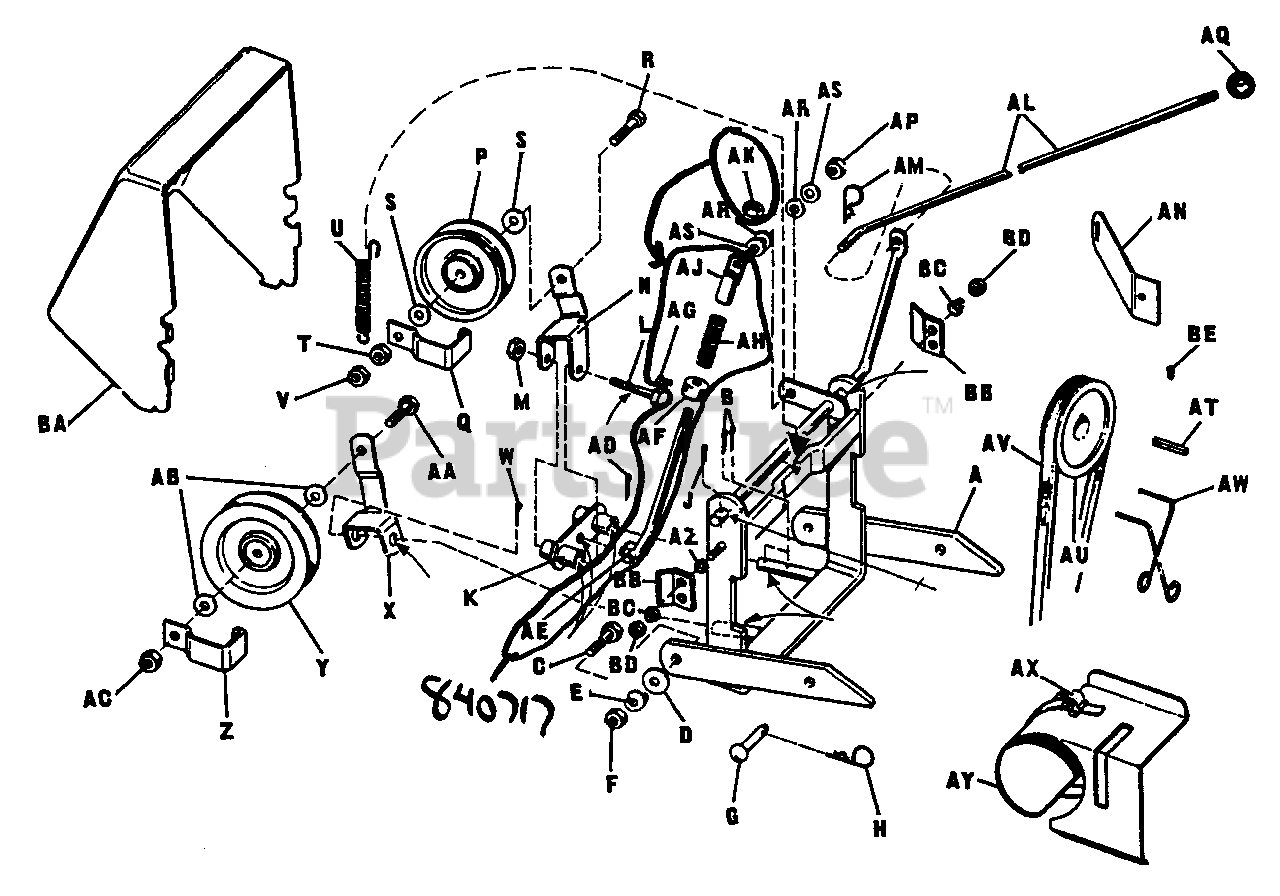

HITCH & PULLEY GROUP Parts Diagram

  • Title

A

Simplicity 106726

Hitch Assembly

$

$

Not available

B

Simplicity 2722006

Cotter Pin, 1/8" Dia. x 1"

$

$

Not available

C

Simplicity 2121184

Hex. Cap Screw

$

$

Not available

D

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

E

Simplicity 721701

Spring Washer, 3/8"

$

$

Not available

F

Simplicity 2717515

Full Lock Hex Nut, 3/8"-24

$

$

Not available

G

Simplicity 2118053SM

Pin
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

H

Simplicity 2106788

Spring Clip

$

$

Not available

J

Simplicity 2722006

Cotter Pin, 1/8" Dia. x 1"

$

$

Not available

K

Simplicity 106674

Lever Ass'y Idler

$

$

Not available

L

Simplicity 2705003

Hex. Cap Screw

$

$

Not available

M

Simplicity 2717510

Full Lock Hex. Nut, 3/8"-16

$

$

Not available

N

Simplicity 106695

Idler Bracket

$

$

Not available

P

Simplicity 2106716

Idler Pulley

$

$

Not available

Q

Simplicity 2106717

Guide Belt

$

$

Not available

R

Simplicity 2705009

Hex. Cap Screw, 3/8"-16 x 1-1/2"

$

$

Not available

S

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

T

Simplicity 2717013

Hex. Jam Nut

$

$

Not available

U

Simplicity 2106681SM

Return Spring

$16.99

$

Usually ships in 2-12 days

0

V

Simplicity 2717510

Full Lock Nut, Hex. 3/8"-16

$

$

Not available

W

Simplicity 2722006

Cotter Pin, 1/8" Dia. x 1"

$

$

Not available

X

Simplicity 106694

Idler Bracket

$

$

Not available

Y

Simplicity 2101096SM

Idler Pulley

$59.99

$

Usually ships in 2-12 days

0

Z

Simplicity 106690

Belt Guide

$

$

Not available

AA

Simplicity 2705016

Hex. Cap Screw, 3/8"-16 x 1-1/4"

$

$

Not available

AB

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

AC

Simplicity 2717510

Full Lock Nut, Hex. 3/8"-16

$

$

Not available

AD

Simplicity 2722001

Cotter Pin, 3/32" Dia. x 3/4"

$

$

Not available

AE

Simplicity 106770

Clutch Rod

$

$

Not available

AF

Simplicity 1729276SM

Set Collar

$23.99

$

Usually ships in 2-12 days

0

AG

Simplicity 2713001

Set Sq. Hd. Cup Pt. Screw, 1/4"-20 x 3/8" lg.

$

$

Not available

AH

Simplicity 1729277SM

Spring

$6.99

$

Usually ships in 2-12 days

0

AJ

Simplicity 106768

Rod Assembly Guide

$

$

Not available

AK

Simplicity 2717511

Hex. Full Lock Nut, 5/16"-18

$

$

Not available

AL

Simplicity 106710

Clutch Handle

$

$

Not available

AM

Simplicity 2106787

Spring Clip

$

$

Not available

AN

Simplicity 106687

Bracket

$

$

Not available

AP

Simplicity 2717525

Nut, Stop, 5/16"-18

$

$

Not available

AQ

Simplicity 2122005SM

Knob

$14.99

$

In Stock, only 1 left!

0

AR

Simplicity 2159134

Nylon Washer

$

$

Not available

AS

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

AT

Simplicity 2159129

Key

$

$

Not available

AU

Simplicity 2106761

Engine Pulley

$

$

Not available

AV

Simplicity 2106769

V-Belt

$

$

Not available

AW

Simplicity 2106707SM

Belt Stop

$

$

Not available

AX

Simplicity 106692

Deflector Clamp

$

$

Not available

AY

Simplicity 106789

Heat Deflector

$

$

Not available

AZ

Simplicity 106731

Spacer

$

$

Not available

BA

Simplicity 106730

Cover, Pulley

$

$

Not available

BB

Simplicity 106728

Clip, Pulley Cover

$

$

Not available

BC

Simplicity 2157127SM

Spring, Concial

$

$

Not available

BD

Simplicity 2717511

Hex. Full Lock Nut, 5/16"-18

$

$

Not available

BE

Simplicity 2715049

Set Screw

$

$

Not available
