990346 - Simplicity 46" Sickle Bar SICKLE GROUP Parts Diagram

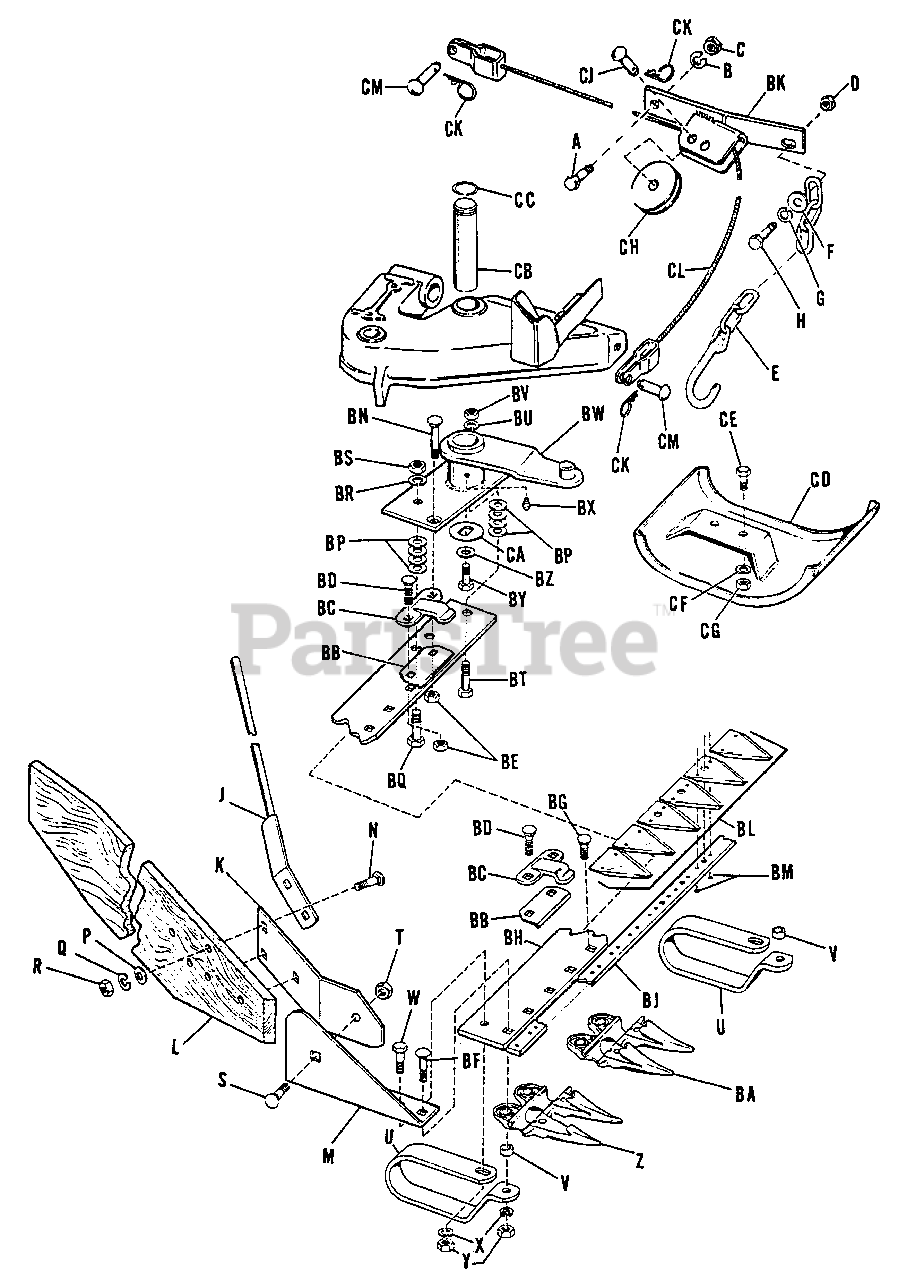

46" Sickle Bar

SICKLE GROUP Parts Diagram

  • Title

A

Simplicity 2705007

Capscrew, Hex Hd, 5/16"-18" NC x 1" lg.

$

$

Not available

B

Simplicity 2720001

Washer Lock 5/16" (For "725" Only-Rear)

$

$

Not available

C

Simplicity 2717001

Hex Nut Full 5/16"-18" NC (For "725" Only-Rear)

$

$

Not available

D

Simplicity 2715046

5/16"-18" NC x 1-1/4" lg. (Landlord Front)

$

$

Not available

E

Simplicity 101085

Chain Assembly, Transport

$

$

Not available

F

Simplicity 2719001

Washer, Plain

$

$

Not available

G

Simplicity 2720002

Washer, Lock, 3/8"

$

$

Not available

H

Simplicity 2705016

Capscrew, Hex Hd., 3/8"-16 NC x 1-1/4" lg. (For "725" Front)

$

$

Not available

J

Simplicity 101079

Divider Rod Assembly

$

$

Not available

K

Simplicity 101077

Support, Divider Board

$

$

Not available

L

Simplicity 101078

Board, Divider

$

$

Not available

M

Simplicity 101075

Bracket

$

$

Not available

N

Simplicity 2702005

Bolt, Carriage, 3/8"-16 NC x 1-1/2" lg.

$

$

Not available

P

Simplicity 2719001

Washer, Plain, 3/8"

$

$

Not available

Q

Simplicity 2720002

Lockwasher, 3/8"

$

$

Not available

R

Simplicity 2717003

Nut, Hex, Full, 3/8"-16 NC

$

$

Not available

S

Simplicity 2702002

Bolt, Carriage, 3/8"-16 NC x 1" lg.

$

$

Not available

T

Simplicity 2717504

Nut, Hex, Full, Elastic Stop Nut, 3/8"-16 NC

$

$

Not available

U

Simplicity 101076

Shoe

$

$

Not available

V

Simplicity 2153073

Spacer

$

$

Not available

W

Simplicity 2705016

Capscrew, Hex Hd., 3/8"-16 NC x 1-1/4" lg.

$

$

Not available

X

Simplicity 790002

Lockwasher, 3/8"

$

$

Not available

Y

Simplicity 2717003

Nut, Hex, Full, 3/8"-16 NC

$

$

Not available

Z

Simplicity 8161138

Guard, Right End

$

$

Not available

BA

Simplicity 8161135

Guard Twin

$

$

Not available

BB

Simplicity 8161136

Plate, Wear

$

$

Not available

BC

Simplicity 101071

Clip, Sickle

$

$

Not available

BD

Simplicity 2702004

Bolt, Carriage, 3/8"-16 NC x 1-1/4" lg.

$

$

Not available

BE

Simplicity 2717003

Nut, Hex, Full, 3/8"-16 NC

$

$

Not available

BF

Simplicity 702006

Bolt, Carriage, 3/8"-16 NC x 1-3/4" lg.

$

$

Not available

BG

Simplicity 2702002

Bolt, Carriage, 3/8"-16 NC x 1" lg.

$

$

Not available

BH

Simplicity 101070

Bar, Cutter

$

$

Not available

BJ

Simplicity 101072

Sickle Bar, Complete

$

$

Not available

BK

Simplicity 101112

Pulley Mounting Assy.

$

$

Not available

BL

Simplicity 101098

Complete Set of Sections

$

$

Not available

BM

Simplicity 724010

Rivet, Round Head, #6 x 1/2" lg.

$

$

Not available

BN

Simplicity 704001

Bolt, Plow, 3/89-16 NC x 1-3/4" lg.

$3.68

$

In Stock, Qty 20+

0

BP

Simplicity 2719001

Washer, Plain, 3/8"

$

$

Not available

BQ

Simplicity 2705009

Capscrew, Hex Hd., 3/8"-16 NC x 1-1/2" lg.

$

$

Not available

BR

Simplicity 2702002

Lockwasher, 3/8"

$

$

Not available

BS

Simplicity 2717003

Nut, Hex Full, 3/8"-16 NC

$

$

Not available

BT

Simplicity 705039

Capscrew, Hex Hd, 7/16"-14 NC x 1-1/2" lg.

$5.58

$

In Stock, Qty 7

0

BU

Simplicity 2720006

Washer, Lock, 7/16"

$

$

Not available

BV

Simplicity 2717022

Nut, Hex, Full, 7/16"-14 NC

$

$

Not available

BW

Simplicity 101043

Lever Assembly, Cutter Bar

$

$

Not available

BX

Simplicity 2727002

Fitting, Grease

$

$

Not available

BY

Simplicity 2705005

Capscrew, Hex Hd., 3/8"-16 NC x 1" lg.

$

$

Not available

BZ

Simplicity 2719001

Washer, Plain, 3/8"

$

$

Not available

CA

Simplicity 101049

Washer

$

$

Not available

CB

Simplicity 101031

Cutter Bar Shaft

$

$

Not available

CC

Simplicity 2154291SM

Ring, Retaining

$

$

Not available

CD

Simplicity 101066

Shoe Assembly

$

$

Not available

CE

Simplicity 2705005

Capscrew, Hex Hd., 3/8"-16 NC x 1" lg.

$

$

Not available

CF

Simplicity 2720002

Lockwasher, 3/8"

$

$

Not available

CG

Simplicity 2717003

Nut, Hex, Full, 3/8"-16 NC

$

$

Not available

CH

Simplicity 101115

Pulley

$

$

Not available

CJ

Simplicity 2102004SM

Pin Pivot

$7.93

$

Usually ships in 2-12 days

0

CK

Simplicity 1918196SM

Spring Clip
(Superseded to 5025210YP)

$3.34

$

In Stock, Qty 20+

0

CL

Simplicity 2101116

Cable Assy.

$

$

Not available

CM

Simplicity 1708298SM

Pin

$4.80

$

In Stock, Qty 8

0
