990348 - Simplicity Two-Speed Pulley Kit TWO-SPEED PULLEY Parts Diagram

Two-Speed Pulley Kit

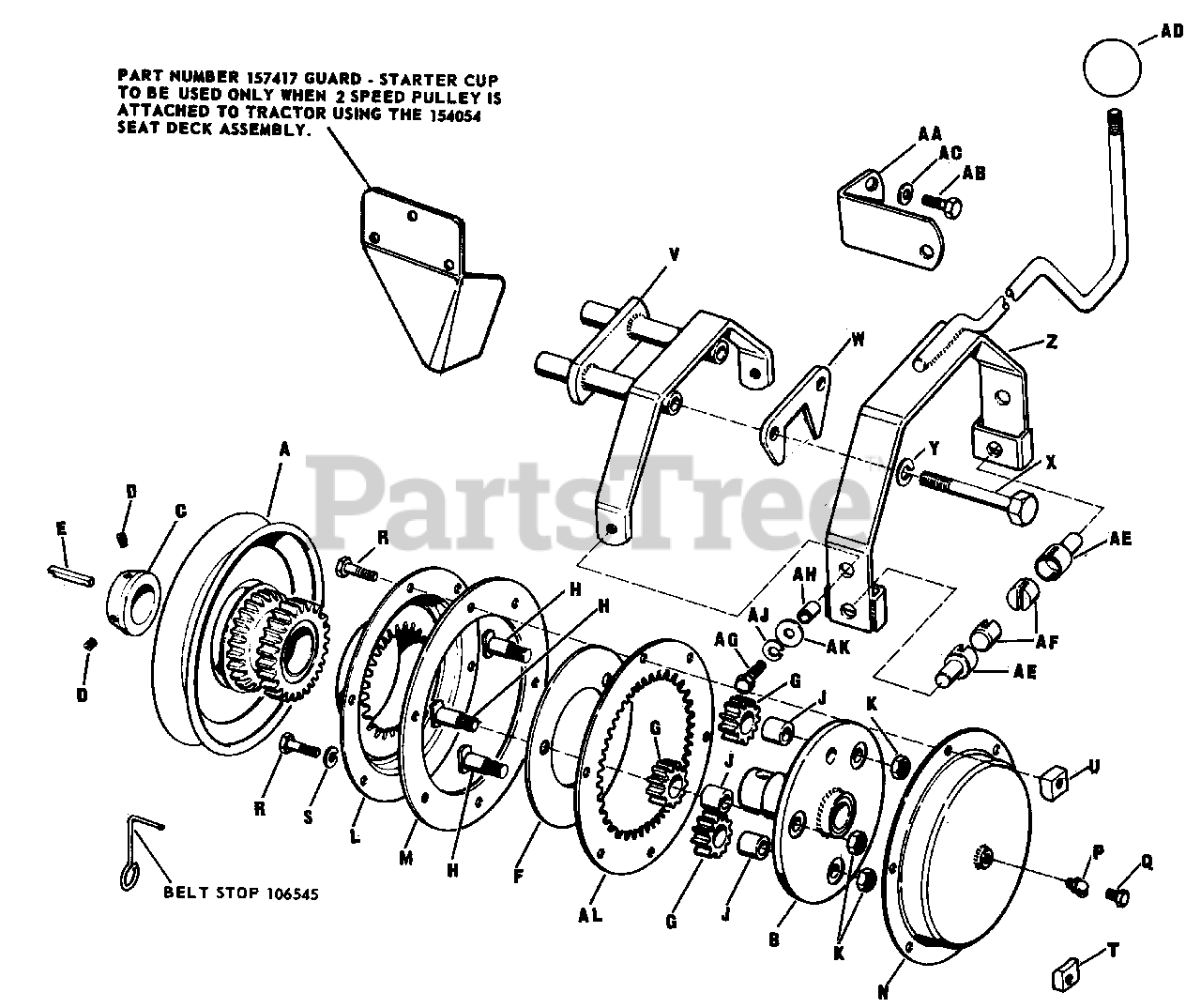

TWO-SPEED PULLEY Parts Diagram

  • Title

A

Simplicity 157322

Pulley & Gear Ass'y.

$

$

Not available

B

Simplicity 157327

Spider & Brg. Ass'y.

$

$

Not available

C

Simplicity 157331

Set Collar

$

$

Not available

D

Simplicity 2713504

Set Screw 5/16"-18 N.C. x 3/8"

$

$

Not available

E

Simplicity 2157332

Key

$

$

Not available

F

Simplicity 157333

Ring, Bolt

$

$

Not available

G

Simplicity 157335

Pinion

$

$

Not available

H

Simplicity 157336

Pin

$

$

Not available

J

Simplicity 157337

Needle Bearing

$

$

Not available

K

Simplicity 2717511

Full Lock Nut, Hex., 5/16"-18 N.C.

$

$

Not available

L

Simplicity 157338

Cover Ass'y. L.H.

$

$

Not available

M

Simplicity 157381

Shift Ring

$

$

Not available

N

Simplicity 157340

Cover Ass'y R.H.

$

$

Not available

P

Simplicity 2727004

Grease Fitting

$

$

Not available

Q

Simplicity 706005

Hex., Cap Screw 1/4"-28 N.F. x 1/2

$246.99

$

Usually ships in 2-12 days

0

R

Simplicity 2715071

Hex Cap Screw 5/16"-18 N.C. x 5/8"

$

$

Not available

S

Simplicity 2720001

Lock Washer 5/16"

$

$

Not available

T

Simplicity 157365

Special Nut

$

$

Not available

U

Simplicity 157366

Special Nut

$

$

Not available

V

Simplicity 157343

Support Ass'y, Shift

$

$

Not available

W

Simplicity 157364

Stop

$

$

Not available

X

Simplicity 157347

Bolt

$

$

Not available

Y

Simplicity 2720001

Lock Washer 5/16"

$

$

Not available

Z

Simplicity 157348

Fork Ass'y. Shift

$

$

Not available

AA

Simplicity 157352

Support, Shift Rod

$

$

Not available

AB

Simplicity 2705021

Hex. Cap Screw 1/4"-20 N.C. x 1"

$

$

Not available

AC

Simplicity 2720003

Lock Washer, 1/4"

$

$

Not available

AD

Simplicity 155044

Knob

$

$

Not available

AE

Simplicity 2157353SM

Pivot

$

$

Not available

AF

Simplicity 157354

Bearing, Pivot

$

$

Not available

AG

Simplicity 2705030

Hex. Cap Screw 1/4"-20 N.C. x 3/4"

$

$

Not available

AH

Simplicity 123045

Spacers

$

$

Not available

AJ

Simplicity 2720003

Lock Washer, 1/4"

$

$

Not available

AK

Simplicity 2719006

Washer Plain 1/4"

$

$

Not available

AL

Simplicity 157382

Gear Ring.

$

$

Not available
