990358 - Simplicity 24" Mower Deck Belts & Pulleys Group Parts Diagram

24" Mower Deck

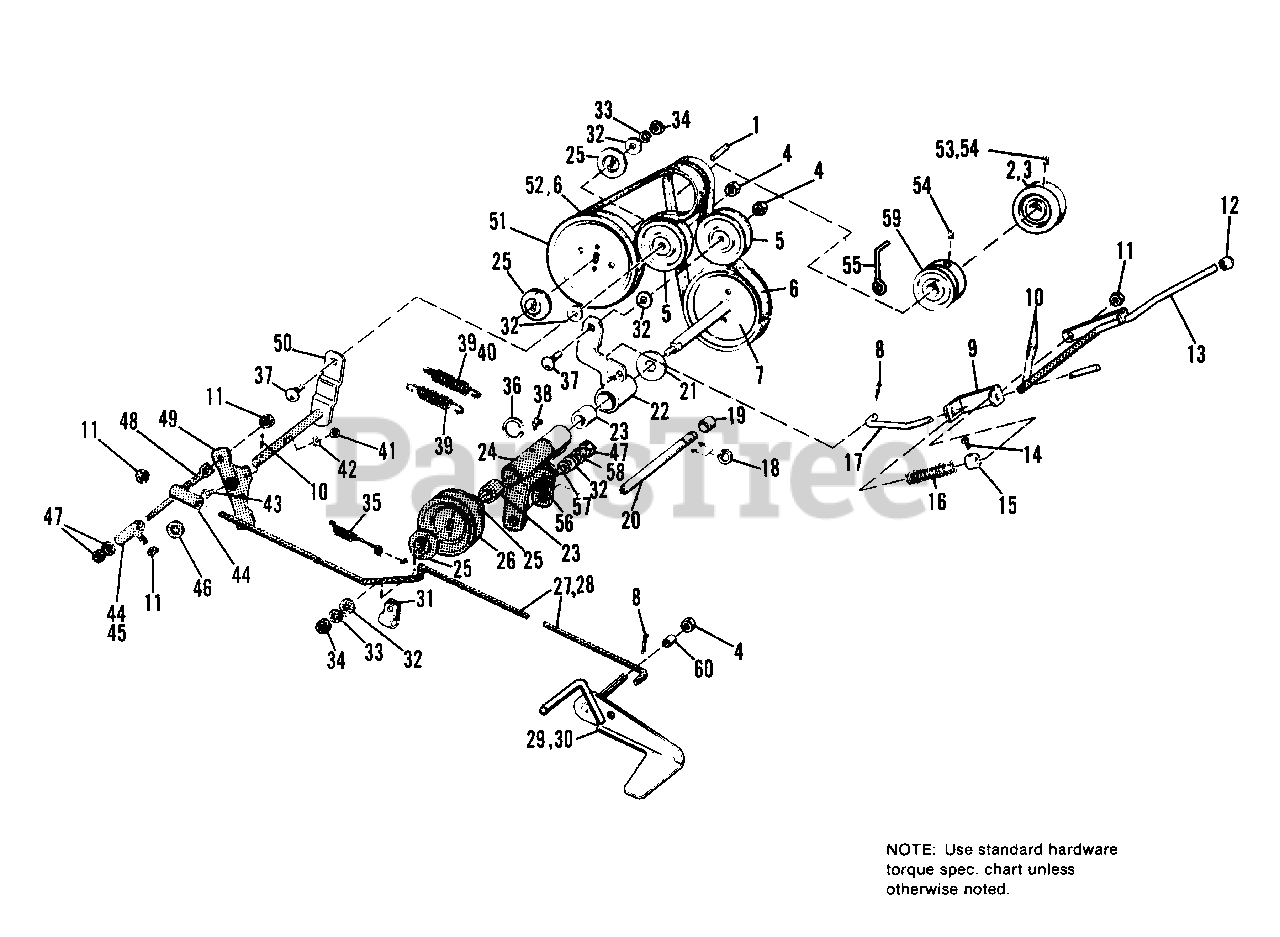

Belts & Pulleys Group Parts Diagram

  • Title

1

Simplicity 1729279SM

KEY
(Superseded to 703889)

$4.49

$

In Stock, Qty 5

0

2

Simplicity 103083

PULLEY, Engine

Note: Used on Mfg. No. 990375.

$

$

Not available

3

Simplicity 118331

PULLEY, Engine

Note: Used on Mfg. No. 990391.

$

$

Not available

4

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

5

Simplicity 2154534SM

PULLEY, Idler

$32.99

$

In Stock, only 2 left!

0

6

Simplicity 2158389

BELT, V (Qty. 1 used on 990357 Only)

Note: Used on Mfg. No. 990391.

$

$

Not available

7

Simplicity 158390

PULLEY & SHAFT ASSY.

$

$

Not available

8

Simplicity 2818447

PIN, Cotter, 3/32 x 3/4

$

$

Not available

9

Simplicity 2158406

GUIDE ASSY., Rod

$

$

Not available

10

Simplicity 2818452

PIN, Cotter, 1/8 x 1

$

$

Not available

11

Simplicity 2823362

LOCKNUT, Hex, 5/16-18

$

$

Not available

12

Simplicity 158437

KNOB

$

$

Not available

13

Simplicity 158408

HANDLE ASSY., PTO Control

$

$

Not available

14

Simplicity 2828804

SETSCREW, 1/4-20 x 3/8

$

$

Not available

15

Simplicity 1729276SM

COLLAR, Set

$

$

Not available

16

Simplicity 1729277SM

SPRING

$6.99

$

Usually ships in 2-12 days

0

17

Simplicity 158405

ROD, Clutch, PTO

$

$

Not available

18

Simplicity 2158399SM

RING, Retaining
(Superseded to 703976)

$4.49

$

In Stock, Qty 20+

0

19

Simplicity 158398

SPACER

$

$

Not available

20

Simplicity 158397

SHAFT, Pivot

$

$

Not available

21

Simplicity 119018

WASHER

$

$

Not available

22

Simplicity 158461

LEVER ASSY., Idler

$

$

Not available

23

Simplicity 2108054

BEARING, Needle

$

$

Not available

24

Simplicity 158393

HOUSING ASSY.

$

$

Not available

25

Simplicity 2158378SM

WASHER, Special

$

$

Not available

26

Simplicity 2158400

PULLEY, Mower Drive

$

$

Not available

27

Simplicity 158477

ROD, Clutch

Note: Used on Mfg. No. 990375.

$

$

Not available

28

Simplicity 158497

ROD, Clutch

Note: Used on Mfg. No. 990391.

$

$

Not available

29

Simplicity 158386

PEDAL ASSY., Foot

Note: Used on Mfg. No. 990375.

$

$

Not available

30

Simplicity 158494

PEDAL ASSY., Foot

Note: Used on Mfg. No. 990391.

$

$

Not available

31

Simplicity 158476

CLIP

$

$

Not available

32

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

33

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

34

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 11

0

35

Simplicity 158385

SPRING, Clutch Rod

$

$

Not available

36

Simplicity 158396

RING, Retaining

$

$

Not available

37

Simplicity 2822249

BOLT, Carriage, 3/8-16 x 1

$

$

Not available

38

Simplicity 2815019SM

FITTING, Grease

$4.49

$

In Stock, only 2 left!

0

39

Simplicity 2156302

SPRING (Qty. 1 used on 990391 Only)
(Superseded to 2156302SM)

$6.49

$

In Stock, Qty 11

0

40

Simplicity 2154369SM

SPRING

Note: Used on Mfg. No. 990391.

$17.99

$

In Stock, only 1 left!

0

41

Simplicity 2816622SM

NUT, Hex, Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

42

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

43

Simplicity 2828745

CAPSCREW, Hex Hd., 1/4-20 x 1-1/4

$

$

Not available

44

Simplicity 156303

GUIDE ASSY., Rod (Qty. 1 used on 990391 Only)

$

$

Not available

45

Simplicity 2164094SM

GUIDE ASSY., Rod

Note: Used on Mfg. No. 990391.

$45.99

$

Usually ships in 2-12 days

0

46

Simplicity 2818430

WASHER, Plain, 7/16

$

$

Not available

47

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18 (Qty. 2 used on 990357 Only)
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

48

Simplicity 158383

ROD, Brake

$

$

Not available

49

Simplicity 158382

LEVER

$

$

Not available

50

Simplicity 158463

ARM ASSY., Idler Pulley

$

$

Not available

51

Simplicity 2158377SM

PULLEY, Transmission

$

$

Not available

52

Simplicity 2158460

BELT, V

Note: Used on Mfg. No. 990375.

$

$

Not available

53

Simplicity 2830543

SETSCREW, 5/16-18 x 1/2

Note: Used on Mfg. No. 990375.

$

$

Not available

54

Simplicity 2828691

SETSCREW, 5/16-18 x 5/16

Note: Used on Mfg. No. 990391.

$

$

Not available

55

Simplicity 2158499SM

STOP, Belt

Note: Used on Mfg. No. 990391.

$5.49

$

Usually ships in 2-12 days

0

56

Simplicity 2823325

CAPSCREW, Hex Hd., 5/16-18 x 7/8

$

$

Not available

57

Simplicity 8021014

STOP, Belt

Note: Used on Mfg. No. 990391.

$

$

Not available

58

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

Note: Used on Mfg. No. 990391.

$3.49

$

In Stock, Qty 20+

0

59

Simplicity 158498

PULLEY, Half

$

$

Not available

60

Simplicity 2158388

SPACER

$

$

Not available
