990370 - Simplicity Weed Cutter ARBOR, BLADE, AND BELTS Parts Diagram

Weed Cutter

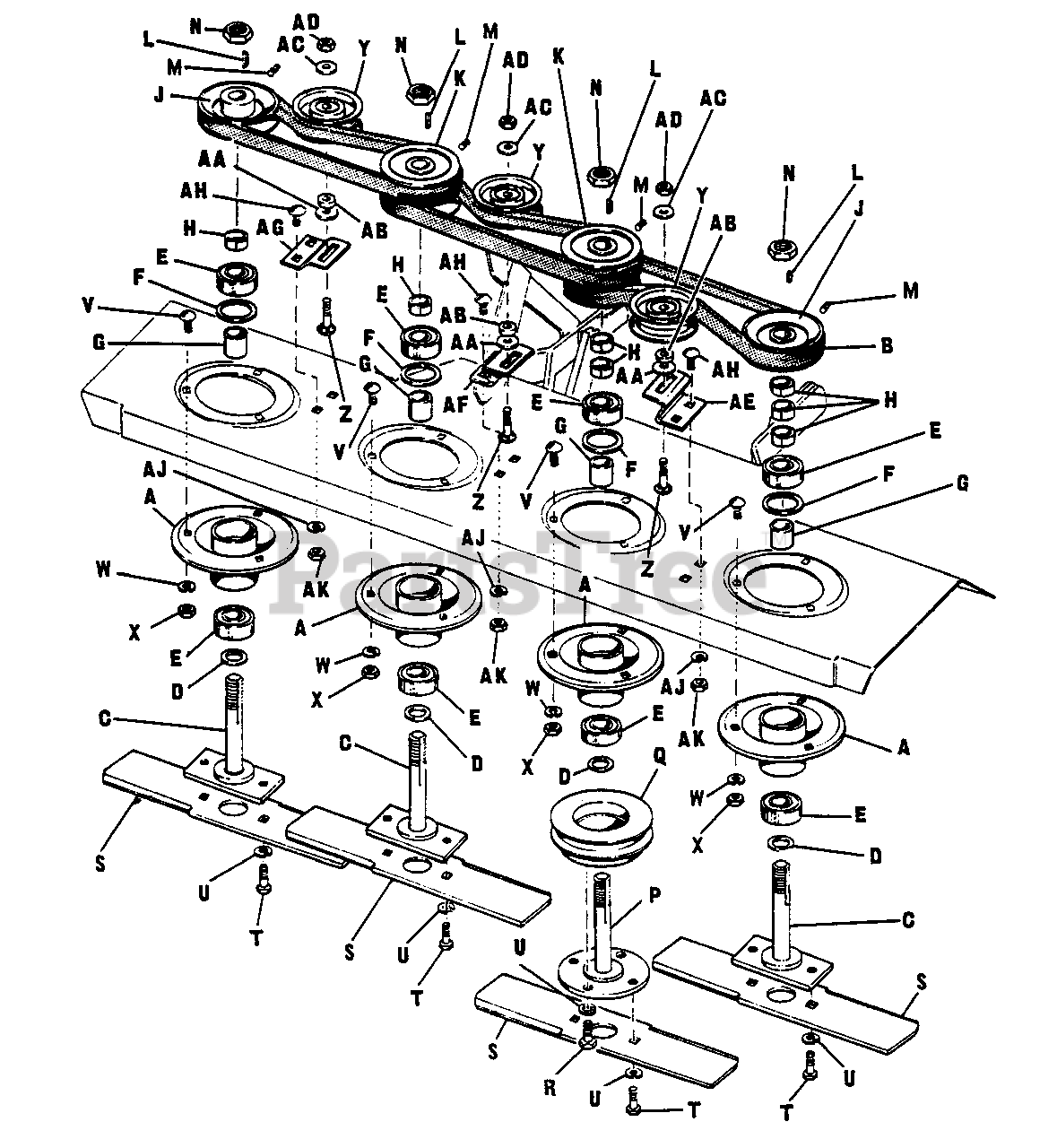

ARBOR, BLADE, AND BELTS Parts Diagram

  • Title

A

Simplicity 124010

Arbor Tube Assembly

$

$

Not available

B

Simplicity 124025

"V" Belt

$

$

Not available

C

Simplicity 124013

Arbor Assembly

$

$

Not available

D

Simplicity 2108181

Washer

$

$

Not available

E

Simplicity 2108202SM

Bearing

$11.99

$

In Stock, Qty 20+

0

F

Simplicity 2108257SM

Washer

$6.99

$

In Stock, only 2 left!

0

G

Simplicity 108371

Spacer

$

$

Not available

H

Simplicity 124044

Spacer

$

$

Not available

J

Simplicity 124016

Pulley

$

$

Not available

K

Simplicity 124017

Double Pulley

$

$

Not available

L

Simplicity 8111037

Key

$

$

Not available

M

Simplicity 2713504

Set Screw, 5/16"-18 x 3/8"

$

$

Not available

N

Simplicity 2717517

Jam Hex. Nut, 3/4"-16

$

$

Not available

P

Simplicity 124018

Arbor Assembly

$

$

Not available

Q

Simplicity 124020

Arbor Drive Pulley

$

$

Not available

R

Simplicity 2715074

Hex Cap Screw, 3/8"-16 x 7/8"

$

$

Not available

S

Simplicity 124021

Knife Blade

$

$

Not available

T

Simplicity 2715024

Hex. Cap Screw, 3/8"-16 x 5/8"

$

$

Not available

U

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

V

Simplicity 2703004

Carriage Bolt, 3/8"-16 x 3/4"

$

$

Not available

W

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

X

Simplicity 2717003

Full Hex. Nut, 3/8"-16

$

$

Not available

Y

Simplicity 2154534SM

Idler Pulley

$32.99

$

In Stock, only 2 left!

0

Z

Simplicity 703006

Carriage Bolt, 3/8"-16 x 1-1/2"

$651.99

$

Usually ships in 2-12 days

0

AA

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

AB

Simplicity 2153073

Spacer

$

$

Not available

AC

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

AD

Simplicity 2717510

Full Lock Hex. Nut, 3/8"-16

$

$

Not available

AE

Simplicity 124022

Idler Support, L.H.

$

$

Not available

AF

Simplicity 124023

Idler Support

$

$

Not available

AG

Simplicity 124024

Idler Support, R.H.

$

$

Not available

AH

Simplicity 2703005

Carriage Bolt, 5/16"-18 x 3/4"

$

$

Not available

AJ

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

AK

Simplicity 2717001

Full Hex. Nut, 5/16"-18

$

$

Not available
