990372 - Simplicity Sno-Away 26" Snow Thrower, 7hp Spout Group Parts Diagram

Sno-Away 26" Snow Thrower, 7hp

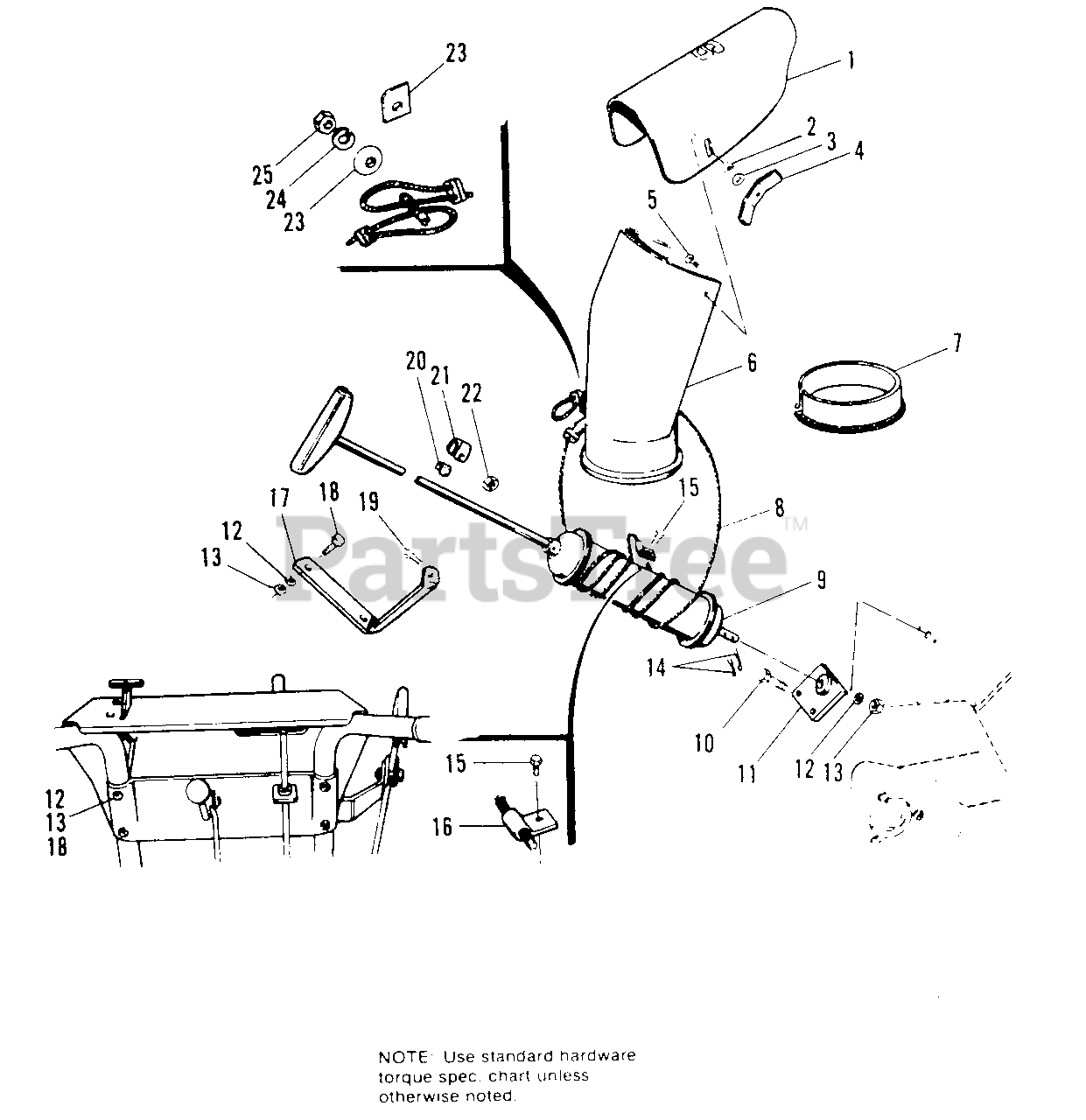

Spout Group Parts Diagram

  • Title

1

Simplicity 1064-89

EXTENSION, Spout

$

$

Not available

2

Simplicity 2828710

LOCKWASHER, Pyramdial Type, 3/8

$

$

Not available

3

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

4

Simplicity 2106229

NUT, Wing, 5/16-18

$

$

Not available

5

Simplicity 2820562

BOLT, Carriage, 5/16-18 x 3/4

$

$

Not available

6

Simplicity 161099

SPOUT ASSY.

$

$

Not available

7

Simplicity 1612-81

LINER (990430 & 990560 Only)

$

$

Not available

8

Simplicity 161133

CABLE ASSY. (990430 & 990560 Only)

$

$

Not available

8

Simplicity 161118

CORD, Spout

$

$

Not available

9

Simplicity 176073

TUBE ASSY., Spout Control

$

$

Not available

10

Simplicity 2821959

CAPSCREW, Hex Hd., 1/4-20 x 5/8

$

$

Not available

11

Simplicity 1065-51

BEARING

$

$

Not available

12

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 5025169FS)

$4.49

$

In Stock, Qty 18

0

13

Simplicity 2816622SM

NUT, Hex, Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 17

0

14

Simplicity 2818451

PIN, Cotter, 1/8 x 3/4

$

$

Not available

15

Simplicity 2827428

SCREW, Taptite, 1/4-20 x 3/8

$

$

Not available

16

Simplicity 154247

CLAMP

$

$

Not available

17

Simplicity 161101

SUPPORT, Spout Adjusting Rod

$

$

Not available

18

Simplicity 2819316

CAPSCREW, Hex Hd., 1/4-20 x 1-3/4

$

$

Not available

19

Simplicity 2821977

CAPSCREW, Hex Hd., 5/16-18 x 1-1/4

$

$

Not available

20

Simplicity 2121175SM

LINER

$8.49

$

Usually ships in 2-12 days

0

21

Simplicity 2152050SM

GUIDE, Rod (990430 & 990560 Only)

$10.99

$

Usually ships in 2-12 days

0

21

Simplicity 106221

GUIDE, Rod (990372 Only)

$

$

Not available

22

Simplicity 2823362

LOCKNUT, Hex, 5/16-18

$

$

Not available

23

Simplicity 2106785

WASHER, Cup (990430 & 990560 Only)

$

$

Not available

23

Simplicity 161114

PLATE, Friction (990372 Only)

$

$

Not available

24

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 5025170SM)

$4.49

$

In Stock, only 2 left!

0

25

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, only 4 left!

0
