990398 - Simplicity Cultivator Attachment CULTIVATOR Parts Diagram

Cultivator Attachment

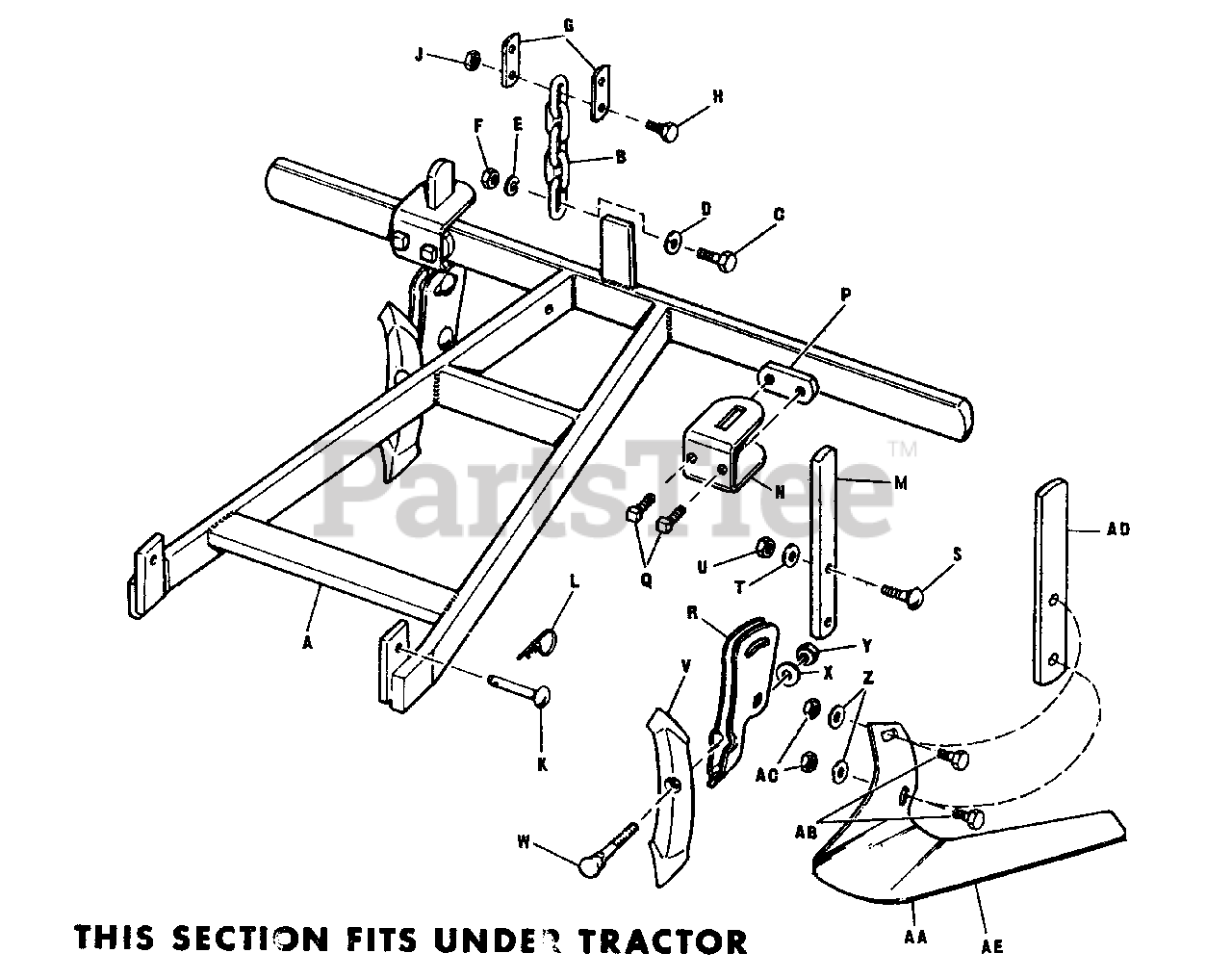

CULTIVATOR Parts Diagram

  • Title

A

Simplicity 117026

Front Bar Tool Assembly

$

$

Not available

B

Simplicity 2107031SM

Chain
(Superseded to 2107031ASM)

$7.49

$

Usually ships in 2-12 days

0

C

Simplicity 2705016

Hex. Hd Cap Screw, 3/8"-16 x 1-1/4

$

$

Not available

D

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

E

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

F

Simplicity 2717003

Full Hex. Nut, 3/8"-16

$

$

Not available

G

Simplicity 108199

Link, 1/8" x 1 x 2-1/2"

$

$

Not available

H

Simplicity 2705005

Hex. Hd. Cap Screw, 3/8"-16 x 1"

$

$

Not available

J

Simplicity 2717510

Hex. Full Lock Nut, 3/8"-16

$

$

Not available

K

Simplicity 2118053SM

Pin
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

L

Simplicity 1918196SM

Spring Clip
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

M

Simplicity 8271018

Short Standard Tool, 7/16" x 1-1/4" x 8-5/8"

$

$

Not available

N

Simplicity 8271023

Clamp Shank, 3/16" x 2" x 8"

$

$

Not available

P

Simplicity 8201073

Special Nut, 5/16" x 1" x 2-1/2"

$

$

Not available

Q

Simplicity 2713004

Set Screw, 3/8"-16 x 1"

$

$

Not available

R

Simplicity 8271503

Tool Holder Assembly

$

$

Not available

S

Simplicity 2703002

Carriage Bolt, 3/8"-16 x 1-1/4"

$

$

Not available

T

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

U

Simplicity 2717003

Full Hex. Nut, 3/8"-16

$

$

Not available

V

Simplicity 117033

Cultivator Teeth, 1/4" x 1-1/2" x 9"

$

$

Not available

W

Simplicity 704001

Plow Bolt, 3/8"-16 x 1-3/4"

$4.49

$

In Stock, only 2 left!

0

X

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

Y

Simplicity 2717003

Full Hex. Nut, 3/8"-16

$

$

Not available

Z

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

AA

Simplicity 117035

Hoe, R.H.

$

$

Not available

AB

Simplicity 2705005

Hex. Hd. Cap Screw, 3/8"-16 x 1 "

$

$

Not available

AC

Simplicity 2717003

Full Hex. Nut, 3/8"-16

$

$

Not available

AD

Simplicity 117034

Tool Standard

$

$

Not available

AE

Simplicity 117051

Hoe, L.H.

$

$

Not available
