990407 - Simplicity 42" Mower Deck ARBOR ASSEMBLIES Parts Diagram

42" Mower Deck

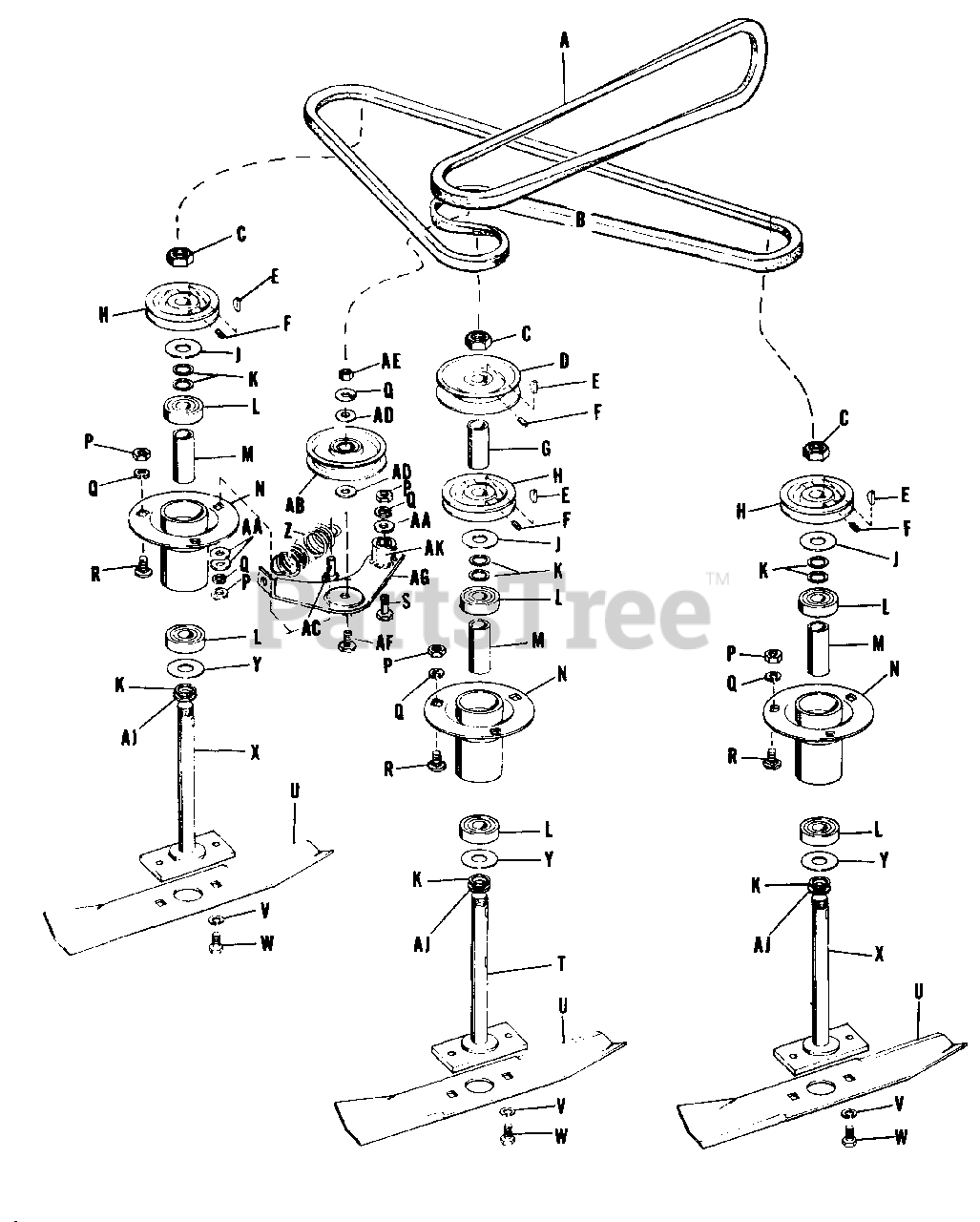

ARBOR ASSEMBLIES Parts Diagram

  • Title

A

Simplicity 2108099

Belt, "V" (Cross Drive)

$

$

Not available

B

Simplicity 2108209

Belt, "V" (Mower Spindle Drive)

$

$

Not available

C

Simplicity 2717517

Hex. Jam Lock Nut, 3/4"-16

$

$

Not available

D

Simplicity 2108207SM

Cross Drive Pulley

$174.99

$

Usually ships in 2-12 days

0

E

Simplicity 2725006

Key, Woodruff, #61

$

$

Not available

F

Simplicity 2713504

Set Screw, 5/16"-18 x 3/8"

$

$

Not available

G

Simplicity 2108245SM

Spacer

$15.99

$

Usually ships in 2-12 days

0

H

Simplicity 2108142

Pulley

$

$

Not available

J

Simplicity 2108139

Flinger

$

$

Not available

K

Simplicity 2108181

Washer

$

$

Not available

L

Simplicity 2108202SM

Bearing

$11.99

$

In Stock, Qty 20+

0

M

Simplicity 1108201

Spacer

$

$

Not available

N

Simplicity 2108203

Arbor Tube Assembly

$

$

Not available

P

Simplicity 2717003

Full Hex. Nut. 3/8"-16

$

$

Not available

Q

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

R

Simplicity 2703004

Carriage Bolt, 3/8"-16 x 3/4"

$

$

Not available

S

Simplicity 2705010

Hex. Cap Screw 3/8-16 x 1-3/4" lg.

$

$

Not available

T

Simplicity 2108252SM

Arbor Drive Assembly

$224.99

$

In Stock, only 1 left!

0

U

Simplicity 2108298

Knife Blade

$

$

Not available

V

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

W

Simplicity 2715024

Hex. Hd. Capscrew, 3/8"-16 x 5/8"

$

$

Not available

X

Simplicity 2108250SM

Arbor Assembly

$167.99

$

In Stock, only 4 left!

0

Y

Simplicity 2108257SM

Washer

$6.99

$

In Stock, Qty 12

0

Z

Simplicity 2154369SM

Spring

$18.99

$

In Stock, only 3 left!

0

AA

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

AB

Simplicity 2108386SM

Idler Pulley

$

$

Not available

AC

Simplicity 2156131SM

Stud

$

$

Not available

AD

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

AE

Simplicity 2717003

Full Lock Hex. Nut, 3/8"-16

$

$

Not available

AF

Simplicity 2108418

Screw

$

$

Not available

AG

Simplicity 2108416SM

Idler Lever Assembly
(Superseded to 2108416ASM)

$86.99

$

Usually ships in 2-12 days

0

AJ

Simplicity 2108472

Washer

$

$

Not available

AK

Simplicity 1729274SM

Race

$

$

Not available
