990408 - Simplicity Spring Tooth Cultivator SPRING TOOTH CULTIVATOR Parts Diagram

Spring Tooth Cultivator

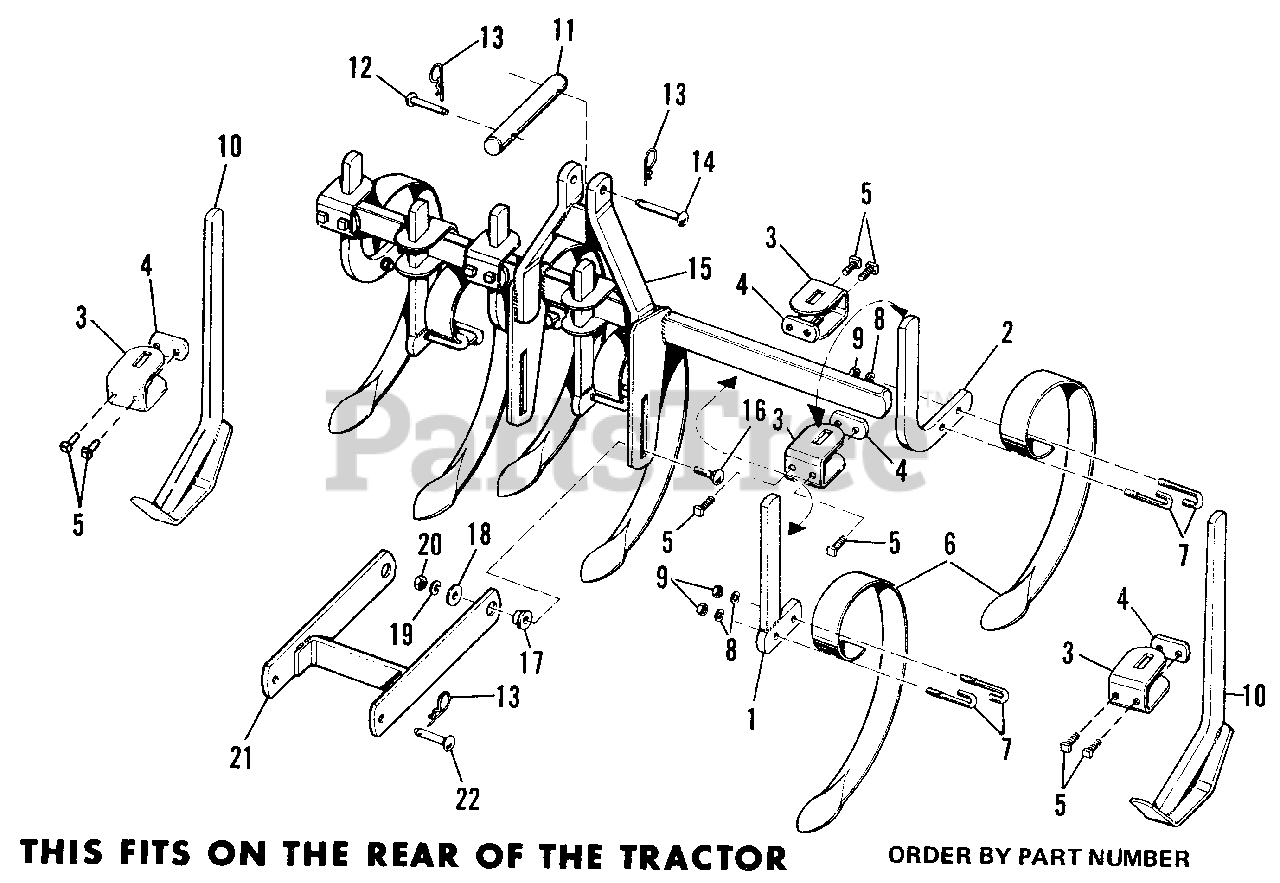

SPRING TOOTH CULTIVATOR Parts Diagram

  • Title

1

Simplicity 117046

Straight Standard Assembly

$

$

Not available

2

Simplicity 117045

Standard Adjusting x 14"

$

$

Not available

3

Simplicity 8271023

Shank Clamp

$

$

Not available

4

Simplicity 8201073

Special Nut

$

$

Not available

5

Simplicity 2713004

Set Screw

$

$

Not available

6

Simplicity 117048

Spring Tooth

$

$

Not available

7

Simplicity 117047

Spring Tooth Bolt

$

$

Not available

8

Simplicity 2720002

Lockwasher

$

$

Not available

9

Simplicity 2717003

Full Hex Nut

$

$

Not available

10

Simplicity 117041

Shoe Weld Assembly

$

$

Not available

11

Simplicity 117015

Attaching Rod

$

$

Not available

12

Simplicity 2118053SM

Pin
(Superseded to 704241)

$9.99

$

Usually ships in 2-12 days

0

13

Simplicity 1918196SM

Spring Clip
(Superseded to 5025210YP)

$3.99

$

In Stock, only 3 left!

0

14

Simplicity 2105249SM

Pin

$16.99

$

Usually ships in 2-12 days

0

15

Simplicity 117016

Rear Tool Bar Assembly

$

$

Not available

16

Simplicity 702019

Carriage Bolt

$52.99

$

Usually ships in 2-12 days

0

17

Simplicity 117022

Spacer

$

$

Not available

18

Simplicity 2719001

Washer

$

$

Not available

19

Simplicity 2720006

Lockwasher

$

$

Not available

20

Simplicity 2717022

Full Hex Nut

$

$

Not available

21

Simplicity 117023

Arm Assembly

$

$

Not available

22

Simplicity 2155037SM

Round Head Pin

$12.99

$

In Stock, only 1 left!

0
