990409 - Simplicity Tine Extension TINE EXTENTION KIT Parts Diagram

Tine Extension

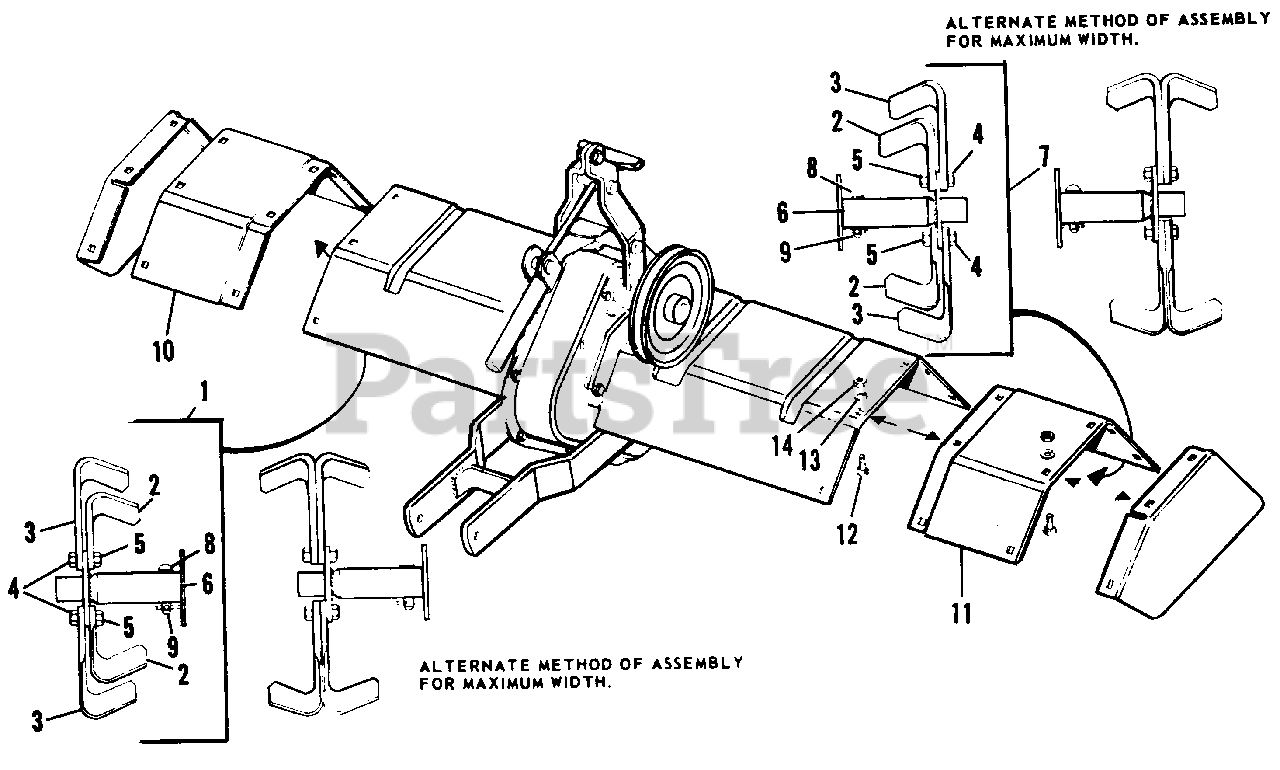

TINE EXTENTION KIT Parts Diagram

  • Title

1

Simplicity 105222

Blade Assembly, L.H.

$

$

Not available

2

Simplicity 1729271SM

Blade, L.H. Tine

$

$

Not available

3

Simplicity 1729272SM

Blade, R.H. Tine

$28.99

$

Usually ships in 2-12 days

0

4

Simplicity 706009

Hex. Capscrew, 7/16"-20 x 1-1/4"

$204.99

$

Usually ships in 2-12 days

0

5

Simplicity 2717512

Full Lock Nut,7/16"-20

$

$

Not available

6

Simplicity 105221

Plate Assy. Tine Extension

$

$

Not available

7

Simplicity 105223

Blade Assembly, R.H.

$

$

Not available

8

Simplicity 2118053SM

Tine Shaft Pin
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

9

Simplicity 1918196SM

Spring Clip
(Superseded to 5025210YP)

$3.99

$

In Stock, only 2 left!

0

10

Simplicity 105275

Deflector Extension, R.H.

$

$

Not available

11

Simplicity 105276

Deflector Extension, L.H.

$

$

Not available

12

Simplicity 703011

Carriage Bolt, 5/16"-18 x 1/2"

$7.99

$

Usually ships in 2-12 days

0

13

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

14

Simplicity 2717001

Full Hex. Nut, 5/16"-18

$

$

Not available
