990412 - Simplicity Loader, Front End Cylinder Group - Bucket (3646I02) Parts Diagram

Loader, Front End

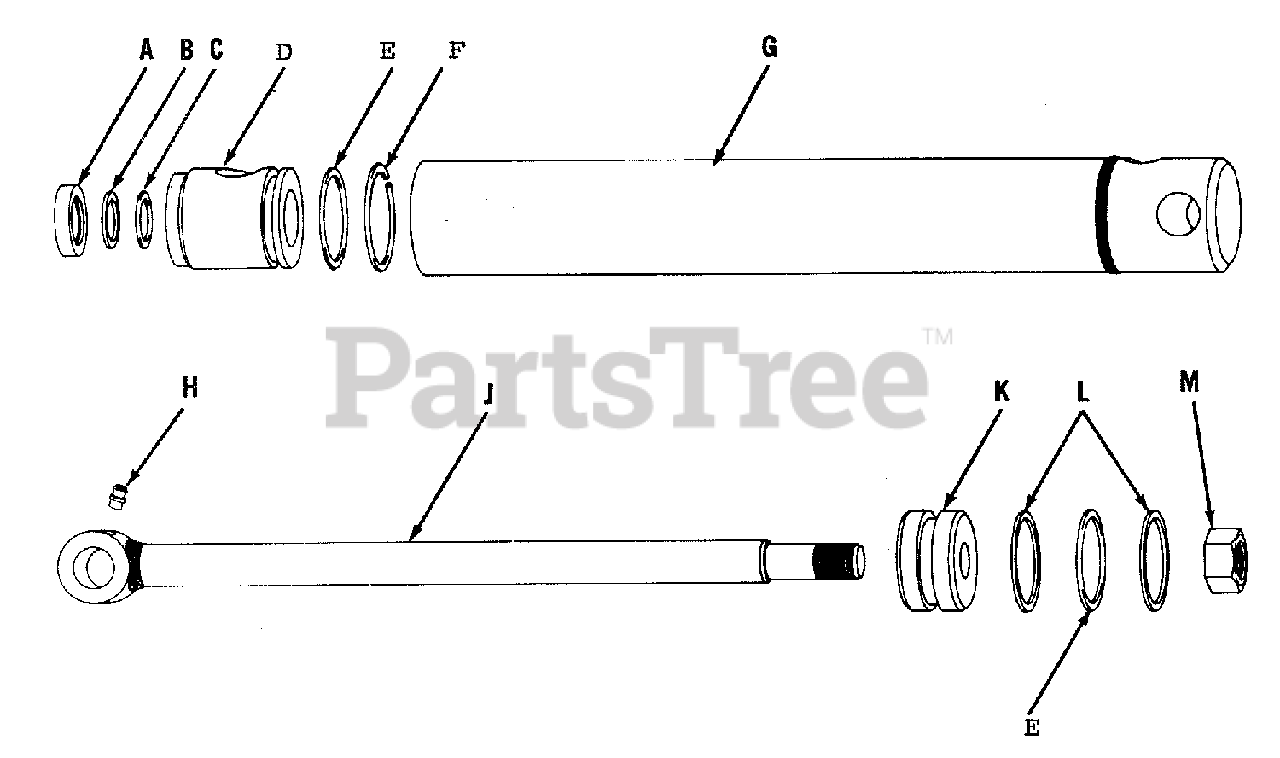

Cylinder Group - Bucket (3646I02) Parts Diagram

  • Title

A

Simplicity 125042

WIPER, Ring

$

$

Not available

B

Simplicity 125041

WASHER, Back-up

$

$

Not available

C

Simplicity 125080

RING, "O"

$

$

Not available

D

Simplicity 125038

HEAD, Cylinder

$

$

Not available

E

Simplicity 125081

RING, "O"

$

$

Not available

F

Simplicity 125039

RING, Retaining

$

$

Not available

G

Simplicity 125035

TUBE ASSEMBLY, Cylinder

$

$

Not available

H

Simplicity 727008

FITTING, Grease

$

$

Not available

J

Simplicity 125036

ROD ASSEMBLY, Piston

$

$

Not available

K

Simplicity 125037

PISTON

$

$

Not available

L

Simplicity 125040

WASHER, Back-up

$

$

Not available

M

Simplicity 717527

NUT, Hex, Full Lock, 5/8"-18 NF

$

$

Not available

N

Simplicity 125101

MAJOR SEAL REPAIR KIT

$

$

Not available
