990412 - Simplicity Loader, Front End Hydraulics Group (3646I01) Parts Diagram

Loader, Front End

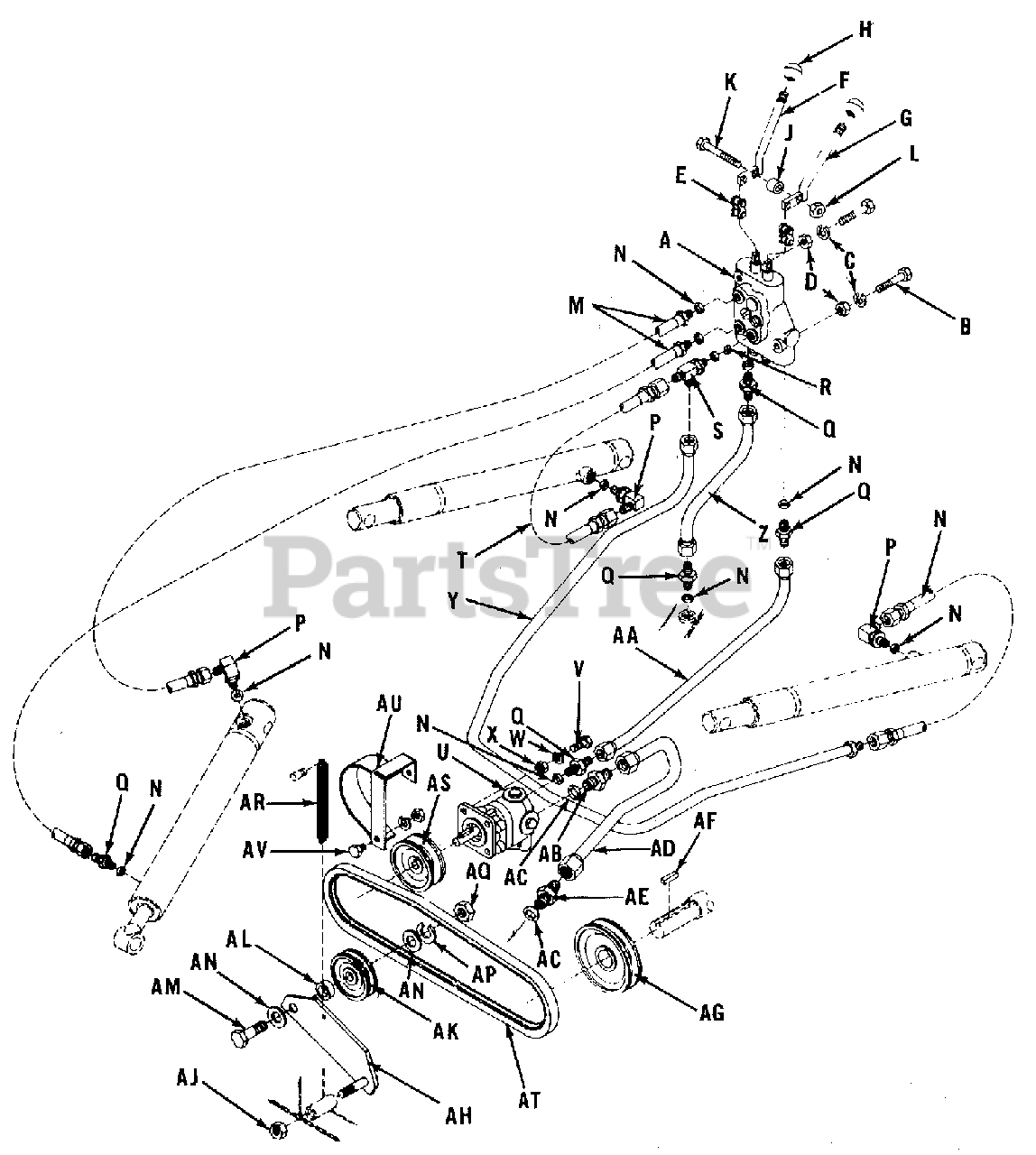

Hydraulics Group (3646I01) Parts Diagram

  • Title

A

Simplicity 125008

CONTROL VALVE ASSEMBLY

$

$

Not available

B

Simplicity 705062

CAPSCREW, Hex, 1/4"-20 NC x 2"

$41.99

$

Usually ships in 2-12 days

0

C

Simplicity 2720003

WASHER, Lock, 1/4"

$

$

Not available

D

Simplicity 2717005

NUT, Hex, Full, 1/4"-20 NC

$

$

Not available

E

Simplicity 125031

LINK, Chain

$

$

Not available

F

Simplicity 125021

HANDLE, Bucket

$

$

Not available

G

Simplicity 125022

HANDLE, Lift

$

$

Not available

H

Simplicity 125011

KNOB, Control Handle

$

$

Not available

J

Simplicity 125024

SPACER

$

$

Not available

K

Simplicity 706019

CAPSCREW, Hex, 1/4"-28 NF x 2-3/4"

$3299.99

$

Usually ships in 2-12 days

0

L

Simplicity 717526

NUT, Hex, Full Lock, 1/4"-28 NF

$

$

Not available

M

Simplicity 125019

HOSE ASSEMBLY

$

$

Not available

N

Simplicity 125103

RING, "O"

$

$

Not available

P

Simplicity 125079

CONNECTOR, 90 Degree Elbow

$

$

Not available

Q

Simplicity 125078

CONNECTOR, Straight

$

$

Not available

R

Simplicity 125012

RESTRICER, Orifice Plate

$

$

Not available

S

Simplicity 125016

CONNECTOR, Run Tee

$

$

Not available

T

Simplicity 125018

HOSE ASSEMBLY

$

$

Not available

U

Simplicity 125009

PUMP ASSEMBLY

$

$

Not available

V

Simplicity 2705007

CAPSCREW, Hex, 5/16"-18 NC x 1"

$

$

Not available

W

Simplicity 2720001

WASHER, Lock, 5/16"

$

$

Not available

X

Simplicity 2717001

NUT, Hex, Full, 5/16"-18 NC

$

$

Not available

Y

Simplicity 125017

TUBE ASSEMBLY, Lift

$

$

Not available

Z

Simplicity 125015

TUBE ASSEMBLY, Return

$

$

Not available

AA

Simplicity 125014

TUBE ASSEMBLY, Pressure

$

$

Not available

AB

Simplicity 125077

CONNECTOR, Straight

$

$

Not available

AC

Simplicity 125104

RING, "O"

$

$

Not available

AD

Simplicity 125013

TUBE ASSEMBLY, Suction

$

$

Not available

AE

Simplicity 125034

CONNECTOR, Filter

$

$

Not available

AF

Simplicity 125088

KEY

$

$

Not available

AG

Simplicity 125067

PULLEY

$

$

Not available

AH

Simplicity 125025

LEVER ASSEMBLY, Idler

$

$

Not available

AJ

Simplicity 2717515

NUT, Hex, Full Lock, 3/8"-24 NF

$

$

Not available

AK

Simplicity 125105

PULLEY, Idler

$

$

Not available

AL

Simplicity 125023

SPACER

$

$

Not available

AM

Simplicity 2705035

CAPSCREW, Hex, 1/2"-13 NC x 2"

$

$

Not available

AN

Simplicity 2719004

WASHER, Plain, 1/2" Standard

$

$

Not available

AP

Simplicity 2720004

WASHER, Lock, 1/2"

$

$

Not available

AQ

Simplicity 2717006

NUT, Hex, Full, 1/2"-13 NC

$

$

Not available

AR

Simplicity 125112

SPRING, Tension

$

$

Not available

AS

Simplicity 125010

PULLEY

$

$

Not available

AT

Simplicity 125068

BELT, "V"

$

$

Not available

AU

Simplicity 125026

SHIELD

$

$

Not available

AV

Simplicity 2705002

CAPSCREW, Hex, 1/4"-20 NC x 1/2"

$

$

Not available

AW

Simplicity 2720003

WASHER, Lock, 1/4"

$

$

Not available

AX

Simplicity 2717005

NUT, Hex, Full, 1/4"-20 NC

$

$

Not available
